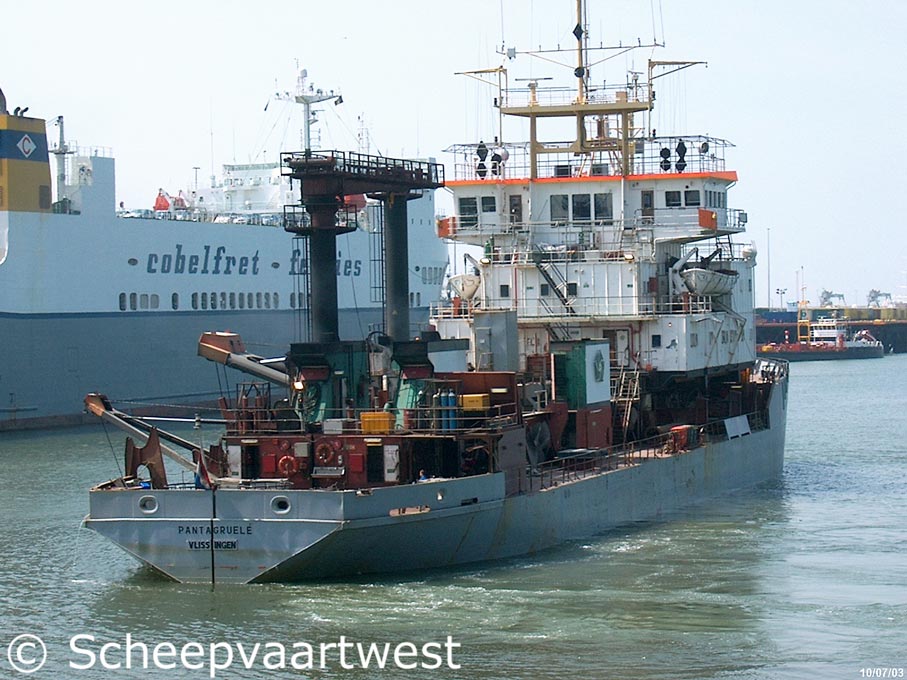

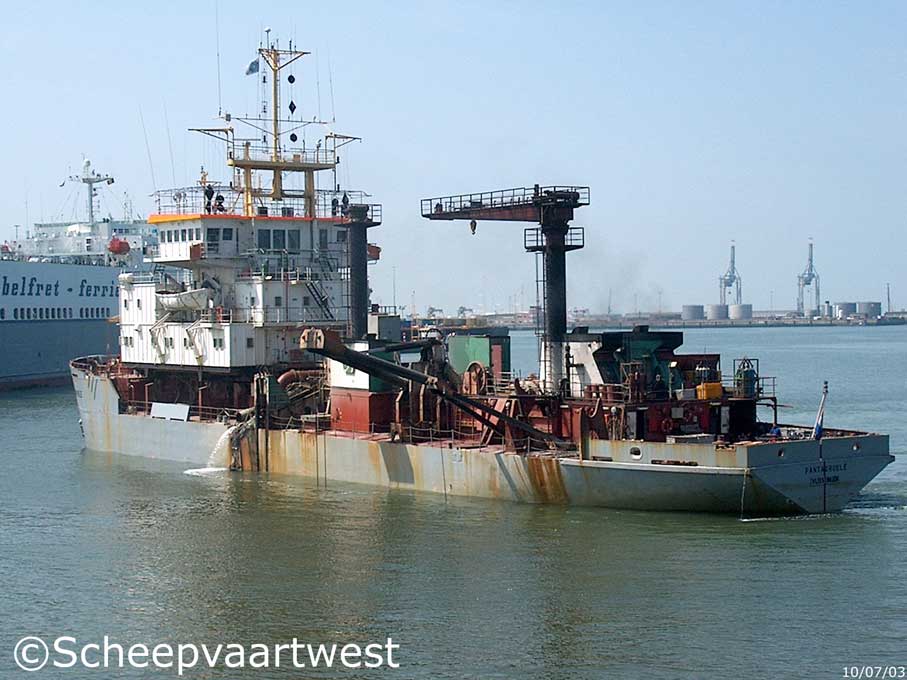

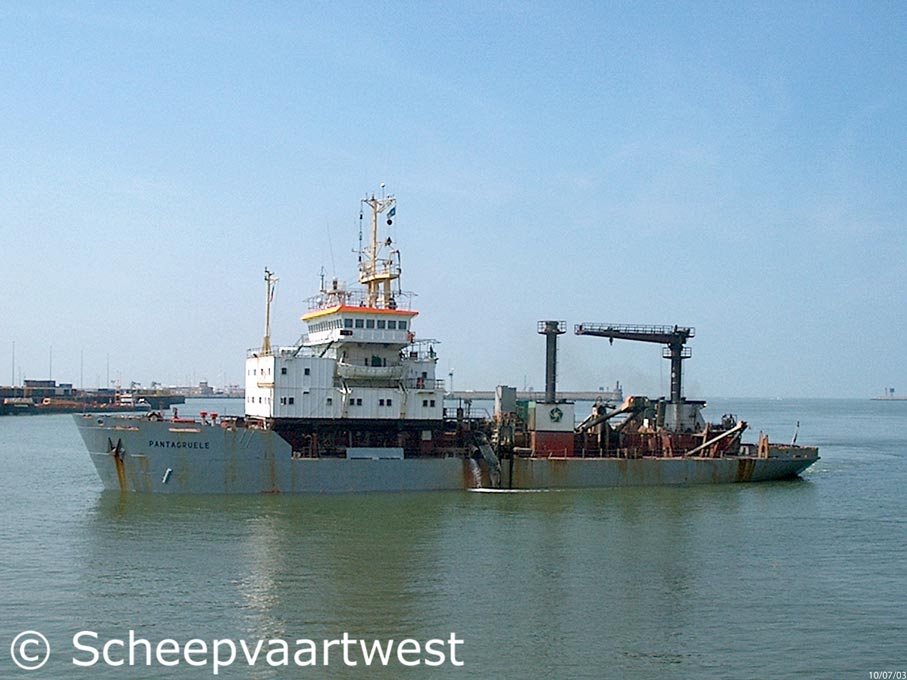

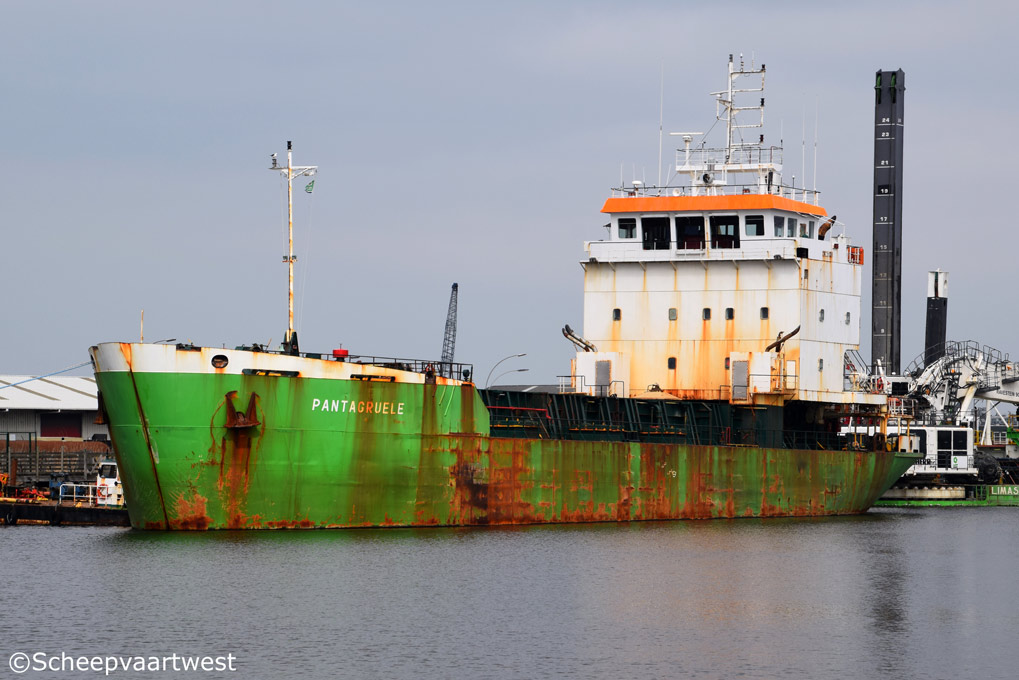

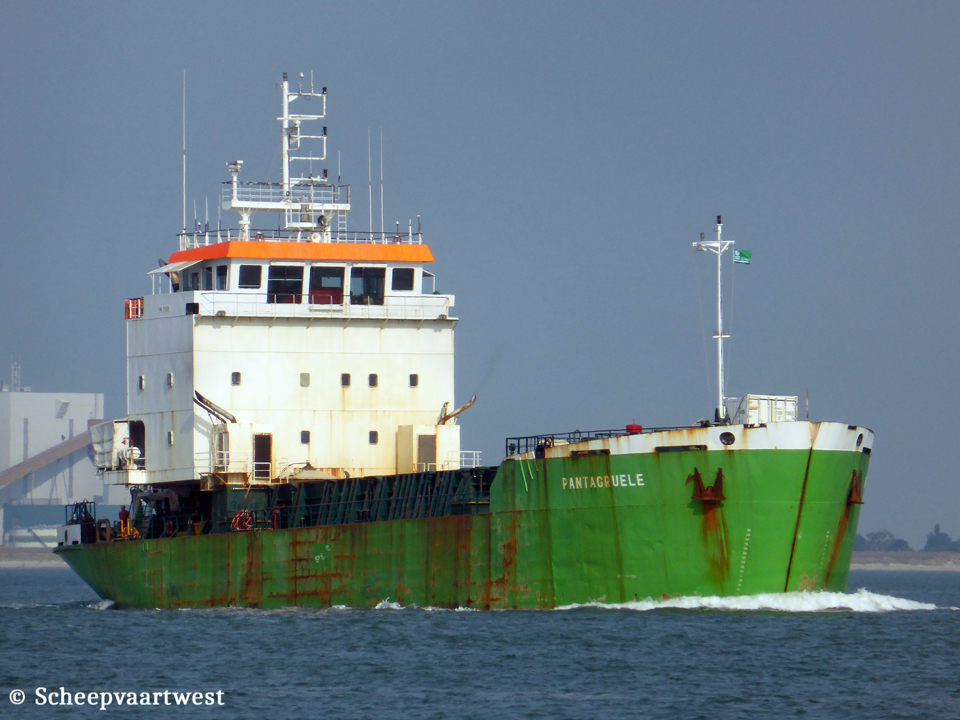

Pantagruele - IMO 7816288

Name

PANTAGRUELE

Type

Trailing suction hopper dredger
Self-propelled hopper and transportation barges

IMO-number

7816288

Call sign

ORTG

Flag

Belgium

Port of registry

Antwerpen

Previous flag

1979 - 1999 Italy
1999 - 2005 The Netherlands, Vlissingen

GT

2.570 t

DWT

3.535 t

NT

798 t

Length

77,03 m overall

75,01 m between perpendiculars

Breadth

15,02 m

Draught

Summer: 5,79 m
Max.: 6,14 m

Freeboard

1.516 mm

Depth

7,30 m moulded

Speed

Max. loaded 10,0 knots

Built

1979

Rebuilding

2006

Launch date

31/03/1979

Date of completion

06/1979

Builder

I.H.C. Smit B.V
Kinderdijk
The Netherlands

Yard number

C01117

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

2x Bolnes 10VDNL150/600 - 2 stroke 10 cylinder 190 x 350 mm internal combustion engine 2.206 kW / 2.998 hp at 600 rpm
Built: 1978
Bolnes Motorenbedrijf B.V.,Krimpen a/d Lek - The Netherlands

Electrical propulsion gen.

2x 804 kW - 440 Volt

Propelling system

2x Screw propeller - aft at 249 rpm

Electrical installation

Power voltage: 440 V
Lighting voltage: 220 V
Frequency: 60 Hz

Generators

1x Diesel generatorset 103 kVA - 82 kW - 125 hp
1x Diesel generatorset 207 kVA - 166 kW - 414 hp

Total installed power

4.115 kW

Max. dredging depth

25,00 m

Suction pipes diameter

650 mm

Number of holds

1

Hopper capacity

2.000 m³

Loading capacity

2.800 t
(2006) 3.400 t

On pumps ps (dredging)

638 kW

Propulsion

Sailing: 2.208 kW
Trailing: 2.208 kW

Owner

Baggerwerken Decloedt & Zoon N.V.
Slijkensesteenweg 2
8400 Oostende
Belgium

Group

DEME N.V.
Dredging Environmental & Marine Engineering
Scheldedijk 30
Haven 1025
2070 Zwijndrecht
Belgium

Previous names & owners

• 1979 produced (RI) by I.H.C. Smit B.V.,Kinderdijk (co1117) as PANTAGRUELE to Societe Sarda di Dragaggi e Escavazioni Rocciose S.p.A (Sidersarda), Ancona-Italy.

• 1981 owner: Sardinia Nova S.p.A., Ancona-Italy.

• 1984 owner: Societe Sarda di Dragaggi e Escavazio ni Rocciose S.p.A (SIDERS ARDA), Ancona-Italy.

• 1986 owner: Impresa Sidersarda S.p.A, Ancona-Italy.

• 1993 owner: Impresa Sider S.p.A., Ravenna-Italy.

• 1999 sold to Tideway B.V.

• Marine and Offshore Contractors, Topaasstraat 64, 4800 Breda - The Netherlands.

• 2005 sold to Baggerwerken Decloedt & Zoon N.V.

Remarks

2006 Converted into a split hopper

Scrapped

08/2020 at Gent - Belgium

Latest data adjustment

23 September 2020
