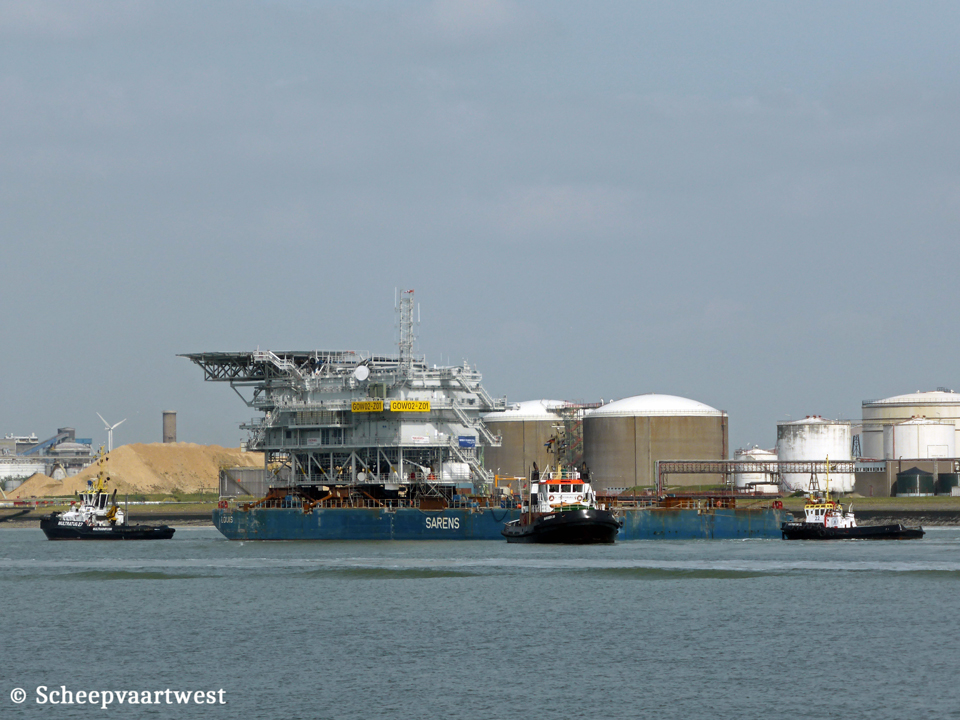

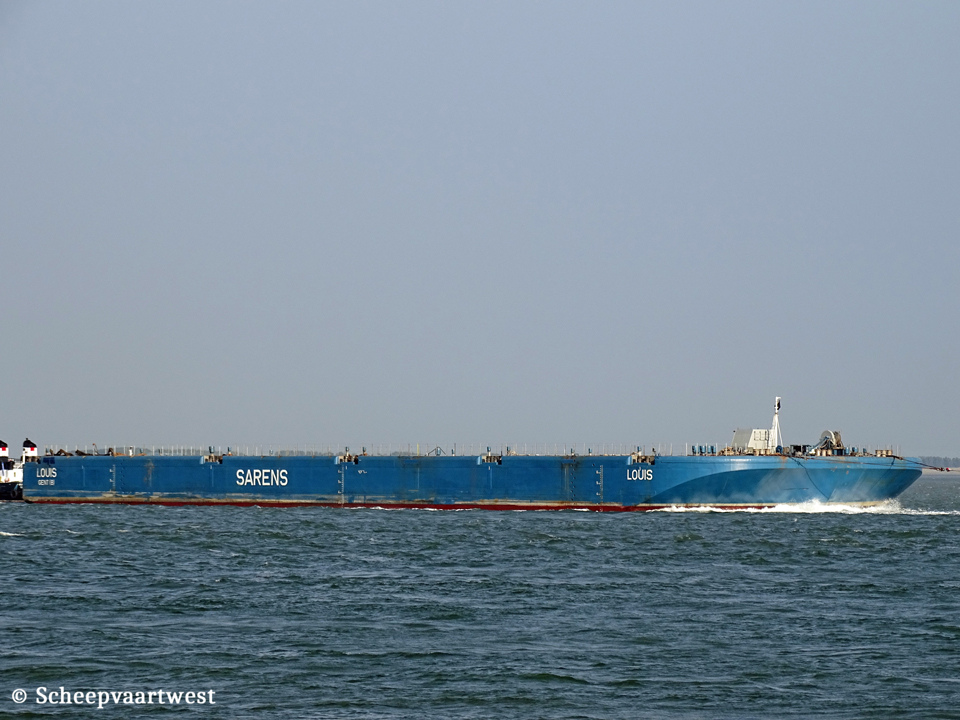

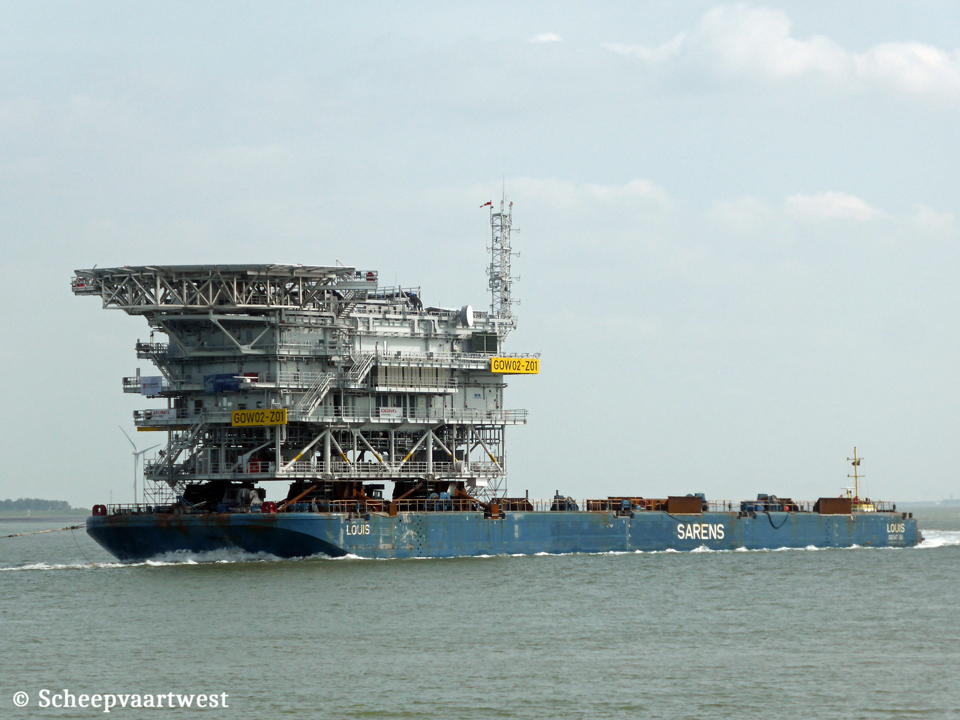

| Westerschelde 10 May 2015 |
 |
 |
 |
||
| Westerschelde 10/05/15 | Westerschelde 10/05/15 | Westerschelde 31/08/16 | ||
|
Name |
LOUIS |
|
Type |
Flat top deck barge - No propulsion |
|
Flag |
Belgium |
|
Port of registry |
Gent |
|
GT |
6.690 t |
|
DWT |
15.492 t |
|
NT |
2.007 t |
|
Light ship |
3.238 t |
|
Length |
100,00 m overall |
|
Breadth |
33,00 m |
|
Draught |
Summer: 6,02 m Min: 1,21 m |
|
Freeboard |
1.147 mm |
|
Depth |
7,60 m |
|
Built |
2011 |
|
Date of completion |
30/05/2011 |
|
Builder |
North Sea Enterprises BVBA Croatia |
|
Yard number |
13800 |
|
Hull material |
Steel |
|
Watertight compartments |
23 |
|
Continuous decks |
1 |
|
Max permitted loads |
25,0 t/m² |
|
Pomp room |
2x Internal direct driven ballast pomps each 500 m³/h 2x JCB Diesel engine each 100 hp |
|
Towing bridle |
4x Towing brackets on the bow - SWL 150 t 2x Stud link chain cables, size 58 mm x 18,00 m 3x Green pin shackles - SWL 85 t 1x Delta plate - SWL 85 t |
|
Emergency towing line |
1x Stud link chain cable, size 58 mm x 6,00 m 1x Green pin shackles - SWL 120 t 1x Steel wire rope; size 58 mm x 80,00 m 1x Floating polypropylene line 1x Floating Buoy |
|
Miscellaneous |
1x 5,0 t delta flipper anchor 4 Spud holes Removable hand railing Removable barge furniture |
|
Number of tanks |
Ballast: 19 |
|
Tank capacities |
Ballast: 21.518 m³ Fuel oil: 13 m³ |
|
Registered owner |
Sarens NV Autoweg 10 1961 Wolvertem Belgium |
|
Latest data adjustment |
07 January 2024 |
