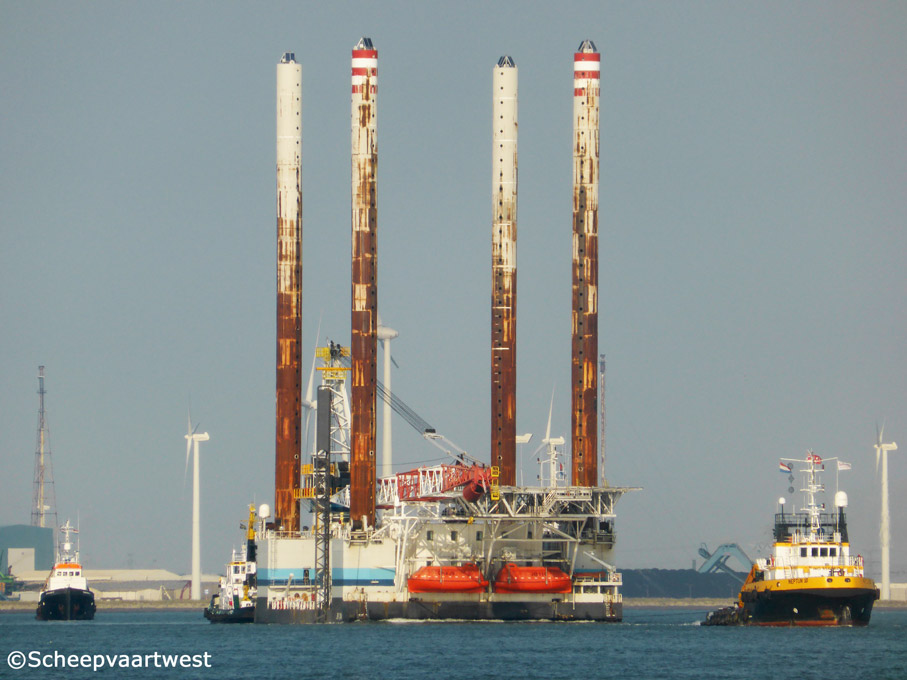

Westerschelde 17 July 2014 |
|
Name |
JB-114 |
|
Type |
Jack-up barge - Pontoon MSC Sea-2000 self-elevating unit |
|
IMO-number |
8770728 |
|
Call sign |
C6XJ9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
3.621 t registered Suez: 4.423,86 t |
|
NT |
1.086 t registered Suez: 4.423,86 t |
|
Length |
55,50m overall |
|
Breadth |
32,20 m overall |
|
Draught |
Max;: 3,60 m |
|
Freeboard |
1.472 mm |
|
Depth |
5,00 m overall |
|
Built |
2009 |
|
Keel laid |
05.01.2008 |
|
Launch date |
16.10.2008 |
|
Delivery date |
08.05.2009 |
|
Builder |
PT. Nanindah Mutiara Shipyard |
|
Yard number |
H624 |
|
Hull material |
Ordinary Strength Steel |
|
Watertight bulkheads |
16 |
|
Generators |
2x Diesel generatorsets each 164 kW |
|
Leg length |
73,15 m (optional 78,85 m) |
|
Leg diameter |
3,00 m |
|
Deck area |
1.000 m² |
|
Jacking system |
Make: MSC type 2000 Jacking speed: 0,65 m/min Jacking stroke: 1,70 m Maximum pay load: 1.250 t |
|
Mooring system |
Winches: 4x 500 mm (30 t line pull) electric driven Anchors: 4x Delta Flipper - 5 t |
|
Operation conditions |
Maximum water depth: ± 40,00 m Wave height / period: 2,00 m/6,0 sec Wind speed: 20 m/sec |
|
Heli deck |
Size 19,50 m diameter |
|
Number of tanks |
Ballast: 5 Fresh Water: 2 Fuel Oil: 2 Sea Water: 1 Diesel Oil: 1 Waste Water: 1 Slop: 1 |
|
Tank capacities |
Diesel oil: 8 m³ / 7,2 t Freshwater: 304 m³ Fuel oil: 186 m³ / 182,28 t Tank ballast: 1.084 m³ / 1.111,1 t |
|
Crane |
Make: Favelle Favco Cranes, Malaysia Type: PC 300 Offshore Pedestal crane Capacity: 300 t at 18 m radius 68 t at 62 m radius Maximum boom length: 71 m |
|
Accommodation |
Fixed accommodation up to 100 personnel |
|
Manager |
Jack Up Barge Operations |
|
Owner |
Jack-Up Barge Krausstraat 14-16 |
|
Registered owner |
Self Elevating Platforms JB-114 N.V. |
|
Latest data adjustment |
17 February 2015 |
