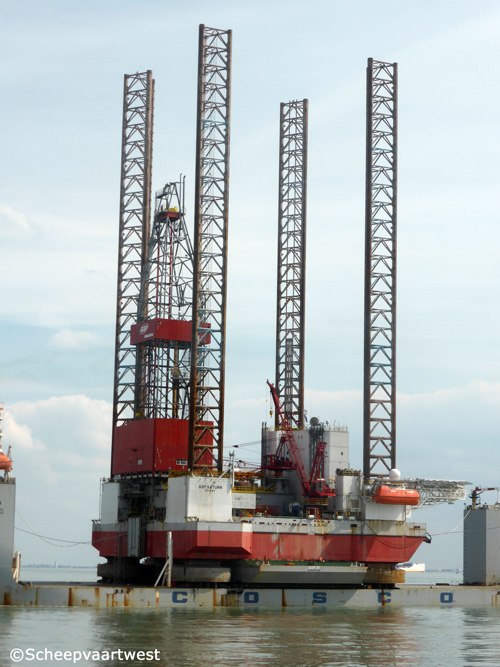

Westerschelde 31 July 2015 |
|
Name |
GSP SATURN |
|
Previous names |
1987 - 2008 Saturn |
|
Type |
Four legs self elevating drilling unit |
|
IMO-number |
8767666 |
|
Call sign |
3ERX8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
5.235 t registered |
|
NT |
1.570 t registered |
|
Length |
52,46 m overall |
|
Breadth |
49,80 m overall |
|
Freeboard |
1.244 mm |
|
Depth |
6,40 m overall |
|
Built |
1987 Rebuild: 2009 |
|
Keel laid |
01.09.1985 |
|
Launch date |
12.06.1986 |
|
Delivery date |
01.01.1987 |
|
Builder |
Damen Shipyard Galati |
|
Yard number |
755 |
|
Hull material |
High strength steel |
|
Watertight bulkheads |
12 |
|
Main power |
5x caterpillar 3512 DITA - total 8.430 hp coupled with 2x Generators each 750 kW 3x Generator each 1.500 kW |
|
Boilers |
2x Fired boiler |
|
Emergency generator |
1x Caterpillar C-18 diesel engine 587 hp coupled with generator 400 Volt |
|
Jack-up specifications |
Legs: triangle 4x 399 ft / 121,60 m - Usable bellow hull 325,75 ft / 93,30 m Legs spacing: Longitudinal 126 ft / 38,40 m - Transverse 109 ft / 33,22 m Spud cans: 38,83 ft / 11,84 m diameter x 8,11 ft / 2,47 m height Jacking system: Orion Class Pin & Hole Cantilever / slot: Cantilever 55 x 20 ft / 16,76 x 6,10 m |
|
Mooring equipment |
Winches: 2x 20,0 t electric drive |
|
Heli deck |
80 x 80 ft / 24,38 x 24,38 m |
|
Max. drill depth |
30.000 ft / 9.144 m |
|
Max. water depth |
300 ft / 91,44 m |
|
Number of tanks |
Sea water: 9 Ballast: 7 Fresh water: 5 Mud: 5 Hydraulic oil: 3 Waste water: 3 Fuel oil: 3 Sludge: 3 Diesel oil: 3 Potable water: 2 Lubricating oil: 1 |
|
Tank capacities |
Liquid mud: 299 m³ Oil base mud: 187,6 m³ Brine: 381,5 m³ Drill water: 572 m³ Potable water: 202,3 m³ Fuel oil: 260,8 m³ Bulk mud: 131 m² Bulk cement: 131 m³ Sack material: 1.000 sacks |
|
Lifting equipment |
1x Kingpost pedestal crane located on cantilever 1x Kingpost pedestal crane located on main deck port side 1x Kingpost pedestal crane located on main deck stbd |
|
Cargo gear |
2x Deck cranes AmClyde - SWL 40,0 t each 1x Deck cranes AmClyde - SWL 25,0 t |
|
Accommodation |
100 persons |
|
Manager |
Grup Servicii Petroliere |
|
Operator |
GSP - Grup Servicii Petroliere |
|
Registered owner |
GSP Saturn Ltd. |
|
Latest data adjustment |
08 September 2015 |
