Westerschelde 20 April 2020 |
 |
 |
 |
 |
 |
 |
|||||

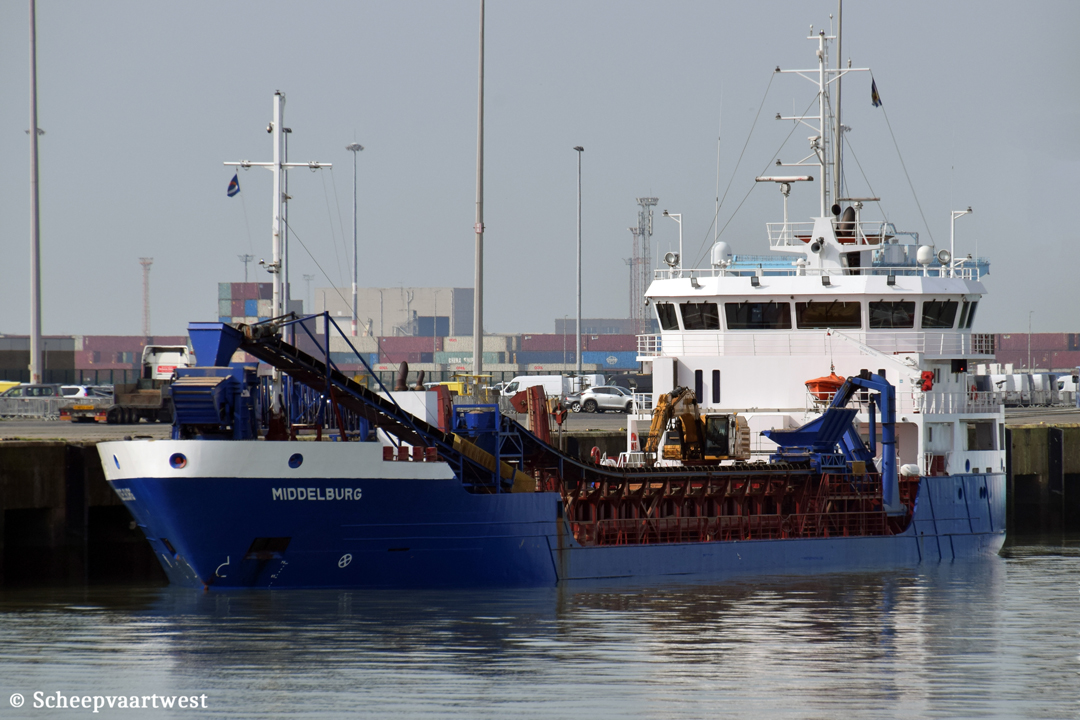

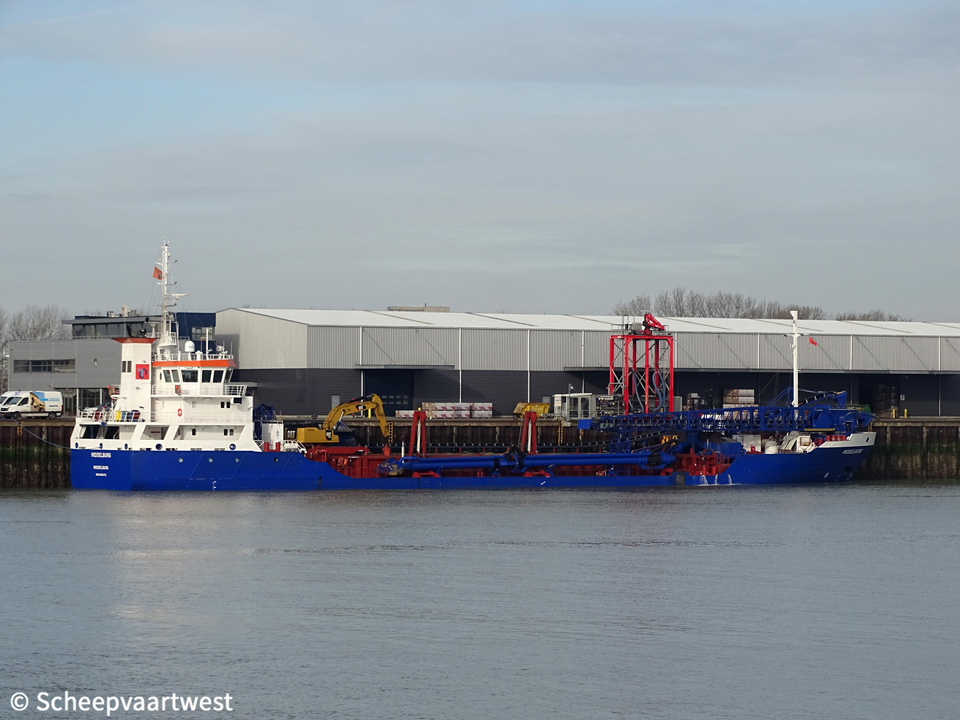

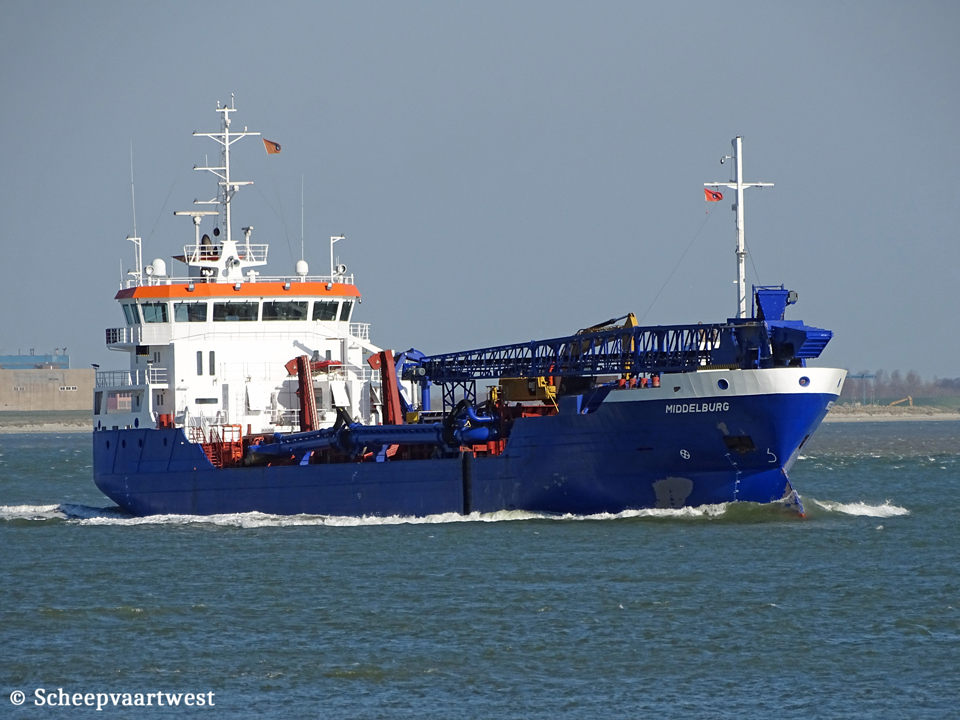

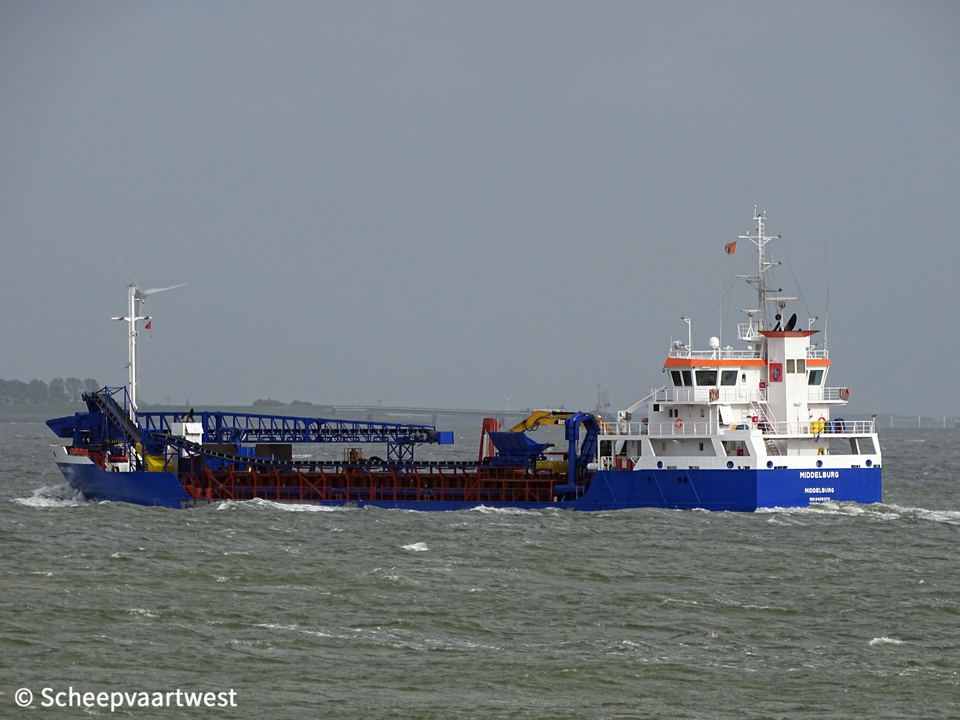

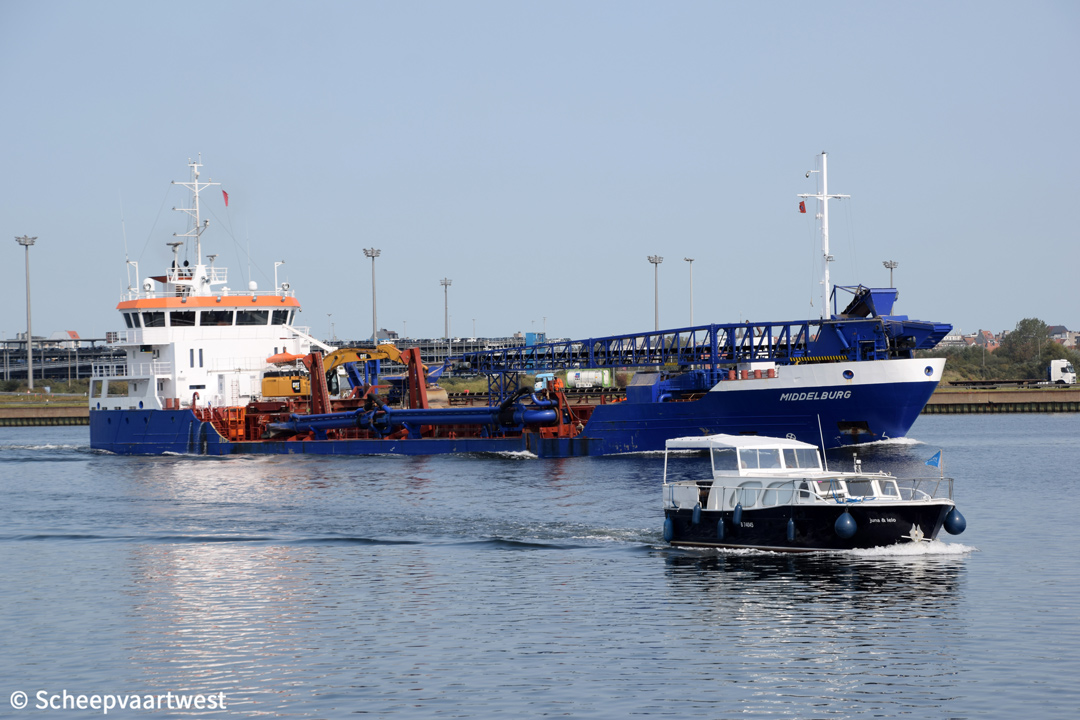

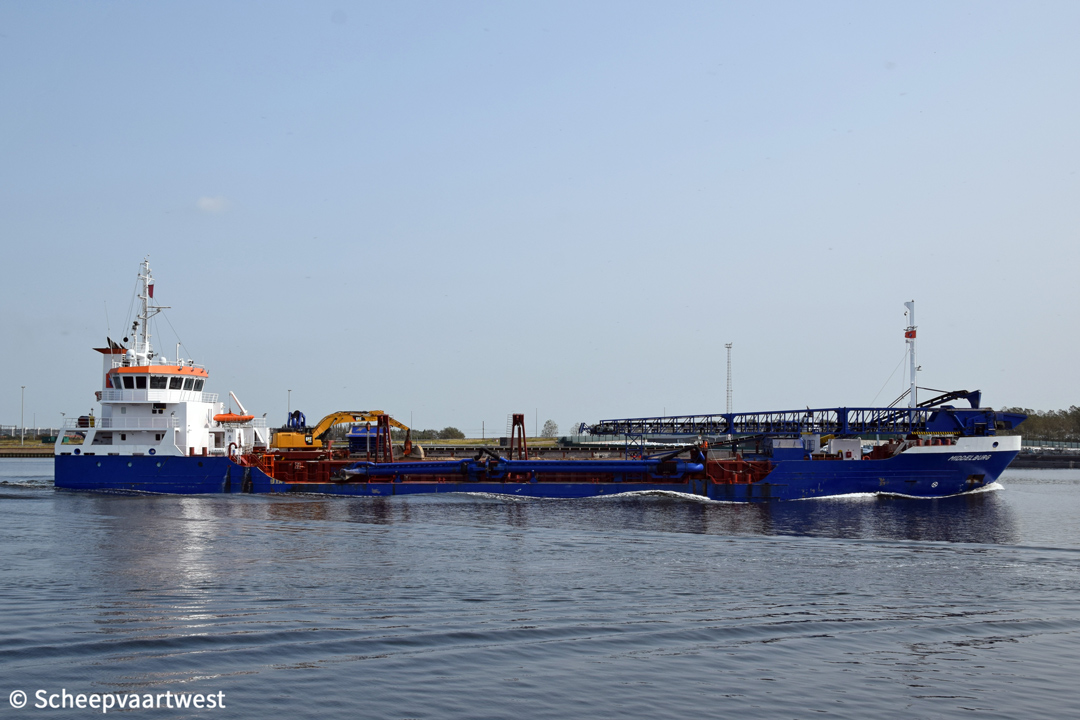

| Westerschelde 14/05/19 | Vlissingen 20/02/19 | Westerschelde 27/04/19 | Zeebrugge 11/09/20 | Zeebrugge 11/09/20 | Zeebrugge 11/09/20 | |||||
 |
 |
 |
||

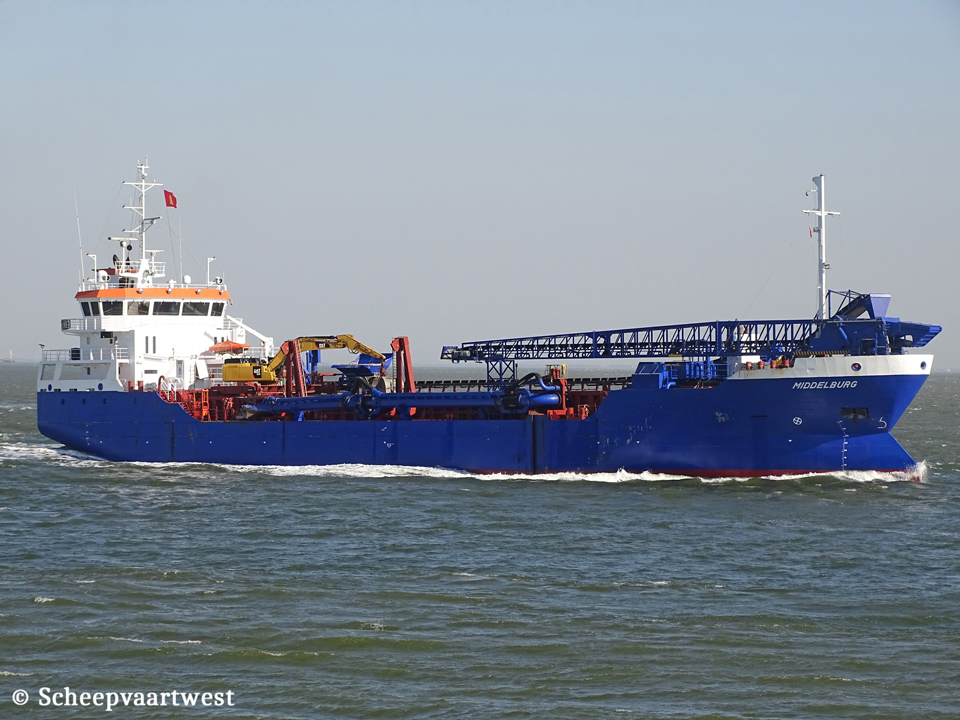

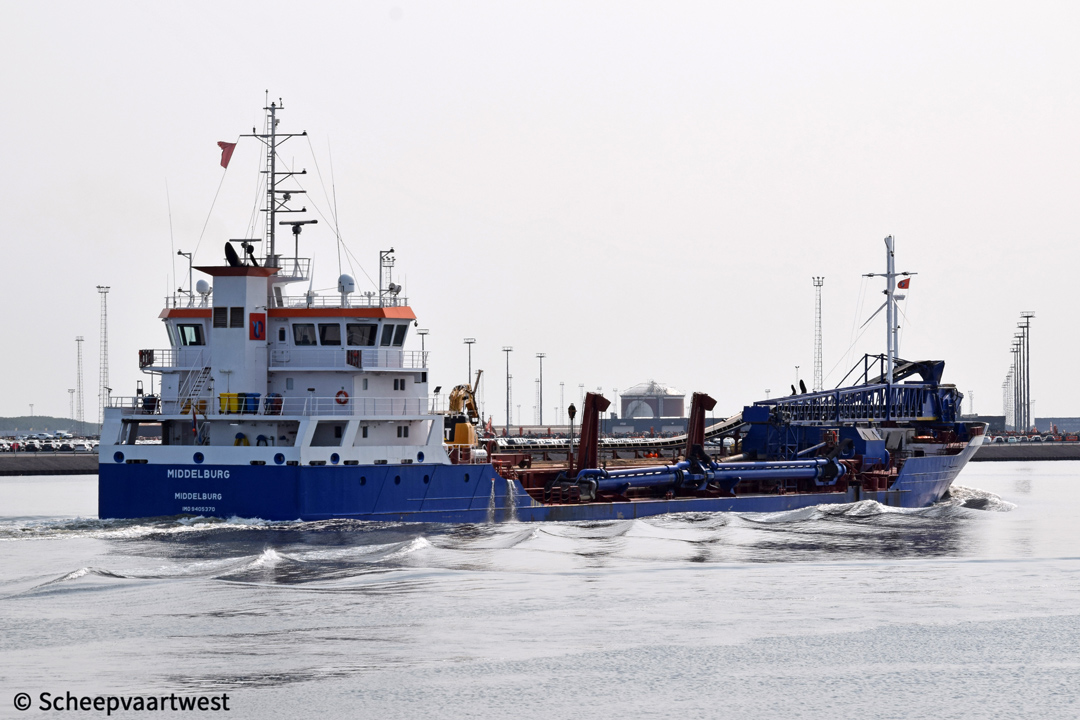

| Vlissingen 11/12/18 | Westerschelde 10/04/19 | Zeebrugge 20/03/24 | ||
|
Name |

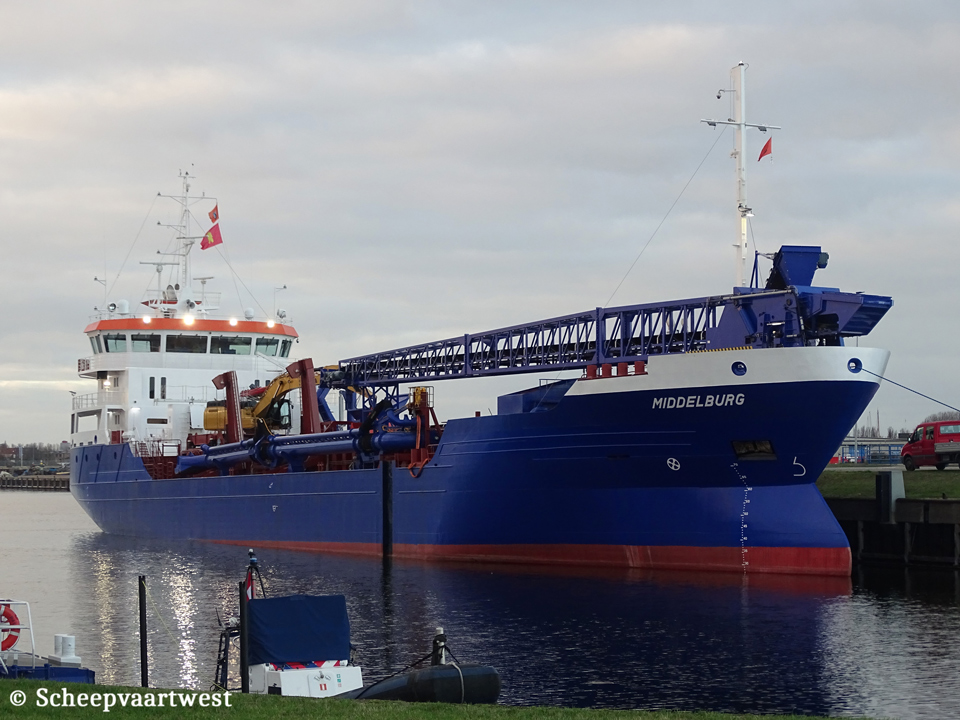

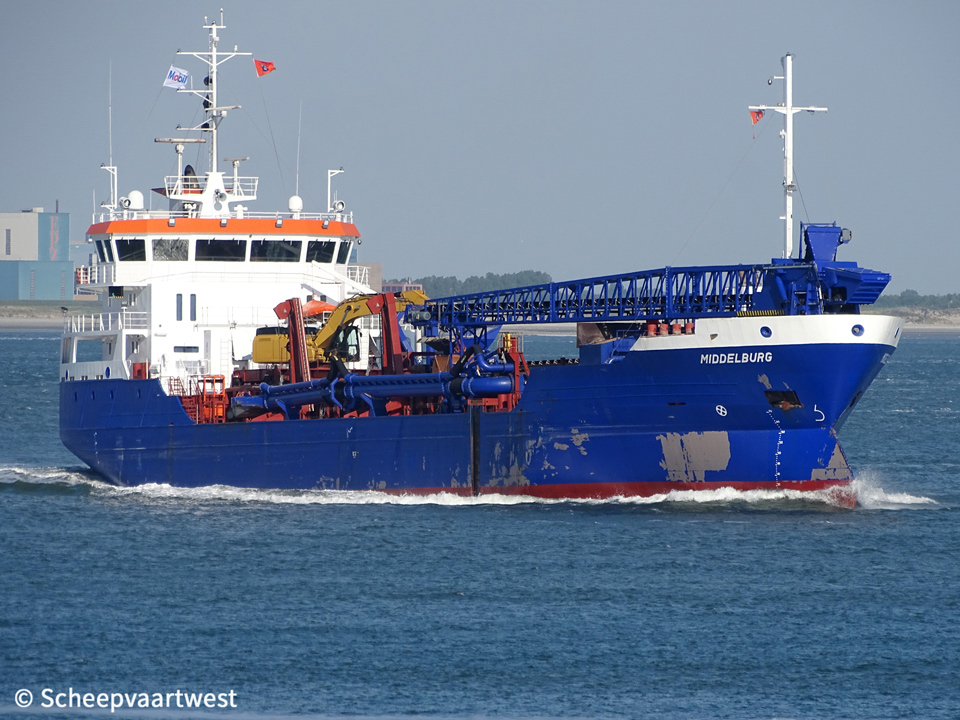

MIDDELBURG |
|
Previous names |
2008 - 10/2008 Maas 12 10/2008 - 05/2012 New Vita 05/2012 - 2017 Louissa Elana |
|
Type |
Trailing suction hopper dredger |
|
IMO-number |
9405370 |
|
Call sign |
PBDR |
|
Flag |
The Netherlands |
|
Port of registry |
Middelburg |
|
Previous flags |
Antigua & Barbuda, St. John’s |
|
GT |
2.700 t |
|
DWT |
3.006 t |
|
NT |
810 t |
|
Length |
89,89 m overall 84,99 m between perpendiculars |
|
Breadth |
14,50 m |
|
Draught |
5,45 m |
|
Freeboard |
1.865 mm |
|
Depth |
7,32 m |
|
Speed |
14,0 knots |
|
Built |
2008 As general cargo 2017 Converted into a trailing suction hopper dredger renamed Middelburg |
|
Launch date |
23/02/2008 |
|
Date of completion |
17/12/2008 |
|
Builder casco |
Maas Shipping Waterhuizen The Netherlands |
|
Builder completion |
Niestern Sander B.V. Delfzijl The Netherlands |
|
Yard number |
012 |
|
Hull material |
Mild steel |
|
Watertight compartments |
44 |
|
Continuous decks |
1 |
|
Main engine |
1x ABC - 4 stroke single acting 12 cylinder 256 x 310 mm combustion engine Mcr 2.208 kW / 3.002 hp at 800 rpm Built: 09/11/2017 Builder: Anglo Belgian Corporation NV. Gent - Belgium |
|
Propellers |
1x Controllable pitch propeller - aft at 1.527 rpm |
|
Shaft generator |
1x 500 kVA - 400 kW |
|
Generators |
2x Main diesel generatorsets each 507 kVA - 406 kW - 579 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 270 hp |
|
Bow thruster |
1x Tunnel thruster 400 kW / 544 bhp, forward |
|
Number of holds |
1 |
|
Cargo hold capacity |
2.730,07 m³ |
|
Tank capacities |
Fuel: 211,99 m³ |
|
Crew size |
8 |
|
Manager |
TSHD Middelburg BV Uijterschootweg 14 4338 PN Middelburg The Netherlands |
|
Owner |
Van Ouwerkerk B.V. (Zand-,schelpen- en grindhandel) Uijterschootweg 14 4338 PN Middelburg The Netherlands |
|
Latest data adjustment |
01 May 2022 |
