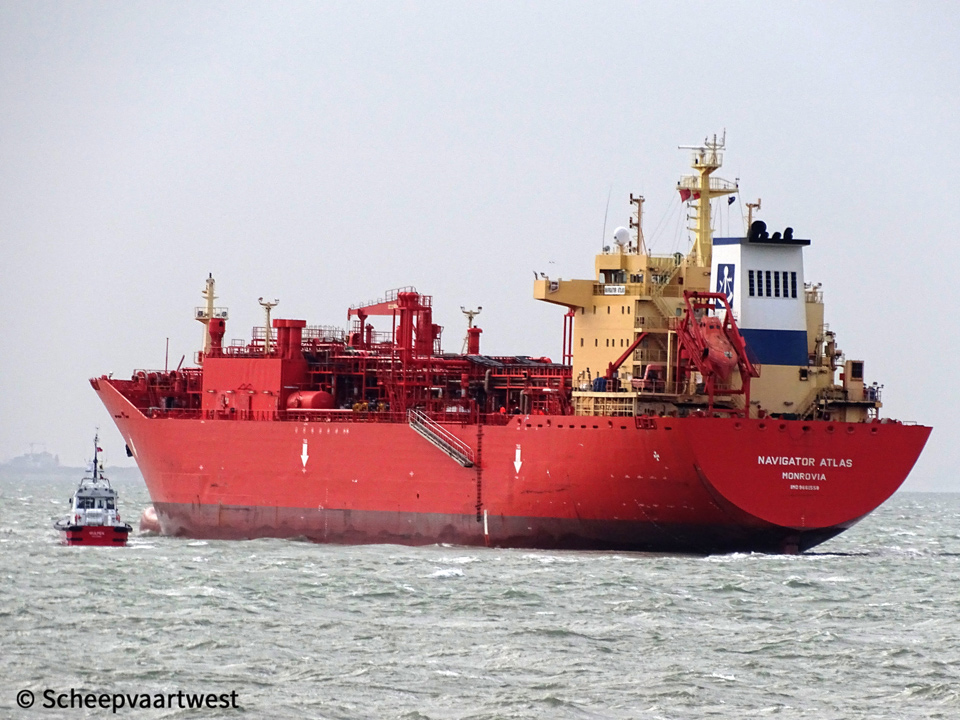

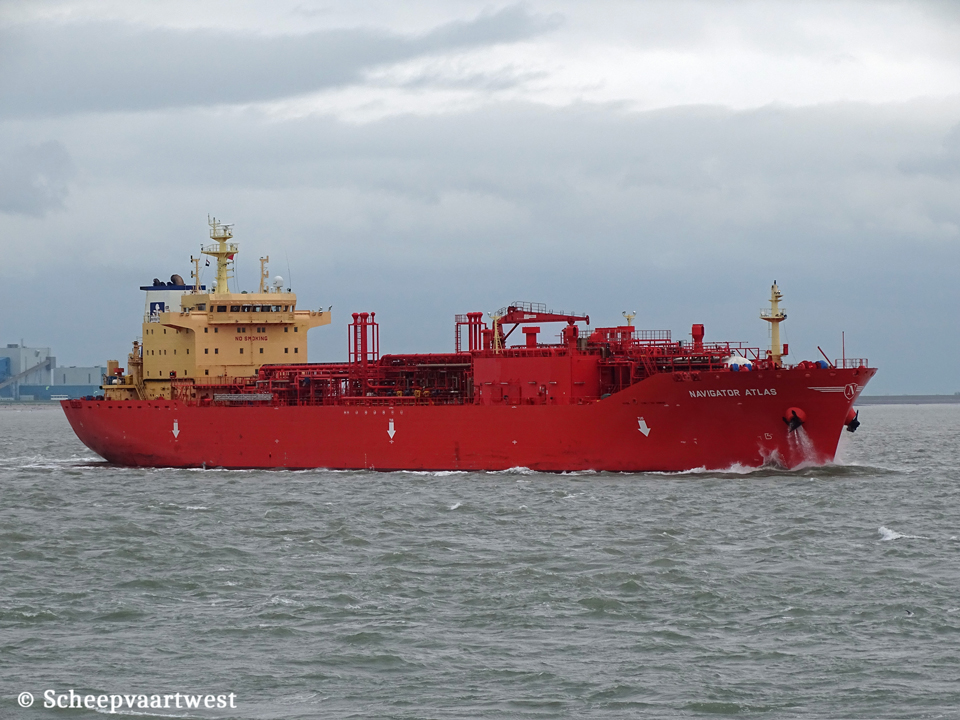

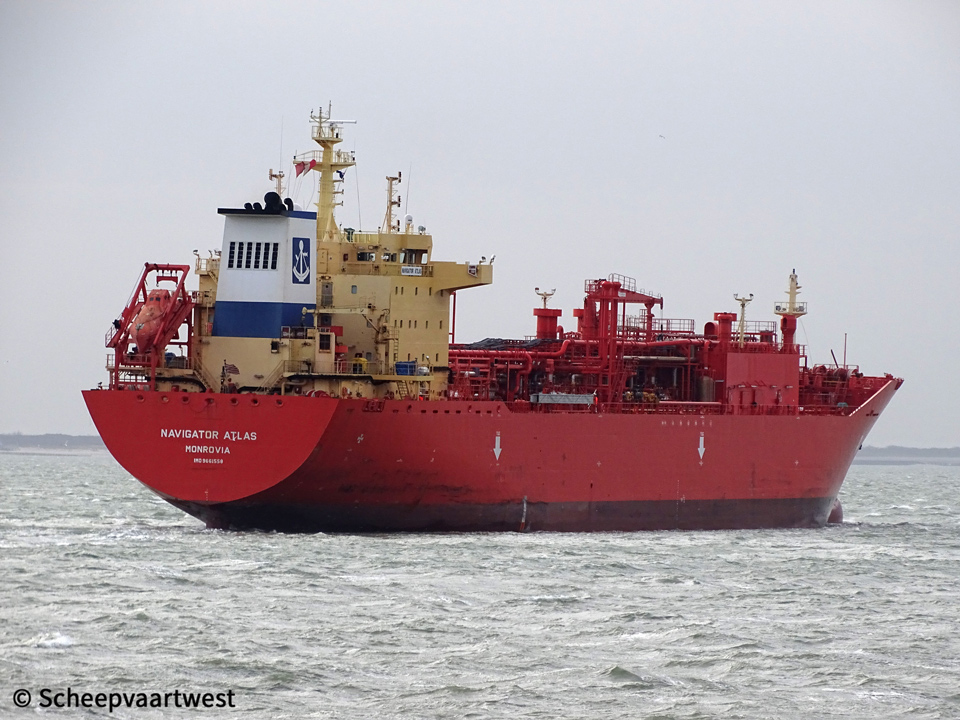

Westerschelde 21 December 2019 |
 |
 |
 |
||
| Westerschelde 10/12/19 | Westerschelde 10/12/19 | Westerschelde 10/12/19 | ||
|
Name |
NAVIGATOR ATLAS |
|
Type |
Liquefied gas tanker - LPG |
|
Main products |
Ammonia - Butadiene - Butane - Butene-1 - Crude-C4 - Ethylene - Propane - Propylene - V.C.M. |
|
IMO-number |
9661558 |
|
Call sign |
D5FZ2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.208 t registered Suez: 18.771,2 t |
|
DWT |
Summer: 17.000 t Winter: 16.350 t |
|
NT |
5.163 t registered Suez: 17.897,3 t Panama: 14.398 t |
|
Displacement |
Summer: 26.137 t Winter: 25.487 t |
|
Light ship |
9.102,7 t |
|
Length |
159,99 m overall 152,81 m between perpendiculars |
|
Breadth |
24,83 m extreme |
|
Draught |
Summer: 9,41 m Winter: 9,20 m Ballast: 6,90 m |
|
Distance keel-top antenna |
43,10 m |
|
Freeboard |
Summer: 7,31 Winter: 7,51 m |
|
Depth |
16,70 m moulded |
|
Speed |
Max: 17,0 knots Service: 16,0 knots |
|
Built |
2014 |
|
Keel laid |
10/07/2013 |
|
Launch date |
03/12/2013 |
|
Date of completion |
20/06/2014 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Linhai China |
|
Yard number |
H2530 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x MAN B&W/Hudong 6S50ME-C8.2 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 7.170 kW / 7.1710 hp at 114,0 rpm |
|
Propellers |
1x Fixed pitch propeller 4 blades / right handed - Diameter 5.750 mm |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
2x MAN 6L21/31 main diesel generatorsets each 1.140 kW 2x MAN 5L21/31 main diesel generatorsets each 850 kW Total: 3.980 kW 400 Volt - 60 Hz |
|
Emergency generator |
1X Cummins 6CTA8.3-D(M) diesel generatorset |
|
Number of cargo tanks |
4x Bi-lope |
|
Cargo tank capacity |
20.580 m³ |
|
Deck tank |
200 m³ |
|
Pumps |
8x Svanehoy deepwell type elec. motor driven each 250 m³/h |
|
Min temperature |
-104°C |
|
Max pressure |
5,3 bar |
|
Manifold |
Distance from centre to bow: 73,20 m Distance from centre stern: 86,8m |
|
Tank capacities |
HFO: 1.970 m³ MGO: 272 m³ Fresh water:300 m³ Ballast: 7.465 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Lifting equipment |
1x McGregor hose handling crane - SWL 7,5 t midships Outreach: 19,00 m 1x Stores handling crane aft - SWL 2,0 t starboard Outreach: 8,00 m |
|
Manager |
Navigator Gas Shipmanagement Ltd. The Verde 10 Bressenden Place London, SW1E5DH United Kingdom |
|
Commercial manger |
Navigator Gas LLC 21 Palmer Street London, SW1H 0AD United Kingdom |
|
Registered owner |
Navigator Atlas LLC Trust Company Complex Ajeltake Road, Ajeltake Island Majuro Marshall Islands MH96960 |
|
Latest data adjustment |
07 December 2022 |
