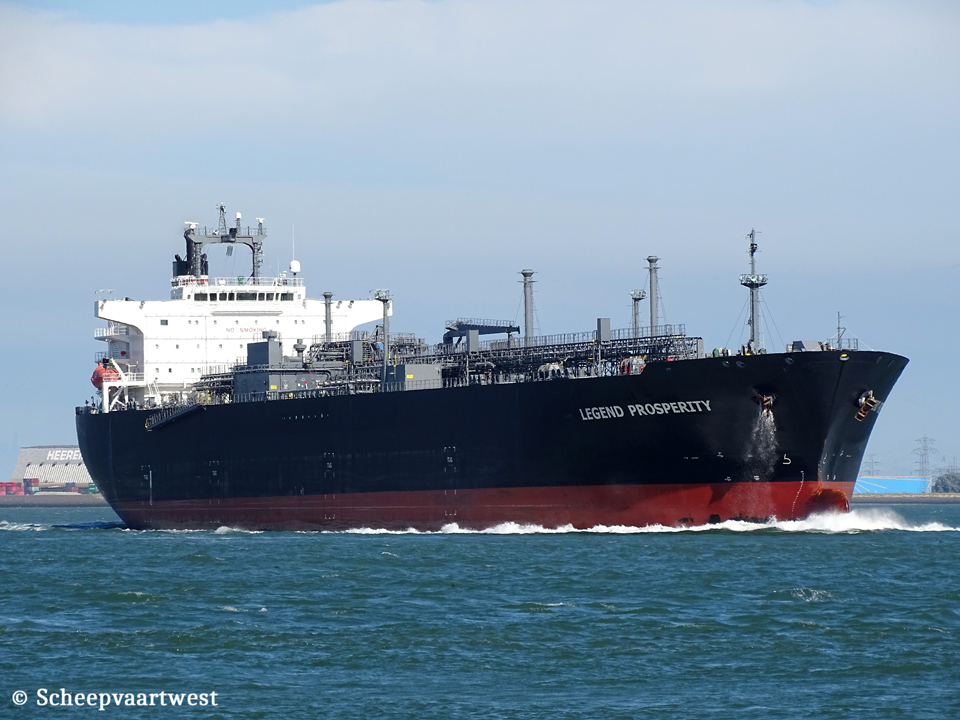

Legend Prosperity IMO 9723679 01
Westerschelde 01 August 2020

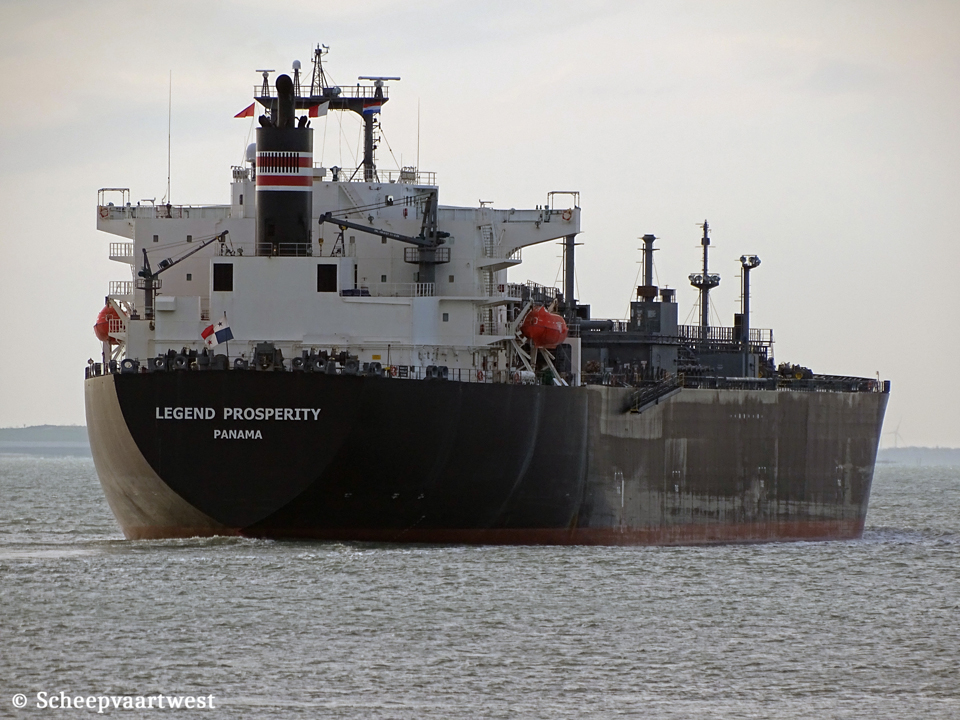

Legend Prosperity IMO 9723679 02
Westerschelde 01/12/19


Name

LEGEND PROSPERITY

Type

LPG - Liquefied gas tanker

IMO-number

9723679

Call sign

3FJP4

Flag

Republic of Panama

Port of registry

Panama city

GRT

47.963 t

DWT

55.133 t

NRT

14.389 t

Length

230,00 m overall

Breadth

36,60 m moulded

Draught

Summer: 11,58 m

Moulded L x B x D

219,00 x 36,60 x 21,65 m

Registered L x B x D

222,94 x 36,60 x 21,65 m

Keel to mast end

47,10 m

Freeboard

Summer: 10.116 m

Depth

21,65 m mouded

Speed

Service: 16,7 knots

Max: 19,4 knots

Built

2016

Keel laid

10/02/2015

Launch date

18/09/2015

Date of completion

01/01/2016

Builder

Mitsubishi Heavy Industries Shipbuilding Co., Ltd.

Japan

Yard number

2314

Hull material

Steel

Hull type

Double Bottom

Main engine

1x Mitsubishi 7UEC60LSII - 2 stroke single acting 7 cylinder 600 x 2.300 mm combustion engine 13.000 kW / 17.675 hp at 100,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 620 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,69 MPa

Evaporation: 4,03 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Generatorsets total 3.875 kVA

Cargo tank capacity

Liquid: 83.574,58 m³

Number of pumps

8x Cargo pumps each 550 m³/h

Minimum temperature

-46°C

Maximum pressure

0,050 MPa

Tank capacities

Fuel oil: 3.709 m³

Fresh water: 409 m³

Commerical manager

Kyoei Tanker Co., Ltd.

4th Floor, G Square Mita, 2-6, Mita 3-chome, Minato-ku

Tokyo, 102-0073

Japan

ISM manager

NYK Shipmanagement Pte Ltd.

15-01, HarbourFront Tower One, 1, Harbourfront Place

Singapore 098633

Republic of Singapore

Registered owner

Norma Maritime SA

Care of Kyoei Tanker Co., Ltd.

4th Floor, G Square Mita, 2-6, Mita 3-chome, Minato-ku

Tokyo, 102-0073

Japan

Latest data adjustment

13 June 2022
