| Westerschelde 04 February 2020 |
 |
 |
|
| Westerschelde 04/02/20 | Westerschelde 04/02/20 |
|
Name |

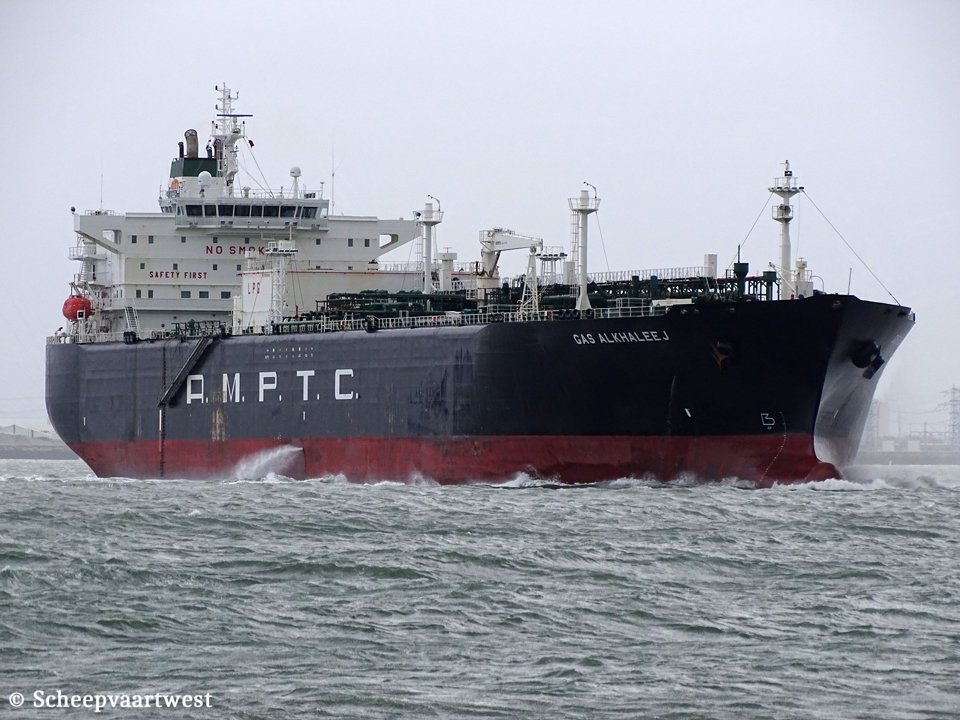

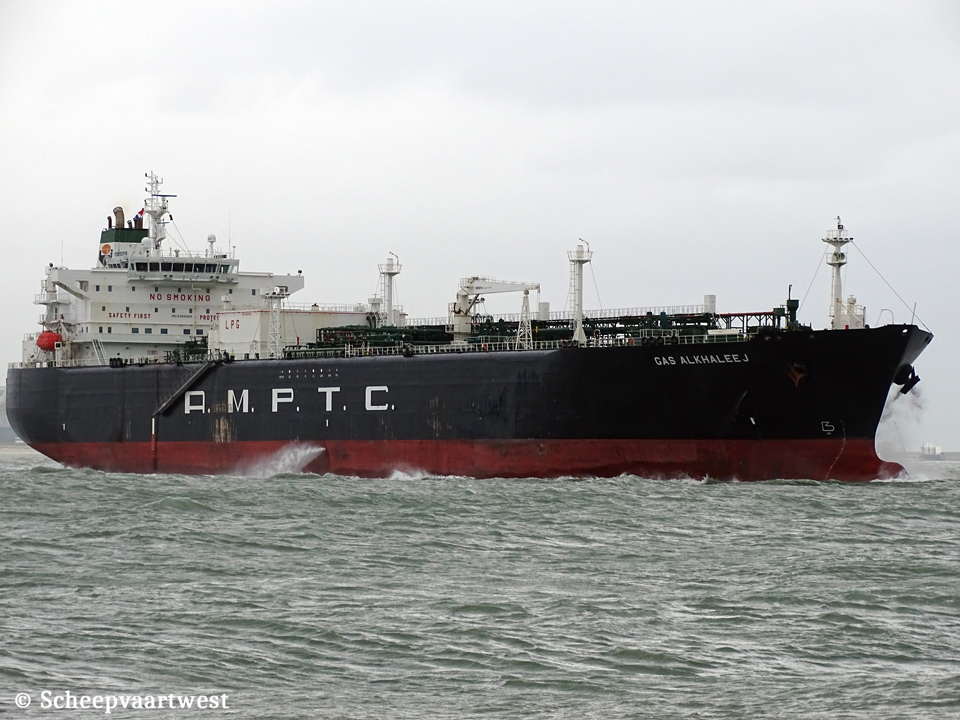

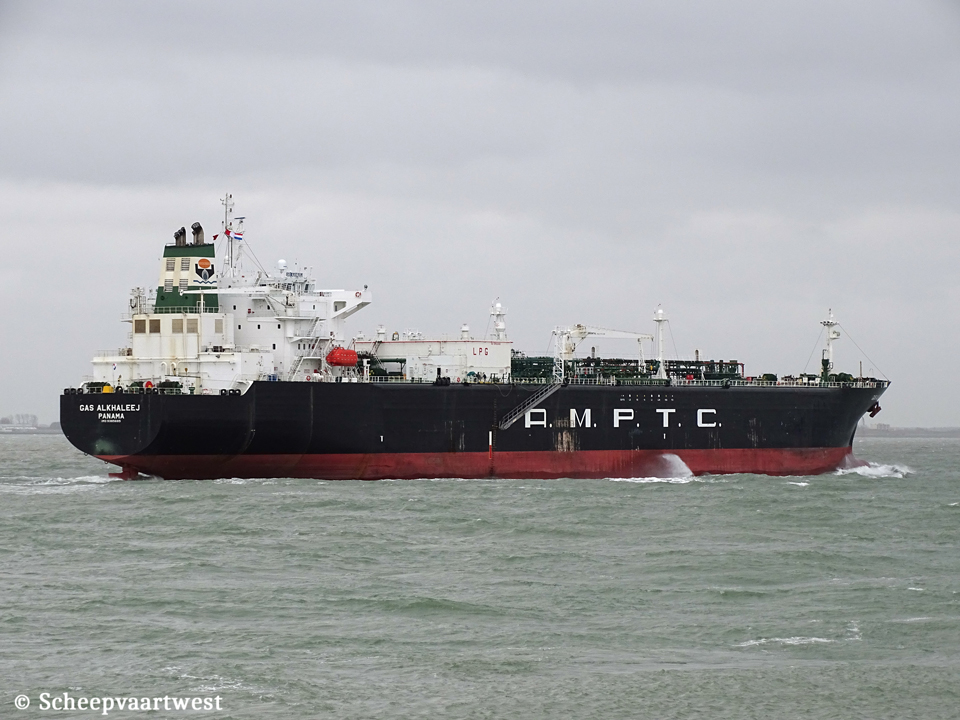

GAS ALKHALEEJ |
|
Type |
Liquefied gas tanker - LPG |
|
Main products |
Propane, Butadiene, Butane, Butylene and Propylene |
|
IMO-number |
9385685 |
|
Call sign |
3ESM3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
47.072 t Suez: 50.291,98 t |
|
DWT |
54.495 t |
|
NT |
15.845 t Suez: 46.322,24 t |
|
Length |
225,00 m overall 215,00 m between perpendiculars |
|
Breadth |
36,62 m extreme |
|
Draught |
Summer: 12,02 m |
|
Keel to mast end |
49,52 m |
|
Depth |
22,00 m moulded |
|
Speed |
16,7 knots |
|
Built |
2008 |
|
Keel laid |
12/02/2008 |
|
Date of completion |
03/09/2008 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. South Korea |
|
Yard number |
S333 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S60MC - C. - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine Mcr 13.560 kW at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler 1x Exhaust gas economizer |
|
Generators |
1x 4 stroke diesel engine Mcr 1.280 kW at 720 rpm connected with generator 1.200 kW 4x 4 stroke diesel engines each Mcr 1.740 kW connected with generatorsets each 1.380 kW |
|
Number of cargo tanks |
4x Independent self supporting cargo tank |
|
Cargo tank capacity |
80.701 m³ |
|
Number of pumps |
8x Cargo pumps each 600 m³/h |
|
Max pressure |
0,275 bar |
|
Min temp |
-50°C |
|
Lifting equipment |
1x Electro-hydraulic crane - SWL 10,0 t |
|
ISM & commercial manager |
Arab Maritime Petroleum Transport Co. Arab Organization Headquarters, Building Airport Road 13086 Kuwait City Kuwait |
|
Registered owner |
Arab Maritime Petroleum Transport Co. (AMPTC) Arab Organization Headquarters, Building Airport Road 13086 Kuwait City Kuwait |
|
Latest data adjustment |
07 September 2022 |
