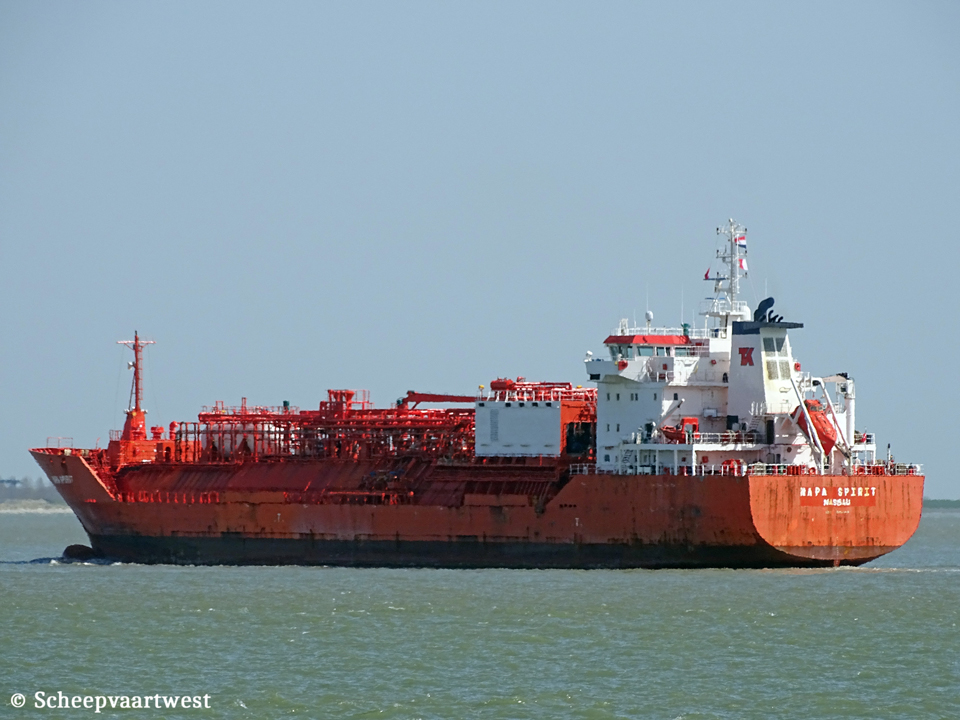

| Westerschelde 17 April 2018 |
|
Name |
NAPA SPIRIT |
|
Previous names |
2003 - 2017 Norgas Nappa |
|
Type |
Liquefied Gas Tanker LPG / Ethylene / Ammonia / VCN - Carrier |
|
IMO-number |
9254953 |
|
Call sign |
C6BM3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
People's Republic of China, Hong Kong - Call sign: VRYR4 Republic of Singapore, Singapore City - Call sign: 9V8461 |
|
GT |
9.691 t |
|
DWT |
10.762 t |
|
NT |
2.908 t |
|
Length |
137,10 m overall 127,95 m between perpendiculars |
|
Breadth |
19,80 m |
|
Draught |
Summer: 6,70 m |
|
Forecastle |
15,75 m |
|
Poop |
27,36 m |
|
Depth |
11,50 m |
|
Speed |
16,5 knots |
|
Built |
2003 |
|
Keel laid |
26/06/2002 |
|
Launch date |
31/10/2002 |
|
Date of completion |
24/10/2003 |
|
Builder |
Hudong-Zhonghua Shipbuilding (Group) Co., Ltd. 2851, Pudong Dadao 226361 Shanghai People's Republic of China |
|
Yard number |
451 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hudong 6L48/60 - 4 stroke single acting 6 cylinder 480 x 600 mm combustion engine 6.300 kW / 8.565 bhp Year of manufacture: 2002 Manufacturer: Hudong Heavy Machinery Co., Ltd. 2851, Pudong Dadao 200129 Shanghai People's Republic of China |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 56,5 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 90,0 m² Year of manufacture: 2002 Manufacturer: Aalborg Industries A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
1x Plant 440 V - 2.950 kVA 1x Plant 440 V - 2.261,5 kVA 1x Plant 440 V - 150 kVA |
|
Shaft generator |
1x 2.261,5 kVA |
|
Generators |
4x MAN D2842LE301 main diesel generatorsets each 737,5 kVA |
|
Emergency generator |
1x MAN D2866 E diesel generatorset 150 kVA |
|
Compressed air receivers |
2x Receivers each 1.750 litres - 30,0 bar 1x Receiver 1.000 litres - 10,0 bar 1x Receiver 500 litres - 7,0 bar |
|
Bow thruster |
1x Brunvoll FU-63-LTC-1550 - 700 kW, forward |
|
Number of cargo tanks |
2 |
|
Cargo tank capacity |
10.208 m³ |
|
Largest cargo tank |
5.906 m³ |
|
Min. temperature |
-104°C |
|
Max. tank pressure |
7,0 bar |
|
Loading / unloading rate |
1.020 m³/h |
|
Number of pumps |
2x Deepwell cargo pumps each 640 m³/h 1x Booster pump 380 m²/h |
|
Tank capacities |
Ballast water: 5.784 m³ Fuel oil: 1.183 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m Diameter: 52 mm |
|
ISM & commercial manager |
OSM Tanker Management Pte. Ltd. |
|
Registered owner |
Zhonghua Hull No. 451 L.L.C. |
|
Latest data adjustment |
16 November 2022 |
