| Vlissingen, The Netherlands 11 April 2018 |
 |
 |
|
| Vlissingen 11/04/18 | Vlissingen 11/04/18 | |
|
Name |

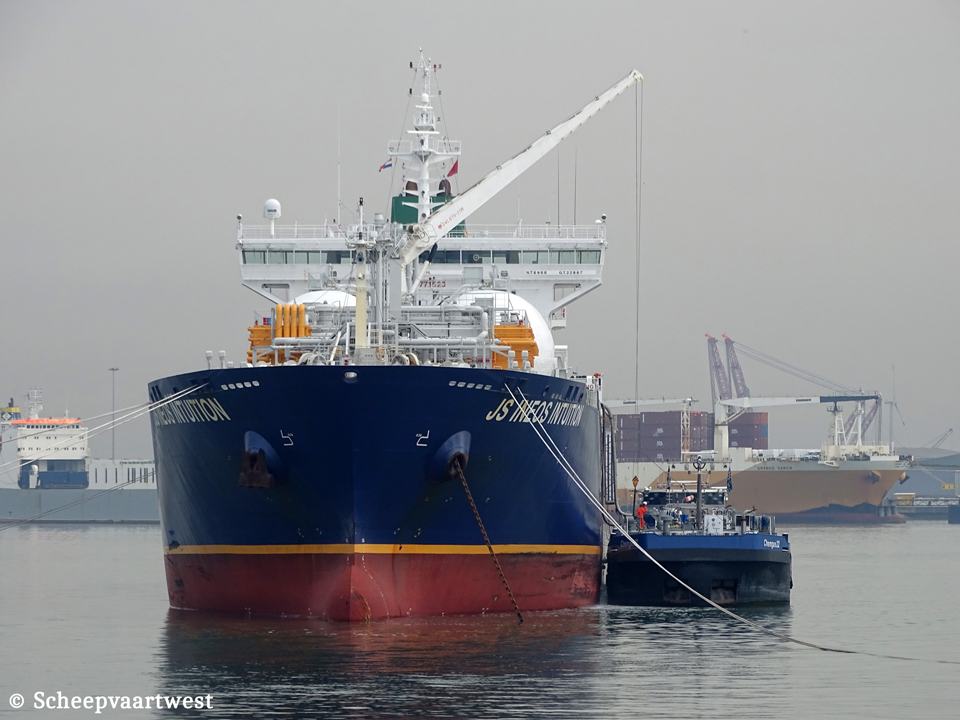

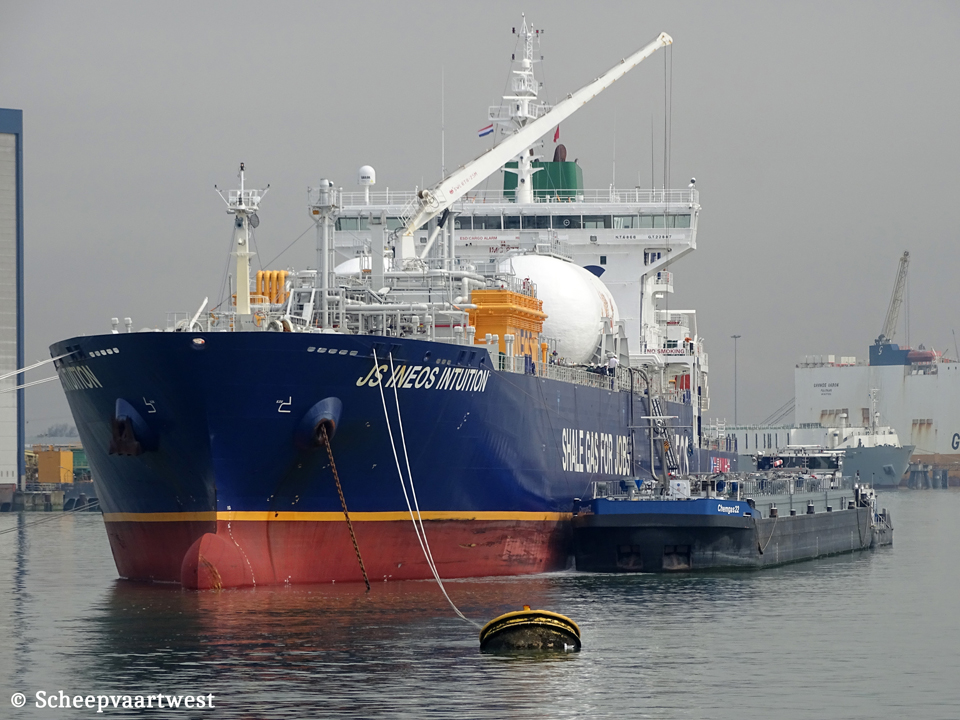

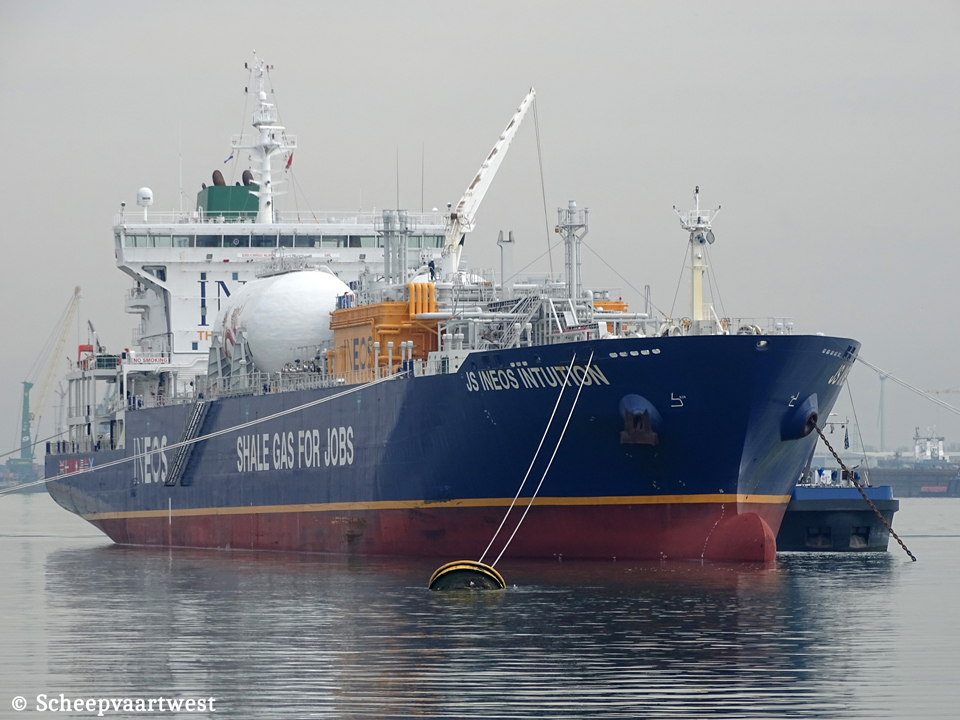

JS INEOS INTUITION |
|
Previous names |
2016 build as: JS Ineos Independence |
|
Type |
Liquefied gas carrier LPG-LNG combination gas tanker |
|
IMO-number |
9771523 |
|
Call sign |
9HA4285 |
|
Flag |
Valletta |
|
Port of registry |
Malta |
|
GT |
22.887 t |
|
DWT |
Summer: 20.715,90 t Winter: 19.8944,30 t Suez: 24.966,94 t |
|
NT |
6.866 t Suez: 21.589,49 t |
|
Displacement |
Summer: 32.087,90 t Winter: 31.266,30 t |
|
Length |
180,30 m overall 170,80 m between perpendiculars |
|
Breadth |
26,60 m extreme |
|
Draught |
Summer: 9,40 m Winter: 9,20 m |
|
Keel to mast end |
46,40 m |
|
Air draft |
37,10 m |
|
Distance bow to bridge |
142,68 m |
|
Freeboard |
Summer: 5.411 mm Winter: 5.610 mm |
|
Depth |
17,80 m moulded |
|
Speed |
Service: 14,0 knots Max: 16,7 knots |
|
Built |
2017 |
|
Date of completion |
31/03/2017 |
|
Builder |
Jiangsu New Yangzi Shipbuilding Co., Ltd. China |
|
Yard number |
YZJ2015-1183 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
Diesel & LNG powered 2x Wärtsilä 6L50DF B Tire II - 4 stroke 6 cylinder 500 x 580 mm combustion engines Mcr 5.850 kW at 514 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 87,0 rpm |
|
Boilers |
1x CHO 18,90 m² - 9,0 bar 2x CHR 56,00 m² - 10,0 bar |
|
Generators |
2x Wärtsilä 6L20DF main diesel generatorsets each 1.325 kVA - 1.060 kW - 1.508 hp |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 253 hp |
|
Number of cargo tanks |
3 |
|
Cargo tank capacity 100% |
Tank1 : 8.192,32 m³ Tank 2: 9.684,47 m³ Tank 3: 9.684,59 m³ Total liquid: 27.560,39 m³ |
|
Number of pumps |
6x Cargo deepwell pumps each 250 m³/h Number of main cargo pumps per tank: 2 |
|
Manifolds |
Distance bow to vapour line: 96,40 m Distance stern to vapour line: 83,90 m Distance of presentation flange from ship side: 4.125 mm Height above main deck: 2.150 mm Height above ballast waterline: 13,440 mm Height above laden waterline: 10.560 mm |
|
Tank capacities |
Fuel oil: 1.261,2 m³ Diesel oil: 491,7 m³ Gas oil: 442,8 m³ Ballast: 8.505 m³ |
|
Commercial manager |
Greenship Gas SASU 30, rue Pasteur 92150 Suresnes France |
|
ISM manager |
Evergas Ship Management Pte Ltd. 08-29, Paya Lebar Square, 60, Paya Lebar Road Singapore 409051 Republic of Singapore |
|
Registered owner |
Great Intuition Ltd. Of Trust Company Complex Care of Greenship Gas SASU 30, rue Pasteur 92150 Suresnes France |
|
Latest data adjustment |
11 January 2023 |
