| Vlissingen 18 August 2017 |
 |
|
| Westerschelde 18//08/17 | |
|
Name |

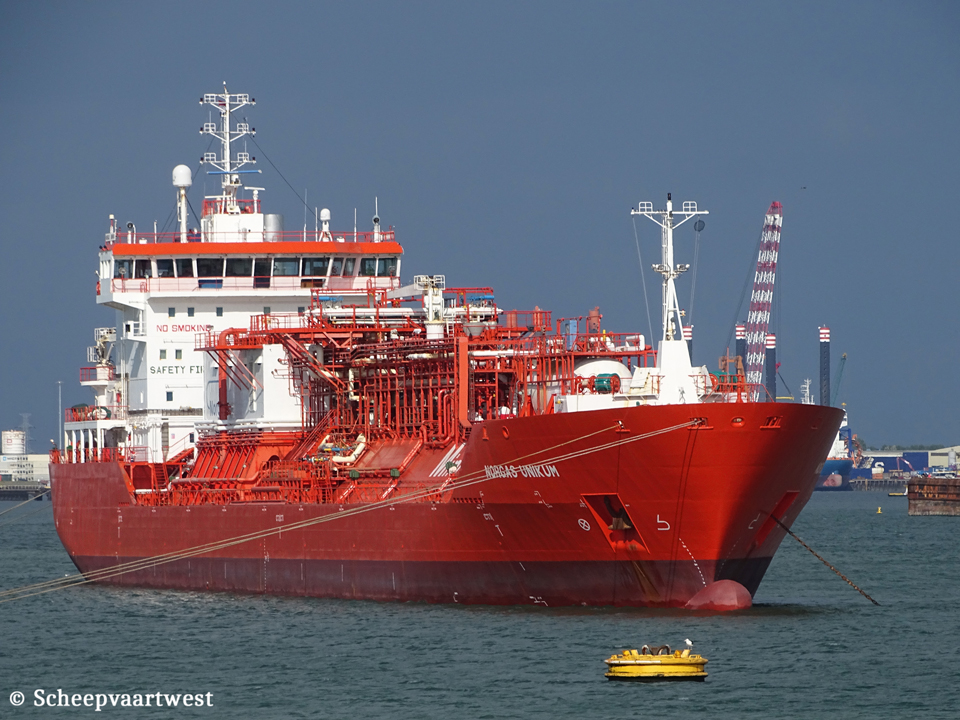

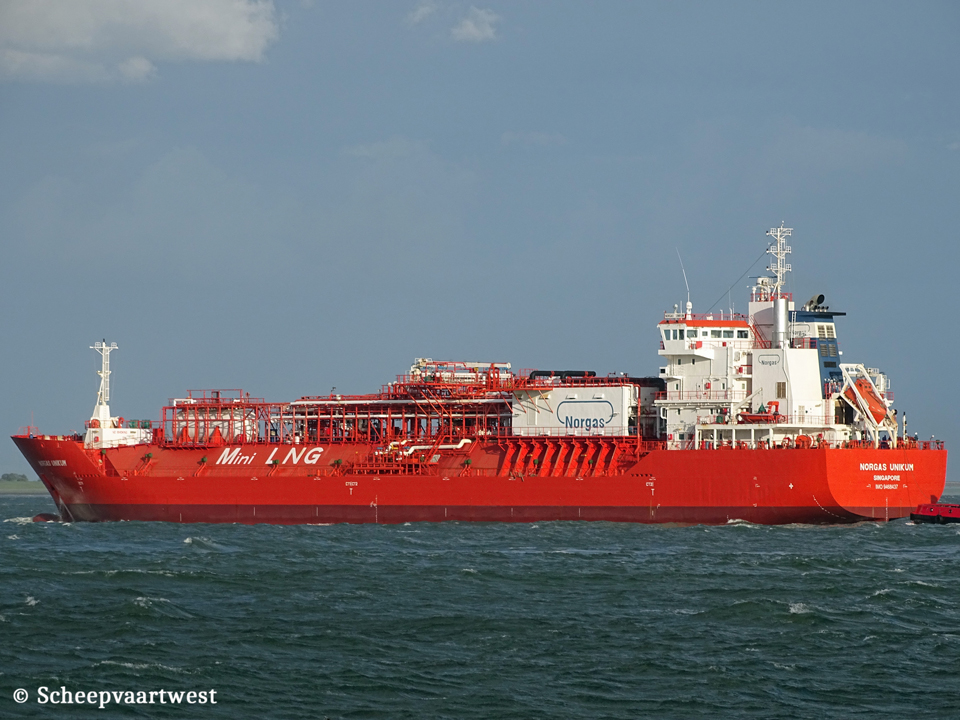

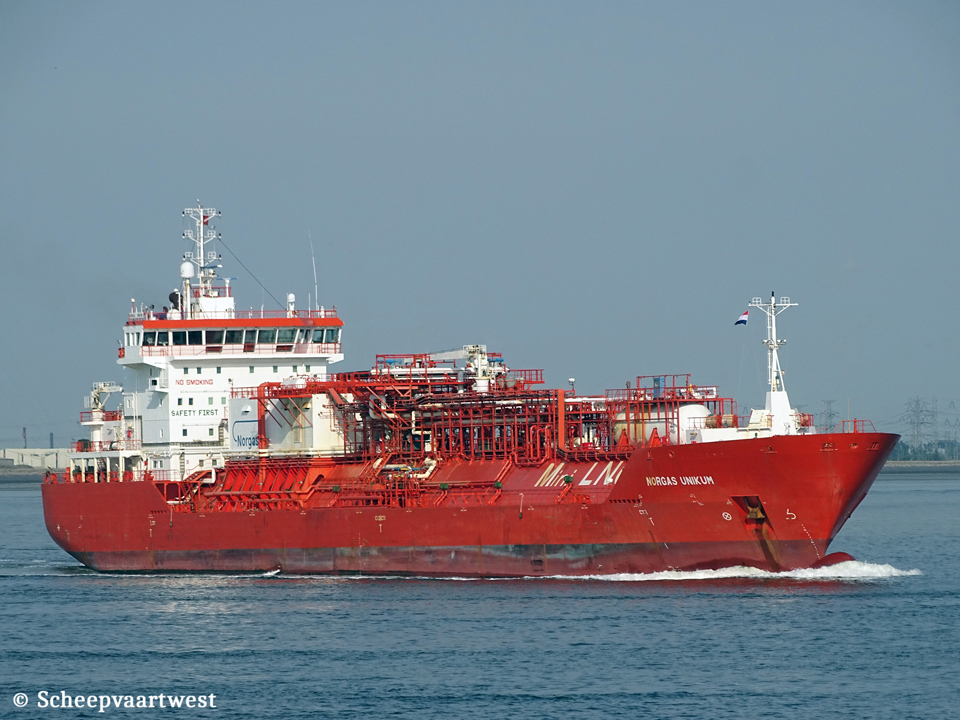

NORGAS UNIKUM |
|
Type |
Liquefied gas tanker - LNG |
|
IMO-number |
9468437 |
|
Call sign |
9V8563 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
11.327 t |
|
DWT |
12.210,4 t |
|
NT |
3.399 t |
|
Length |
152,16 m overall 142,36 m between perpendiculars |
|
Breadth |
19,84 m extreme |
|
Draught |
Summer: 8,30 m |
|
Keel to mast end |
39,19 m |
|
Depth |
11,50 m |
|
Speed |
Max: 16,5 knots Service: 11,8 knots |
|
Built |
2011 |
|
Keel laid |
01/11/2008 |
|
Launch date |
17/09/2010 |
|
Date of completion |
10/03/2011 |
|
Builder |
Dingheng Jiangsu Shipbuilding Co., Ltd. Jiangdu China |
|
Yard number |
DHJS2007-001 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x STX/MAN-B&W 6S46MC-C8 - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 8.280 kW / 11.257 bhp at 129,0 rpm Manufacturer: STX Engine Co. Ltd, Changwon - South Korea |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated - 7,0 bar Heating surface: 90 m² 1x Thermal oil heater, oil fired - 7,0 bar Heating surface: 77 m² |
|
Shaft generator |
1x 1.900 kW / 2.375 kVA |
|
Generators |
3x Caterpillar 3508B main diesel generatorsets each 960 kW / 1.138 kVA |
|
Emergency generator |
1x Deutz TBD234V6 diesel generatorset 150 kW / 187,5 kVA |
|
Bow thruster |
1x Brunvoll FU 63 LTC 1550 - 700 kW, forward |
|
Number of cargo tanks |
2 |
|
Cargo tanks capacity |
Liquid: 11.782 m³ |
|
Number of pumps |
1x Cargo pump 640 m³/h 1x Cargo pump 380 m³/h |
|
Max tank pressure |
5,2 bar |
|
Min temp |
-163°C |
|
Tank capacities |
Ballast: 6.781 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
|
Operator |
Norgas Carriers Pte. Ltd. |
|
Owner |
I. M. Skaugen Marine Services Pte. Ltd. Republic of Singapore. |
|
Renamed |
2018 Unikum Spirit Bahamas, Nassau - Call sign: C6ZI8 Manager: Lauritzen Kosan A/S, 2900 Hellerup - Denmark Registered owner: DHJS Hull NO 2007-001 LLC 2022 - 2023 Seapeak Unikum Bahamas, Nassau - Call sign: C6ZI8 2023 Titan Unikum Cyprus, Limassol - Call sing: 5BEV6 Owner: ALM Shipping Ltd. Operator: OSM Tanker Management Pte. Ltd. - Republic of Singapore |
|
Latest data adjustment |
25 June 2024 |
