| Westerschelde 12 June 2017 |
 |
|
| Westerschelde 12/06/17 | |
|
Name |

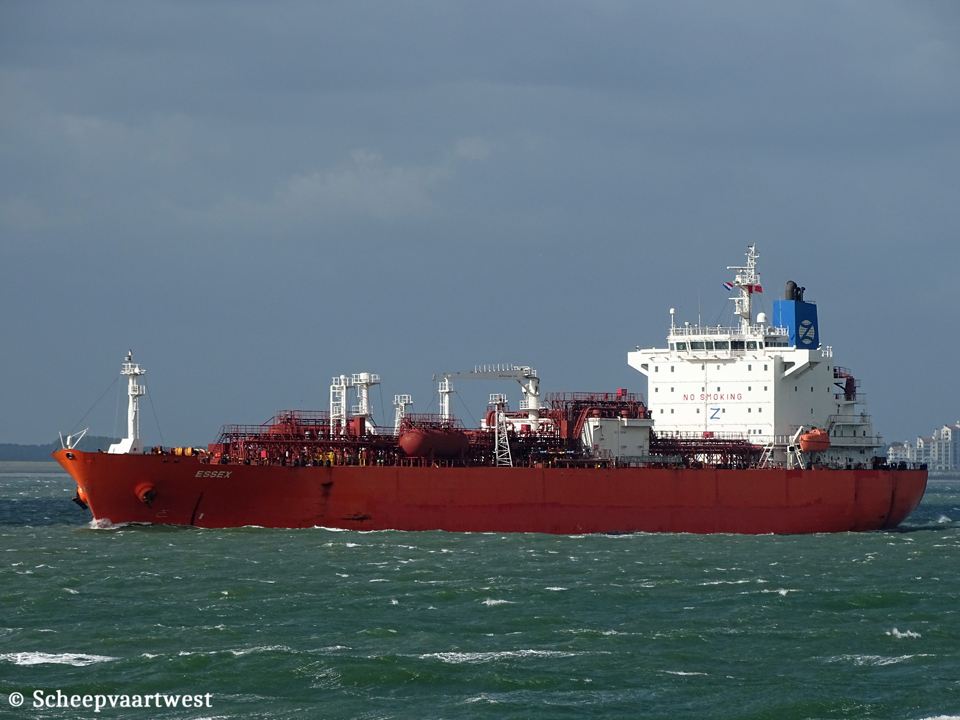

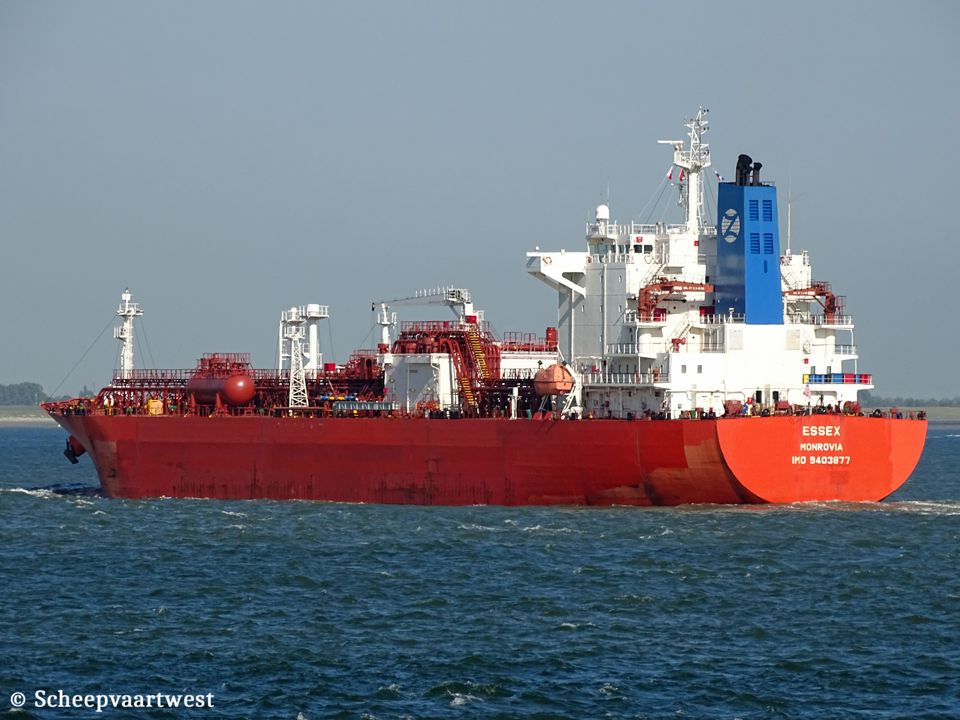

ESSEX |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9403877 |
|
Call sign |
A8TN9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
22.914 t |
|
DWT |
26.447 t |
|
NT |
6.874 t |
|
Length |
174,20 m overall 165,00 m between perpendiculars |
|
Breadth |
28,00 m moulded |
|
Draught |
Summer: 10,42 m |
|
Depth |
17,80 m moulded |
|
Speed |
Max: 16,7 knots Service: 14,0 knots |
|
Build |
2009 |
|
Keel laid |
15/06/2009 |
|
Date of completion |
09/11/2009 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
1967 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Double Bottom |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S60MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine: Mcr 9.480 kW / 12.889 hp at 127,0 rpm Csr: 8.058 kW / 10.956 hp Builder: Hyundai Heavy Industries Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 127,0 rpm |
|
Generators |
1x Hyundai 5H21/32 - 4 Stroke 5 cylinder. 210 x 320 mm diesel engine Mcr 780 kW connected with generator 730 kW / 450 Volt 60 Hz 2x Hyundai 6H21/32 - 4 Stroke 6 cylinder. 210 x 320 mm diesel engine each Mcr 960 kW connected with generator each 900 kW / 450 Volt 60 Hz |
|
Number of tanks |
3 |
|
Cargo tank capacity |
Liquid: 34.557 m³ |
|
Number of pumps |
6x Cargo pumps each 400 m³/h |
|
Min temp |
-48°C |
|
Tank capacities |
Fuel oil: 1.455 m³ Diesel oil: 227 m³ |
|
Manager |
Zodiac Maritime Ltd. London United Kingdom |
|
Registered owner |
Harrison Star Navigation Inc. 80, Broad Street Monrovia Liberia |
|
Latest data adjustment |
15 October 2024 |
