| Zeebrugge 21 january 2006 |
|
Name |
EPSOM |
|
Location |

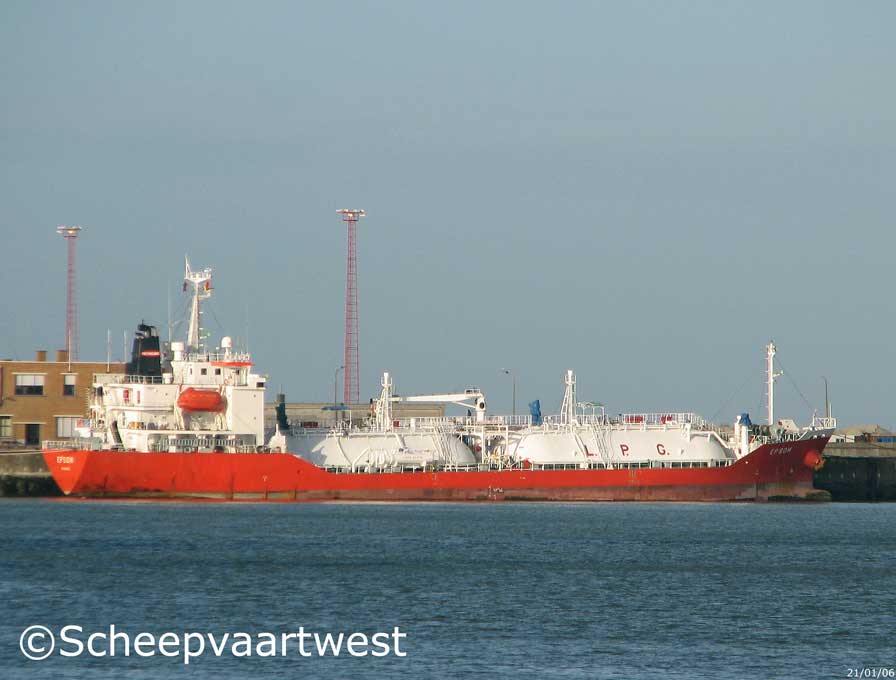

Zeebrugge 21 January 2006 moored to quay 102 'Leopold II Dam' |
|
Type |
Liquefied Gas tanker - LPG |
|
IMO-number |
9191785 |
|
Classification |
Nippon Kaiji Kyokai |
|
Call sign |
3FVE8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
4.490 t registered |
|
DWT |
5.214 t |
|
NT |
1.347 t registered |
|
Length |
99,93 m overall |
|
Breadth |
19,60 m |
|
Moulded L x B x D |
94,90 x 19,60 x 7,70 m |
|
Registered L x B x D |
94,91 x 19,60 x 7,70 m |
|
Draught |
Summer: 5,65 m |
|
Freeboard |
Summer: 2.030 mm |
|
Depth |
7,70 m |
|
Speed |
Service:14,0 knots Trial: 18,8 knots |
|
Built |
1998 |
|
Keel laid |
27/04/1998 |
|
Launch date |
09/07/1998 |
|
Date of completion |
30/09/1998 |
|
Builder |
Higaki Zosen K.K. Shipbuilding Imabari Japan |
|
Yard number |
498 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hanshin/MAN-B&W 6L35MC - 2 stroke single acting 6 cylinder 350 x 1.050 mm combustion engine 3.883 kW / 5.279 hp at 210,0 rpm Manufacturer: The Hanshin Diesel Works, Ltd. |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,15 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 510 kVA |
|
Cargo tank capacity |
5.029 m³ |
|
Tank capacities |
Fuel oil: 711 m³ Fresh water: 209 m³ Water ballast: 2.391 m³ |
|
Lifting equipment |
1x Crane - SWL 0,9 t 1x Crane - SWL 3,0 t |
|
Radio installations |
GMDSS A1+A2+A3: Global Maritime Distress Safety System |
|
Navigation equipment |
GYRO: Gyro Compass HCS: Heading Control System ECDIS: Electronic Chart Display and Infermation System GPS: GPS Receiver RDX: 9 GHz Radar ES: Echo Sounder LRIT: Long Range Identification and Tracking of Ships |
|
Manager |
Bernhard Schulte Shipmanagement (Singapore) Pte., Ltd. |
|
Owner |
Epsom Shipping Ltd. Panama City Republic of Panama |
|
Registered owner |
Aegean Enterprises Inc. |
|
Renamed |
2013 - 2018 Epic St John Republic of Panama, Panama City - Call sign: 3FVE8 Owner & manager: Epic Shipmanagement Pte Ltd. , Singapore - Republic of Singapore |
|
Latest data adjustment |
29 February 2024 |
