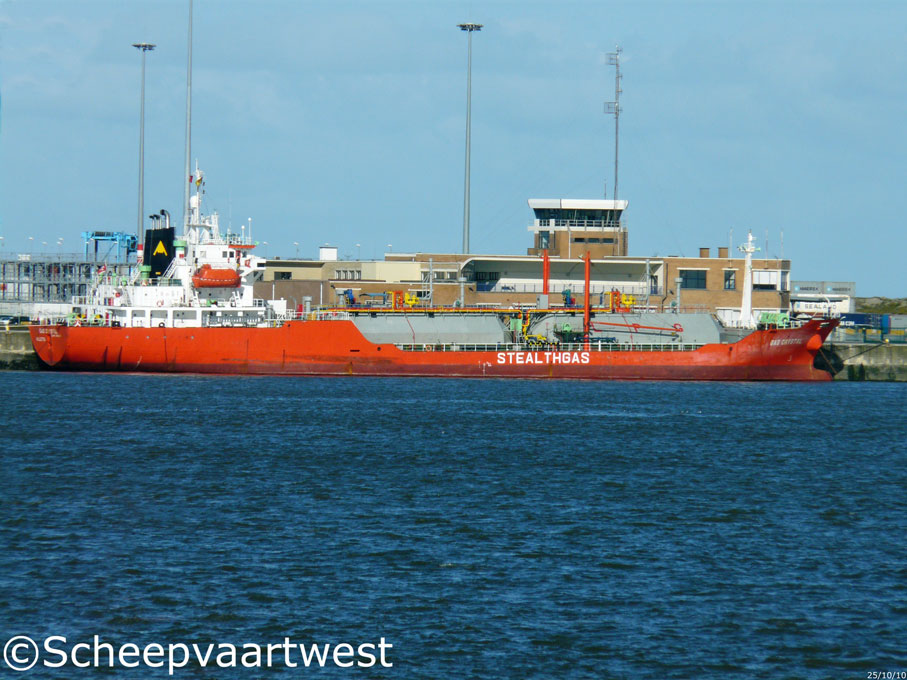

| Zeebrugge 25 October 2010 |
|
Name |
GAS CRYSTAL |
|
Type |
Liquefied gas tanker |
|
IMO-number |
8913215 |
|
Call sign |
9HWO7 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
3.888 t Suez: 4.231,43 t Panama: 4.301,84 t |
|
DWT |
4.298 t |
|
NT |
Suez: 3.420,85 t Panama: 2.824,30 t |
|
Length |
106,50 m overall |
|
Breadth |
16,02 m |
|
Draught |
Summer: 5,764 m corresponding to summer DWT 4.298,53 t |
|
Depth |
7,20 m |
|
Speed |
12,5 knots |
|
Built |
1990 |
|
Date on service |
24.06.1990 |
|
Builder |
Shinhama Dockyard |
|
Hull type |
Double hull |
|
Main engine |
1x Kobe diesel type 6UE37LA - 6 cylinder diesel engine - 3.780 hp at 203 rpm |
|
Boiler |
1x VWH 600E - 8,2 kg/cm² Evaporation: 600 kg/h Feed Water Temp.: 60 °C |
|
Generators |
2x Yanmar S 185 It engines driving 2 Taiyo Electric Mfg. Co. Ltd. And FE4 1B-8 generators |
|
Emergency generator |
1x Deutz Mitsui F3L 912 diesel generatoset |
|
Exhaust economiser |
1x KF – 116 M-1 / Miura Co. Ltd. Evaporation: 116,3 heating area |
|
Main air compressors |
2x MH – 108 / Matsubara Iron Works |
|
Fuel oil purifier |
2x SJ – 16T / Mitsubishi Capacity: 1.900 l/h |
|
Lub oil purifier |
1x SJ – 11T / Mitsubishi Capacity: 1.450 l/h |
|
Evaporator |
WM – 10M / Miura Co. Ltd. Capacity: 10,0 t/day |
|
Cargo pumps |
2x Shinko - Vertical type 4-stage volute pump with inducer 110 kW each Capacity: 250 m³/h at 120 head Speed: 1.750 rpm |
|
Booster pump |
Shinko - Horizontal single stage volute pump Capacity: 250 m³/h |
|
Cargo compressor |
2x 2-row, 2 stage non lub. Water cooled Rated: 110 kW Stroke: 150 mm Max discharge pressure: 28,0 kg/cm² No of Revolution:s 585 rpm Make: Suction Gas Engine Mfg Co. Ltd |
|
Cooling cap. LPG condenser |
Seo Koatsu Kogyo / Shell and tube horizontal - 120 m³/h |
|
Cargo heater |
Type: Horizontal shell and tube Inside Diameter: 650 mm Overall length: 6.642 mm Cargo flow rate: 150 m³/h Min Inlet Temp.: - 48 °C Min Outlet Temp.: 0 °C Required Sea water Capacity 412 m³/h Design Pressure 22 kg/cm² |
|
Cargo manifolds |
Distance from stern (AP) (S / P): 61,90 m Distance form stem (FP) (S / P): 44,60 m Height above deck : 1,55 m for Liquid manifold Distance from ship’s rail : 2,10 m Underside keel to manifold : 8,75 m |
|
Tank capacities |
HFO: 579,16 m³ MGO: 101,16 m³ Fresh Water: 187,68 m³ |
|
Lifting equipment |
2x Cranes - SWL 3,0 t each Situated: (Port & Stbd) at manifold midship Working radius: 3,50 m |
|
Crew |
16 |
|
Operator |
Stealthgas Inc |
|
Owner |
Iceland Ltd. |
|
Scrapped |
03.2015 sold to scrap yard Chittagong - Bangladesh |
|
Latest data adjustment |
02 April 2015 |
