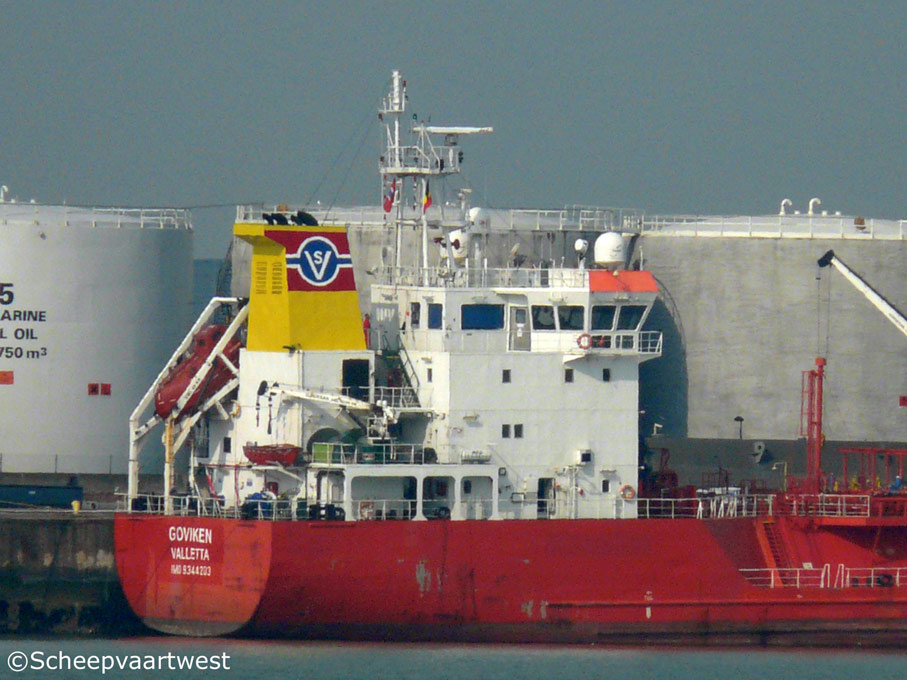

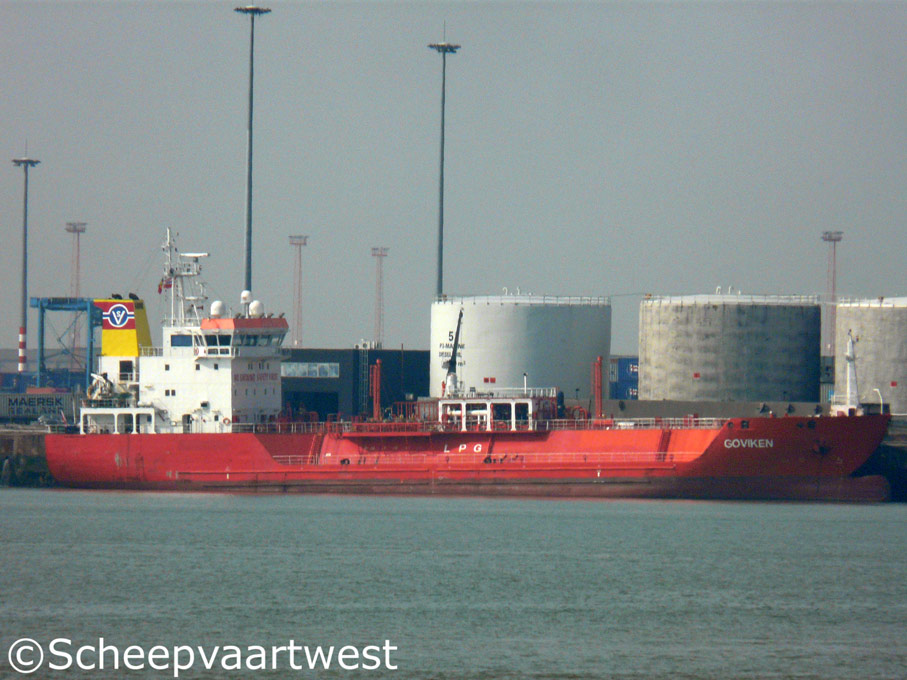

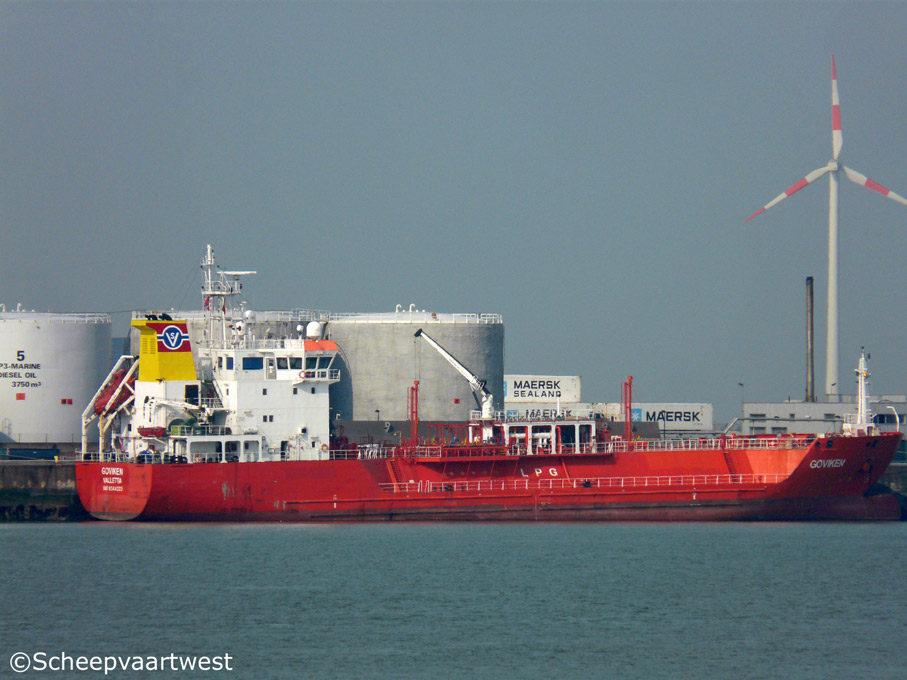

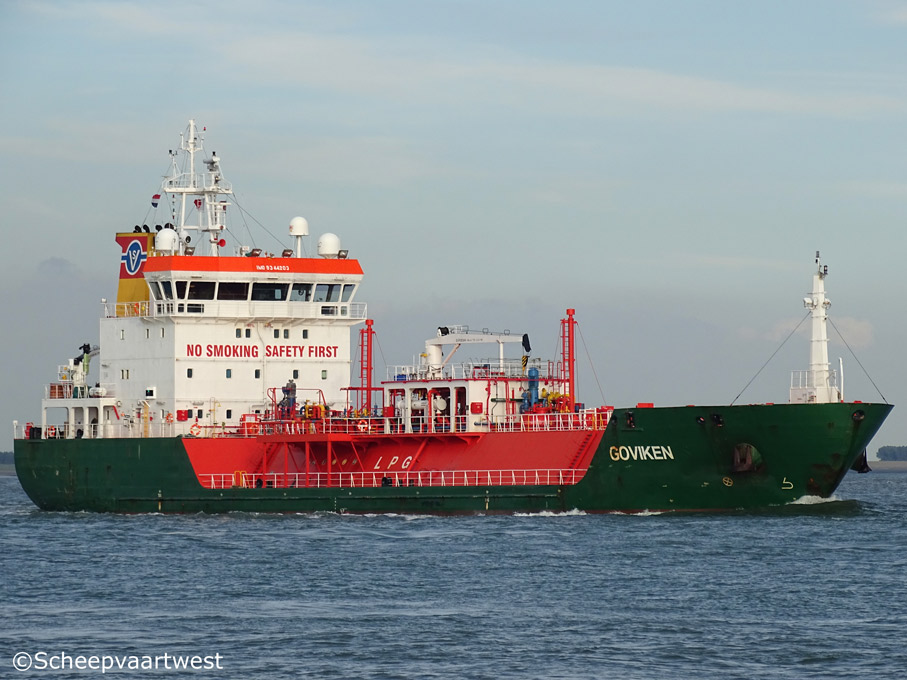

Goviken - IMO 9344203

Name

GOVIKEN

Previous names

09.11.2007 - 15.03.2011 Halcyon Star

Type

Liquefied petroleum gas carrier

IMO-number

9344203

Call sign

9HA2718

Flag

Republic of Malta

Port of registry

Valletta

Previous flags

09.11.2007 - 15.03.2011 Republic of Portugal, Madeira

GT

3.430 t registered

Suez: 3.932,88 t

DWT

3.801 t

NT

1.029 t

Panama: 2.939 t

Suez: 3.054,77 t

Length

87,20 m overall

82,50 m between perpendiculars

Breadth

14,80 m moulded

Draught

Summer: 6,50 m

Freeboard

1.310 mm

Depth

7,80 m moulded

Speed

14,0 knots

Built

2007

Keel laid

15.09.2006

Launch date

02.04.2007

Gate of completion

31.05.2007

Builder

Madenci Gemi San Ltd Sti Shipyard
Istanbul
Turkey

Yard number

033

Hull material

Ordinary strength steel

High strength steel

Hull type

Single hull

Bulkheads

Non tight: 6

Water tight: 31

Gas tight: 1

Oil tight: 2

Main engine

1x MAN B&W 6L27/38 - 6 cylinder 270 x 380 mm diesel engine - 2.040 kW at 800 rpm

Manufacturer : MAN B&W Alpha Diesel A/S

Propeller

1x Bronze VBS980

Manufacturer: MAN B&W ALPHA DIESEL A/S

Steam piping system

1x Steam generator GMT V80 - 12,0 bar

Manufacturer: Garioni Naval SRL.

Shaft generator

1x HC.M634H2 - 650,4 kW

Manufacturer: Newage International LTD.

Generators

3x Leroy Somer LSA 52.2 VS40/8p main generators each 360 kW

Manufacturer: Leroy Somer

Min. cargo temperature

-48°C

Max. cargo pressure

9,97 bar

Cargo capacity

3.227,64 m³

Number of tanks

Ballast: 17

Fuel oil: 7

Lubricating oil: 4

Diesel oil: 4

Fresh water: 3

Chain: 2

Sludge: 2

Sea water: 1

Waste water: 1

Tank capacities

Diesel oil: 96,52 m³ / 81,07 t

Fresh water: 99,83 m³

Fuel oil: 339,64 m³ / 326,20 t

Lube oil: 27,78 m³ /25,40 t

Ballast: 1.671,65 m³ / 1713,44 t

Crew

15

Operator

Wallem Shipmanagement Norway AS
Allehelgensgt. 4, 3RD Floor
5892 Bergen
Norway

Registered owner

Viken LPG AS
Ervikveien 24
5106, Øvre Ervik
Norway

Latest data adjustment

08 September 2016
