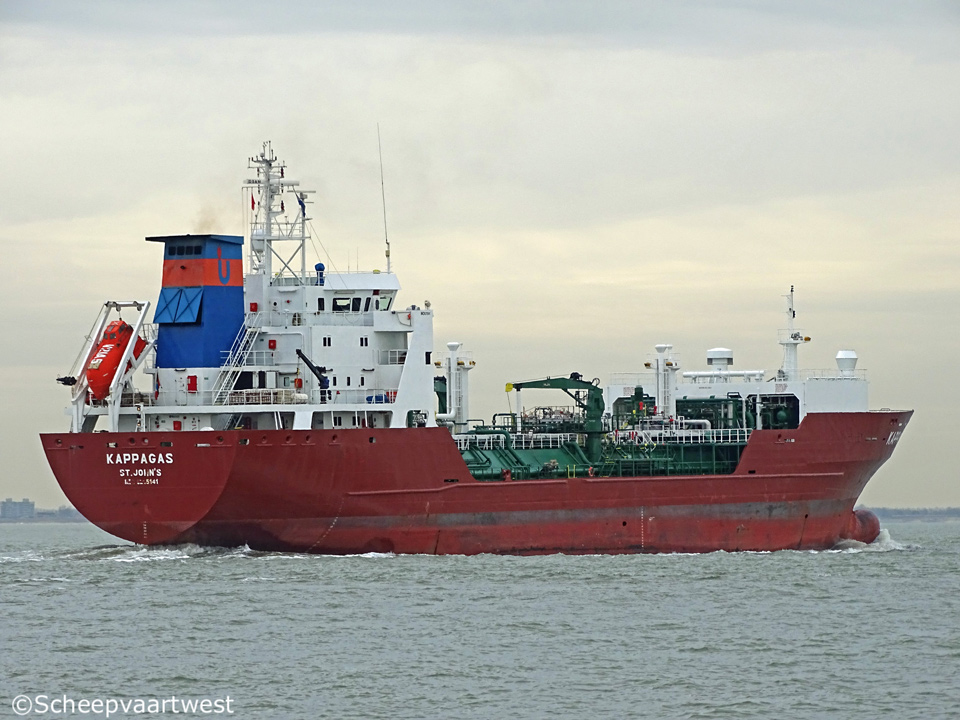

| Westerschelde 01 September 2020 |
 |
 |
 |
 |
 |
 |
|||||

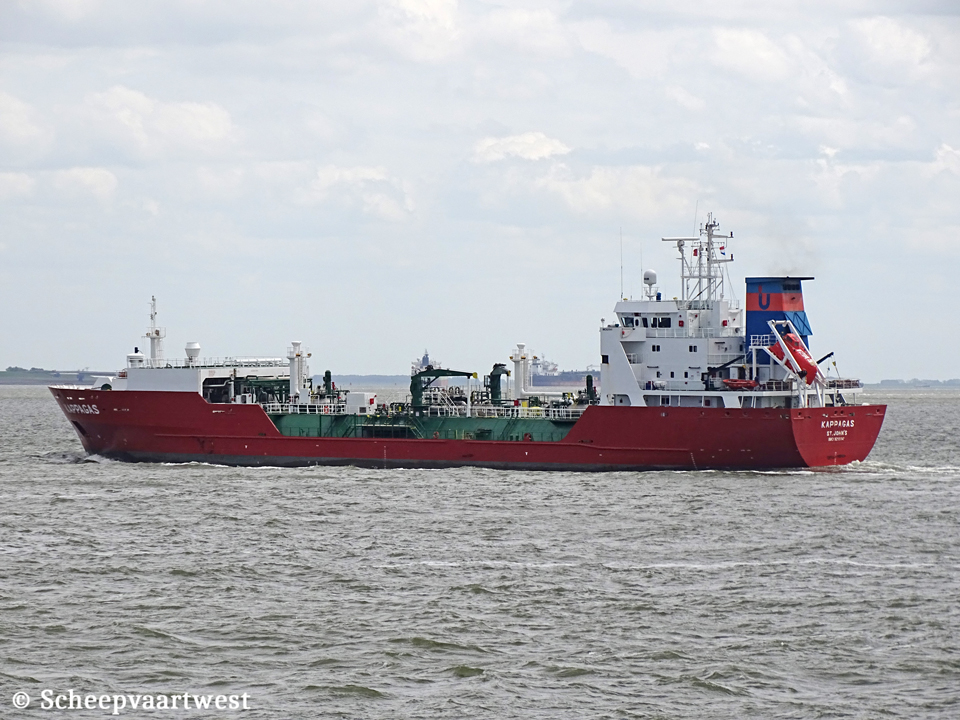

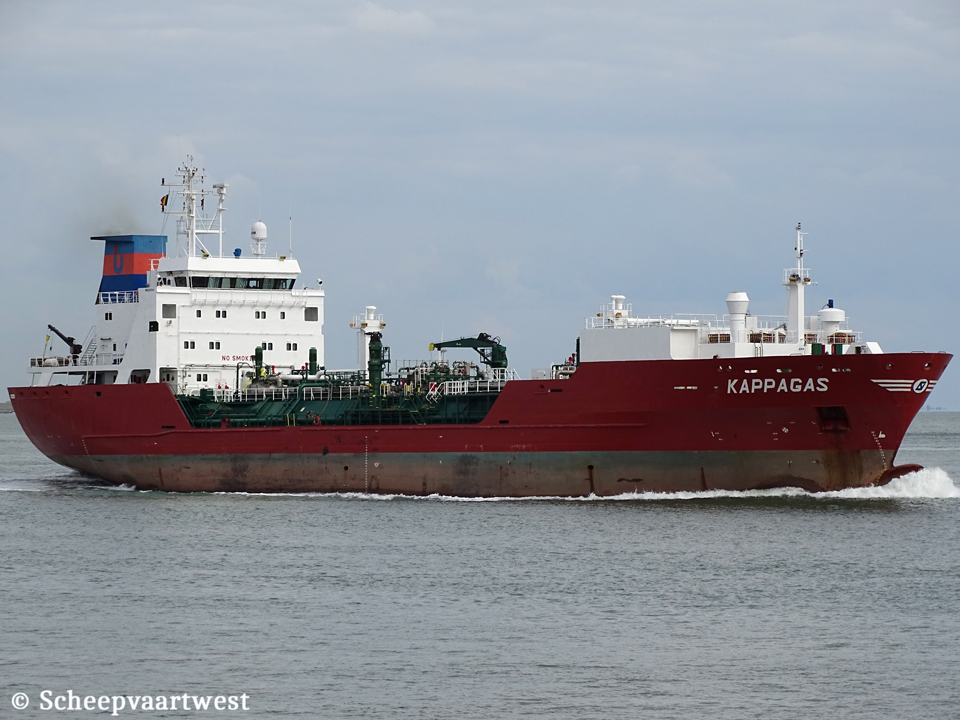

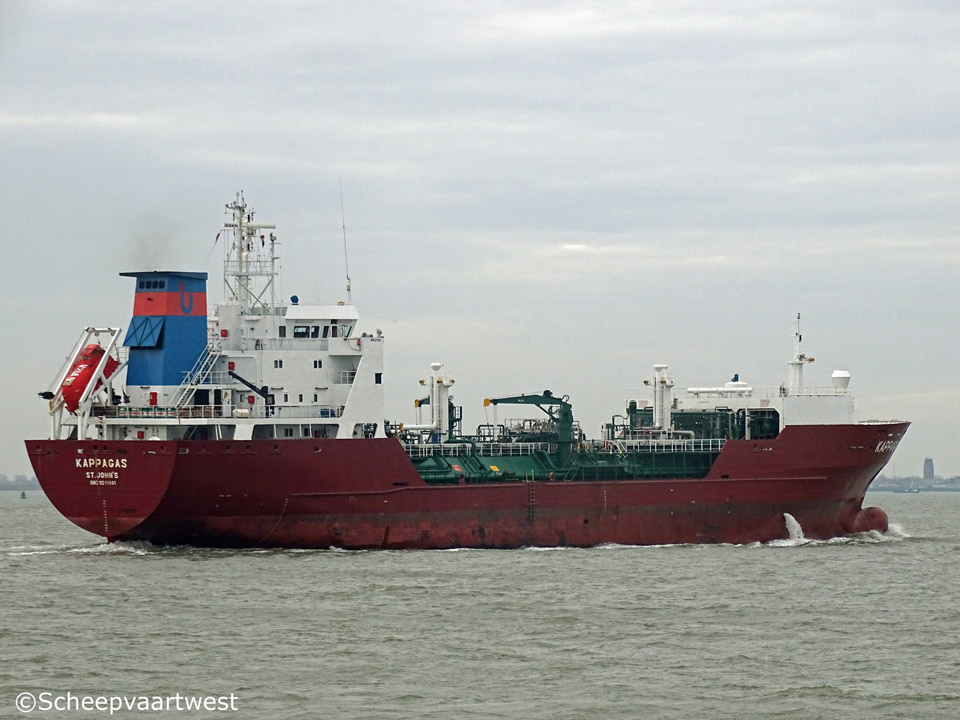

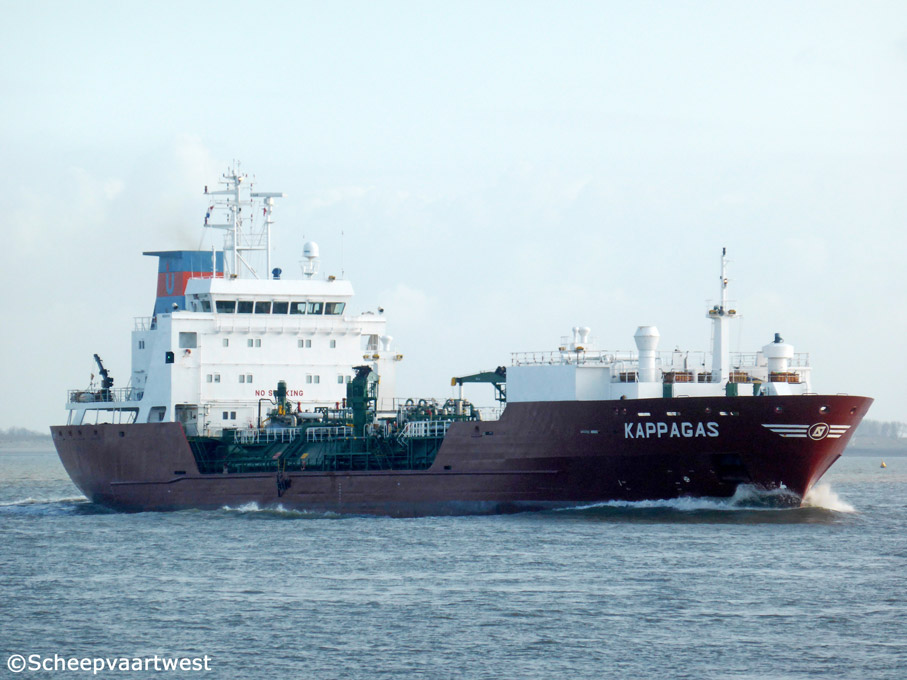

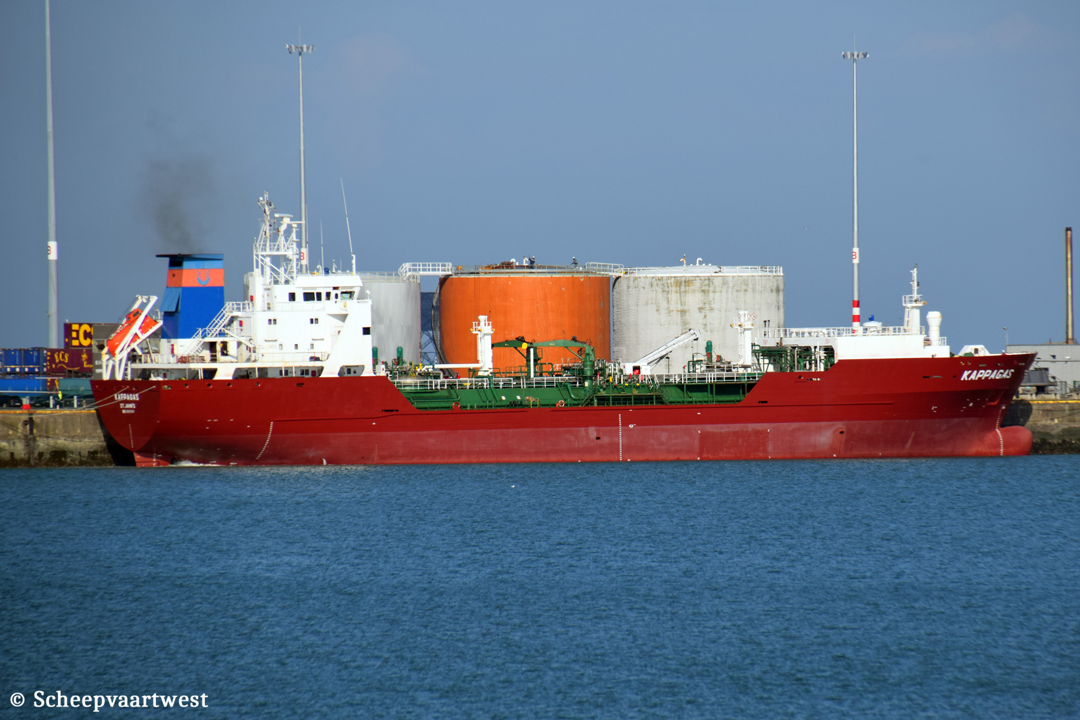

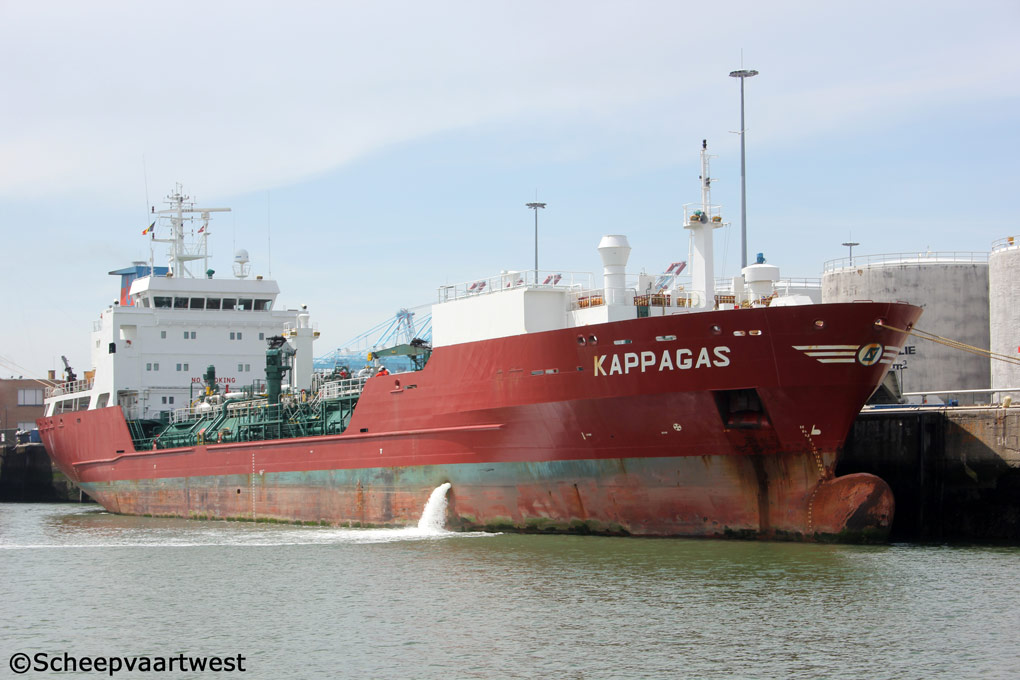

| Westerschelde 30/03/18 | Westerschelde 30/03/18 | Westerschelde 27/01/15 | Zeebrugge 25/10/24 | Zeebrugge 17/07/13 | Zeebrugge 17/07/13 | |||||
 |
 |
 |
||

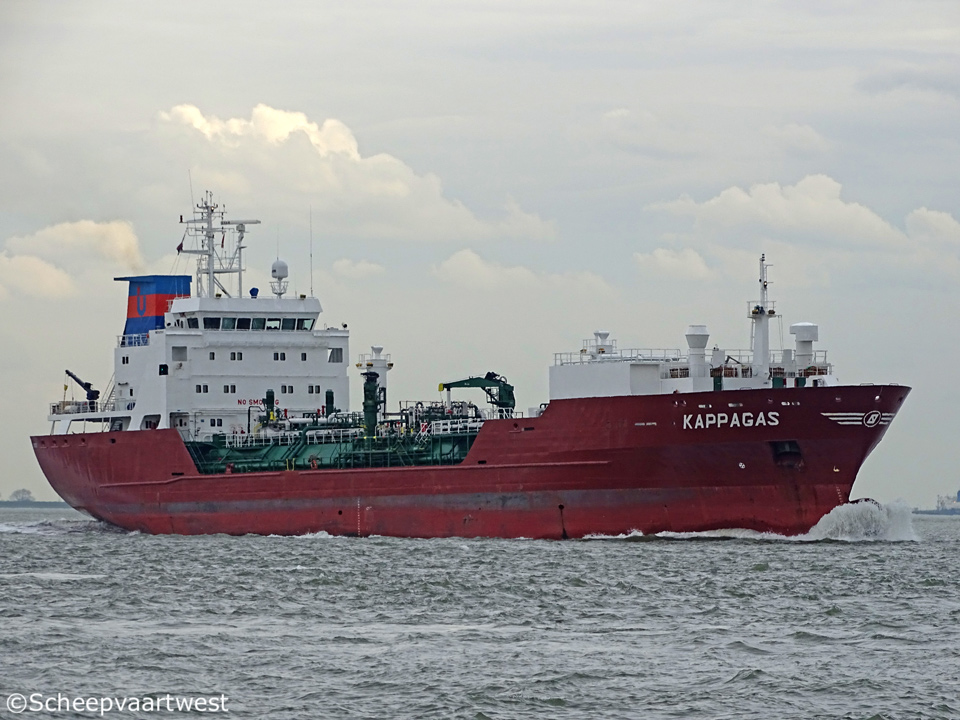

| Westerschelde 19/12/15 | Westerschelde 30/04/20 | Westerschelde 30/04/20 | ||
|

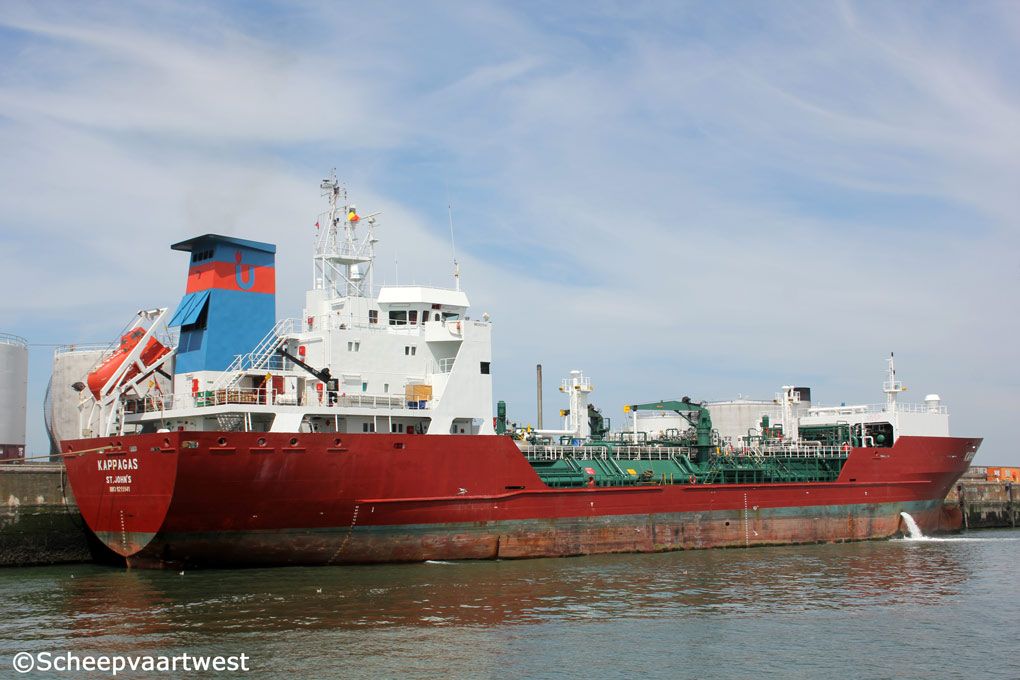

KAPPAGAS |
|
|
Type |
Liquefied gas tanker |
|
IMO-number |
9215141 |
|
Call sign |
V2IA5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
5.278 t |
|
DWT |
4.995 t |
|
NT |
1.583 t |
|
Length |
107,86 m overall 101,26 m registered |
|
Breadth |
17,08 m extreme 16,80 m registered |
|
Draught |
6,66 m |
|
Keel to mast end |
32,00 m |
|
Forecastle |
10,66 m |
|
Poop |
20,40 m |
|
Freeboard |
1.960 mm |
|
Depth |
9,40 m moulded |
|
Speed |
16,0 knots |
|
Built |
2001 |
|
Keel laid |
10/12/1999 |
|
Launch date |
22/02/2001 |
|
Date of completion |
01/07/2001 |
|
Builder |
Santierul Naval Constanta S.A. Incinta Port 1 900900 Constanta Romania |
|
Yard number |
524 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M32 - 4 stroke 9 cylinder 320 x 480 mm combustion engine 4.320 kW / 5.873 hp at 600 rpm Year of manufacture: 2000 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 183 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 37,50 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 110,40 m² Year of manufacture: 2000 Manufacturer: PWT Prozesswärmeträgertechnik GmbH Max-Weber-Str. 10 25451 Quickborn Federal Republic of Germany |
|
Electric installations |
4x Plants each 440/220 V - 893 kVA 1x Plant 440 V - 131 kVA |
|
Generators |
4x Caterpillar 3508 main diesel generatorsets each 893 kVA |
|
Emergency generator |
1x Caterpillar 3304 diesel generatorset 131 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 450 kW, forward |
|
Number of cargo tanks |
2 |
|
Cargo gas capacity |
5.600 m³ |
|
Min. temp. |
-104°C |
|
Max. pressure |
5,8 bar |
|
Max. load & discharge |
900 m³/h |
|
Number of pumps |
3x Cargo pumps each 300 m³/h 1x Cargo pump 250 m³/h |
|
Tank capacities |
Fuel: 544 m³ Ballast water: 1.324,2 m³ |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 495,00 m Diameter: 44 mm |
|
Crew |
15 |
|
ISM & commercial manager |
Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstr. 44 28195 Bremen Federal Republic of Germany |
|
Operator |
Unigas International Grotiushuis, 6th floor Westblaak 41 3012 KD Rotterdam The Netherlands |
|
Registered owner |
Partenreederei MT "KAPPAGAS" Care of Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstrasse 44 28195 Bremen Germany |
|
Latest data adjustment |
09 June 2022 |
