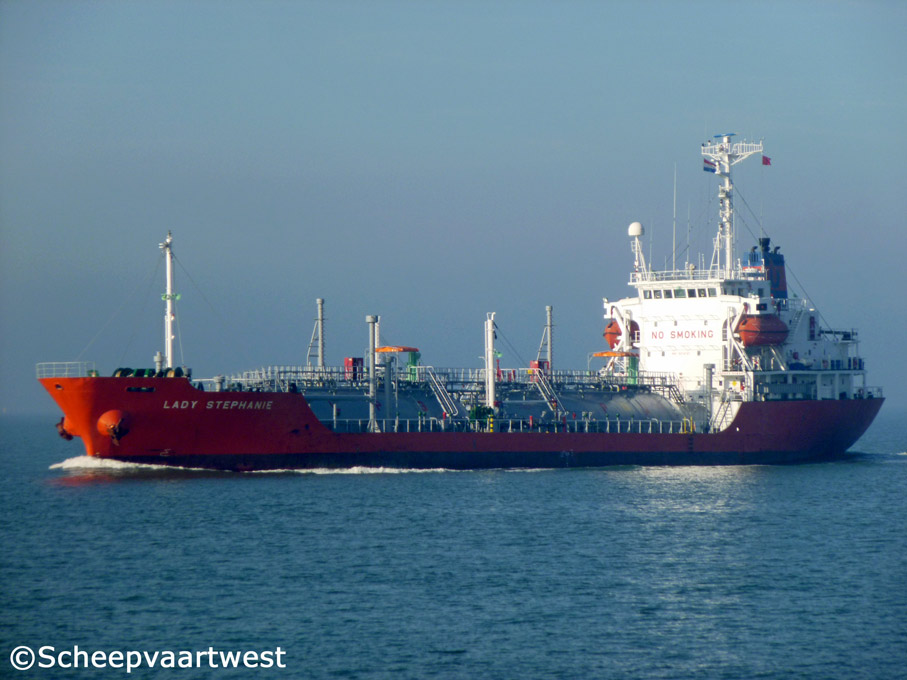

Lady Stephanie 06
Westerschelde 07 October 2013

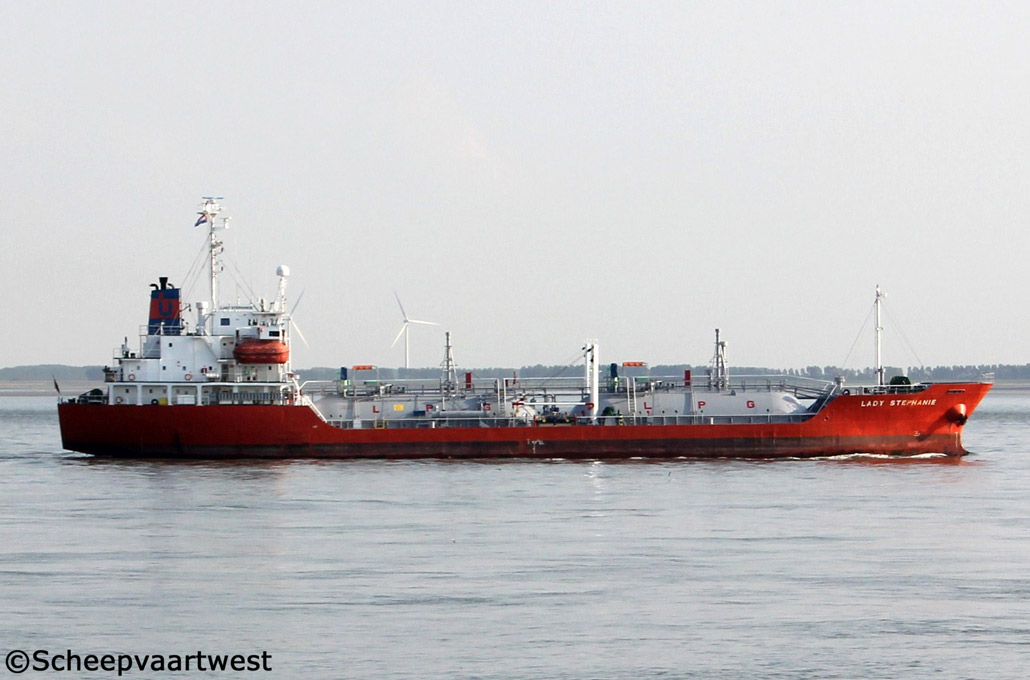

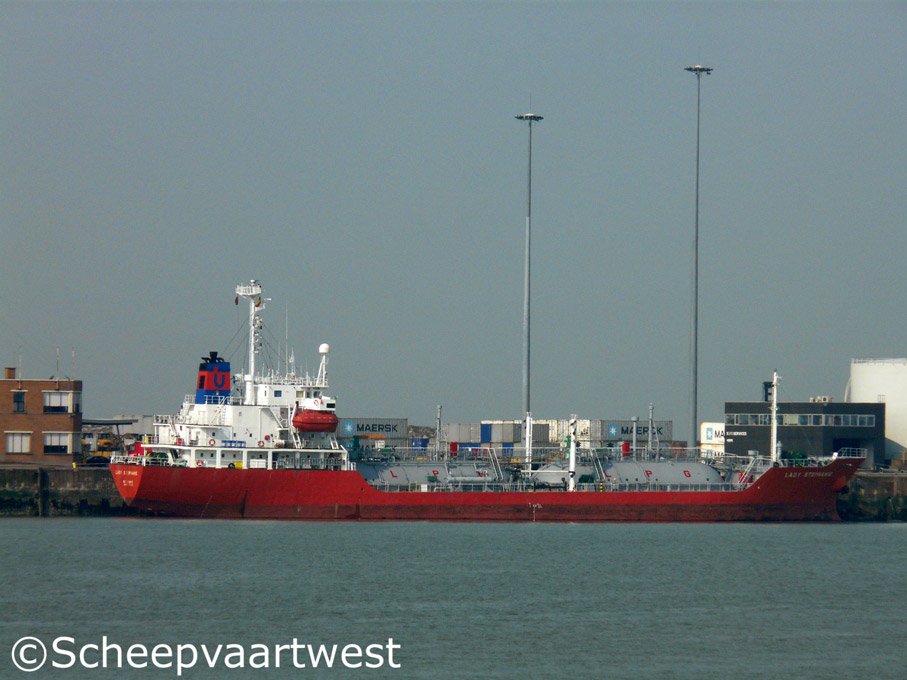

Lady Stephanie 05   Lady Stephanie 07
Zeebrugge 25/03/11 Westerschelde 20/08/13



Name

LADY STEPHANIE

Type

Liquefied gas tanker

IMO-number

9014781

Call sign

V2BM9

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

3.393 t

DWT

Summer: 4.320,25 t

NT

1.018 t

Length

99,60 m registered

91,73 m between perpendiculars

Breadth

15,82 m

Draught

Summer: 5,76 m

Freeboard

1.570 mm

Depth

7,30 m

Speed

13,0 knots

Built

1991

Date of completion

25.05.1991

Builder

Shin Yamamoto Shipbuilding
Kochi
Japan

Yard number

330

Hull material

Steel

Hull type

Single hull

Double Bottom

Watertight compartments

6

Continuous decks

1

Main engine

1x Mitsubishi - 2 stroke 6 cylinder 370 x 880 mm diesel engine - 2.427 kW / 3.297 hp at 195 rpm

Licence: Akasaka

Builder: Mitsubishi, Yonchi - Japan

Propelling system

1x Screw propeller solid at 195 rpm

Boilers

1x CHO MIURA 7,20 m² - 7,0 bar
1x CHR MIURA 75,70 m² - 9,5 bar

Electrical installation

Power voltage: 445 V

Lighting voltage: 105 V

Frequency: 60 Hz

Generators

2x Diesel generatorsets each 300 kVA - 240 kW - 360 hp

Emergency generators

1x Diesel generatorset 5 kVA - 4 kW - 8 hp

Total tank capacity

3.200 m³

Tank max. pressure

18,0 bar

Minimum temperature

0°C

Pumps

2x 600 m³/h

Fuel capacity

525 m³

Crew

15

Manager

Eurasia International GmbH
Nessestrasse 25
Leer
Germany

Operator

Unigas

Owner

Stephanie Shipping Co. Ltd.
