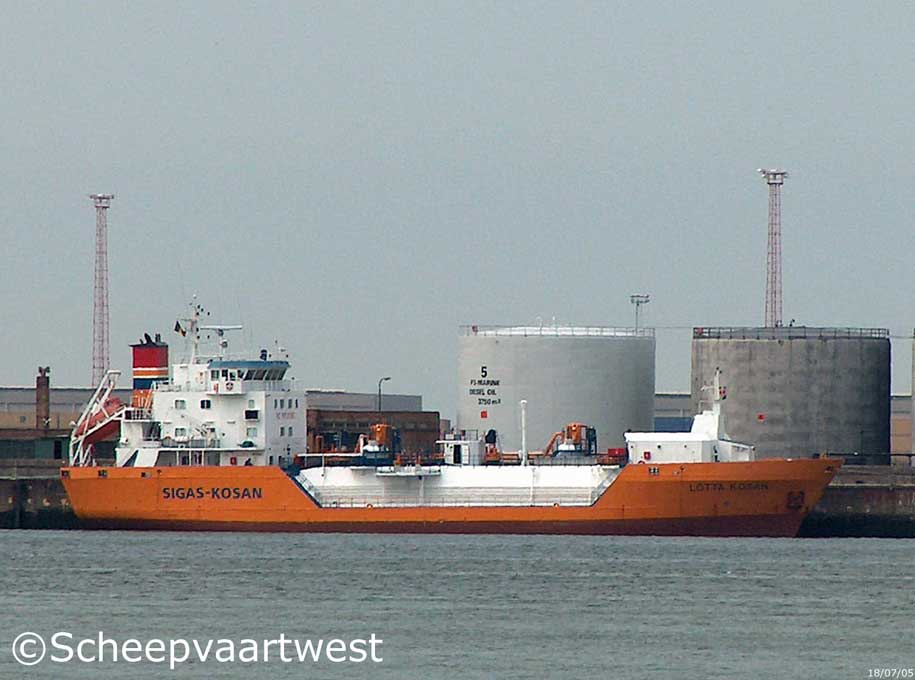

Lotta Kosan
Zeebrugge 18 July 2005



Name

LOTTA KOSAN

Type

Liquefied gas tanker / LPG

IMO-number

9034523

Call sign

VSOX5

Flag

United Kingdom

GT

2.223 t

DWT

2.004 t

NT

666 t

Length

73,60 m overall
66,55 m between perpendiculars

Breadth

14,02 m

Draught

Summer: 4,95 m

Air draft

21,90 m ballast

Depth

6,10 m

Speed

12,5 knots

Built

1992

Date of completion

17.12.1992

Builder

Hermann Surken
Papenburg
Germany

Yard number

377

Hull material

Steel

Hull type

Double hull

Watertight compartments

6

Continuous decks

2

Main engine

1x MAN-B&W - 4 stroke 6 cylinder 280 x 320 mm internal combustion engine - 1.470 kW / 1.997 hp at 775 rpm

Built: 1992

Electrical propulsion gen.

1x 388 kW

Propelling system

1x Screw propeller controllable pitch at 201 rpm

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

3x Diesel generatorsets each 243 kVA - 194 kW - 868 hp

Bow thruster

1x 220 kW

Number of cargo tanks

2

Tank volume at 100%

Tank 1: 1.133,88 m³
Tank 2: 626,31 m³
Total: 1.760,19 m³

Minimum temperature

-48°C

Tank max. pressure

7,5 Bar

Max. cargo density

0,97 t/m³

Transport type

Refrigerated
Semi-Refrigerated

TPC

7,90

Deepwell pumps

2x Pumps each 220 m³/h

Booster pump

1x On deck x 300 m³/h

Manifold crane

0,99 t

Fuel capacity

343 m³

Renamed

11.2006 Sigas Lotta
