Antwerpen 15 July 2012 |
Name |

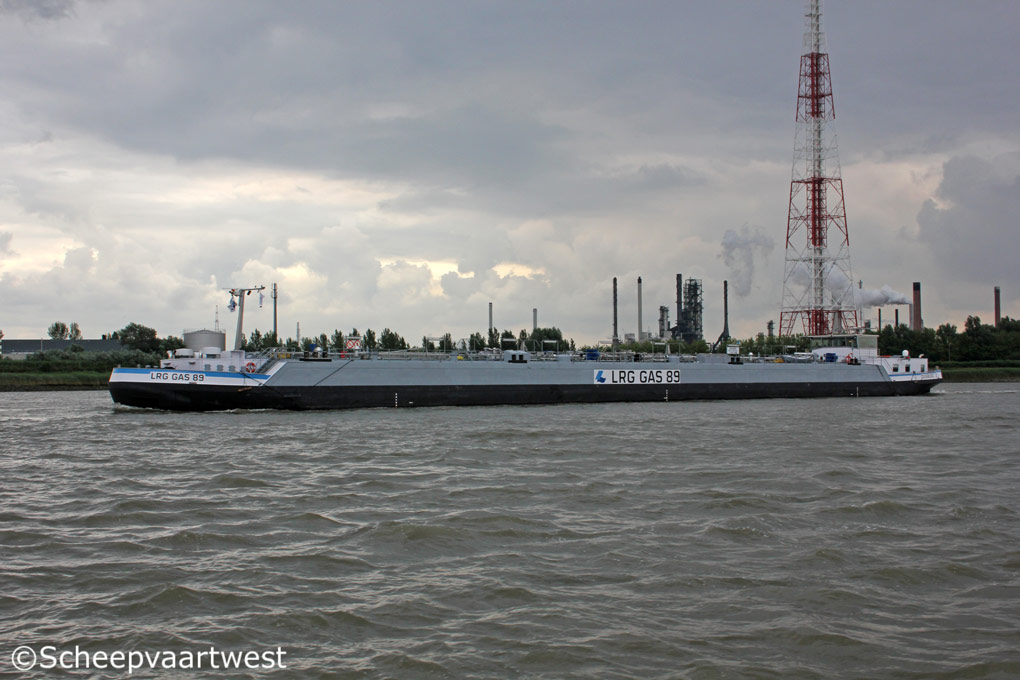

LRG GAS 89 |
Type |
Liquefied inland gas tanker |
Products |
Propane - butadiene - butane - propylene - ammonia |
ENI-number |
02334363 |
Call sign |
DJ420 |
Flag |
Germany |
Port of registry |
Duisburg |
GT |
1.852 t |
DWT |
1.452 t |
Length |
95,04 m |
Breadth |
11,45 m |
Draught |
2,80 m |
Depth |
5,70 m |
Built |
2011 |
Date of completion |
13.10.2011 |
Builder casco |
Santierul Naval Orsova SA |
Builder completion |
TeamCo Shipyard |
Yard number |
1014 |
Hull material |
Steel |
Hull type |
Single hull |
Main engine |
2x Mitsubishi S12A2-C2MPTK - 4 stroke 12 cylinder diesel engine - each 634 kW / 862 hp at 1.940 rpm Builder: MEE - MHI Equipment Europe B.V. (Mitsubishi), Almere - The Netherlands |
Shaft generators |
2x 120 kVA - 96 kW |
Gearboxes |
2x Masson Marine |
Propelling system |
2x Screw propeller solid 1x left and 1x right-handed 5-blades propeller diameter 1.550 mm with 2 nozzle type van de Giessen Optima diameter 1.566 mm |
Bow thruster |
1x Scania engine type DC16-45A-HCM534D bow thruster type OMEGA 31120-4k - 528 hp at 1.800 rpm |
Number of tanks |
4 Dimension: Length: 33,60 Diameter: 4,80 m Builder: Gronemeyer & Banck - Germany |
Cargo capacity |
2.320 m³ |
Pumps |
4x Loading pumps (gas) and AD pumps NSA50-200 with each 7,5 kW engine General service pump (vertical) NSL125-265/A16 with 45 kW motor |
Fuel capacity |
46 m³ |
Owner |
Lehnkering Reederei GmbH |
Registered owner |
Calypso GmbH |
