Malvern

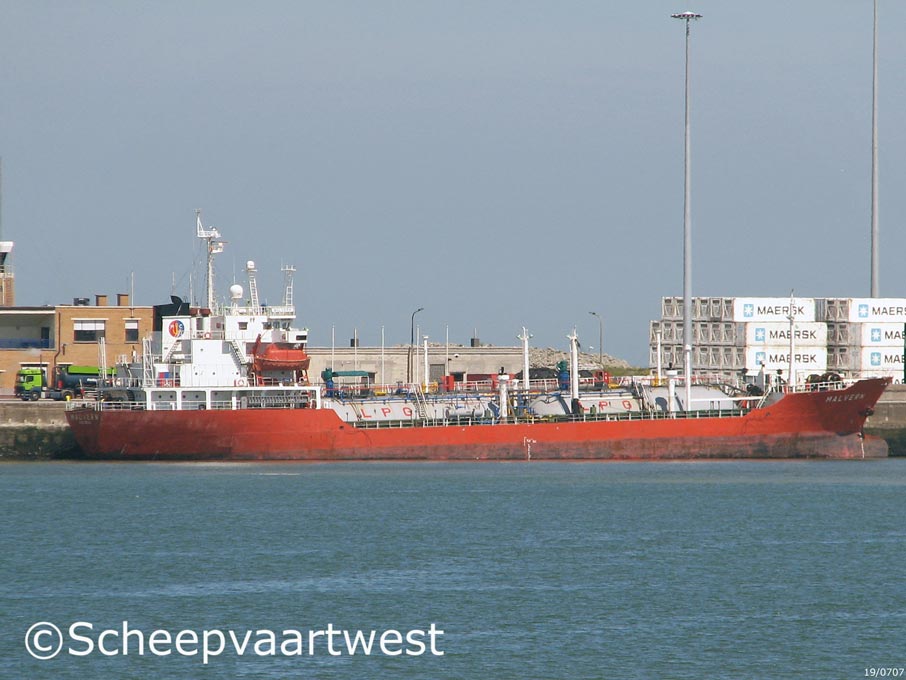

Zeebrugge 19 July 2007



Name

MALVERN

Type

Liquefied gas tanker
Pressurised LPG tanker

IMO-number

8818001

Call sign

C6PU2

Flag

Bahamas

Previous flag

Republic of Panama

Port of registry

Nassau

GT

3.368 t registered

Suez: 3609,44 t

Panama: 3704,46 t

DWT

4.148 t

NT

1.011 t

Length

99,10 m overall
92,00 m between perpendiculars

Breadth

15,80 m moulded

Moulded L x B x D

92,00 x 15,80 x 7,30 m

Registered L x B x D

92,00 x 15,80 x 7,30 m

Draught

Summer: 5,678 m

Keel to masthead

31,00 m

Bow to bridge

77,15 m

Parallel body length

41,00 m normal ballast

52,00 m summer deadweight

37,00 m light ship

Freeboard

Summer: 1.658 mm

Depth

7,30 m registered

Speed

Service: 12,7 knots

Trial: 14,8 knots

Built

1990

Keel laid

08.08.1989

Launch date

31.10.1989

Date of completion

20.01.1990

Builder

Kurinoura Dockyard
Yawatahama
Japan

Yard number

S275

Hull type

Double bottom

Main engine

1x Mitsubishi 6UEC37LA. - 2 stroke single acting 6 cylinder 370 c 880 mm diesel engine - 2.427 kW / 3.300 hp at 195,0 rpm

Manufacturer: Akasaka Diesels Ltd.

Number of screws

1

Boiler

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 0,90 t/h

Manufacturer: Miura

Generators

3x Main diesel generatorsets each 605 kVA

Cargo capacity

3.206 m³

Tank capacities

Fuel oil: 458 m³

Fresh water: 209 m³

Water ballast: 1.410 m³

Manifolds

Bridge front - mid pt. Manifold: 29,95 m

Bow to mid-point manifold: 47,20 m

Stern to mid-point manifold: 52,40 m

Manager

Bernhard Schulte Shipmanagement (Deutschland) GMBH & Co. KG

Owner

Sphinx Limited
Lot 18, Bay Street
Kingstown
ST. Vincent & The Grenadines

Previous owner

MC Shipping
c/o MC Shipping Ltd.
St Magnus House
3 Lower Thames Street
London EC3R 6HE
United Kingdom

Registered Owner

Beteiligungsgesellschaft LPG Tankerflotte MBH & CO. KG
