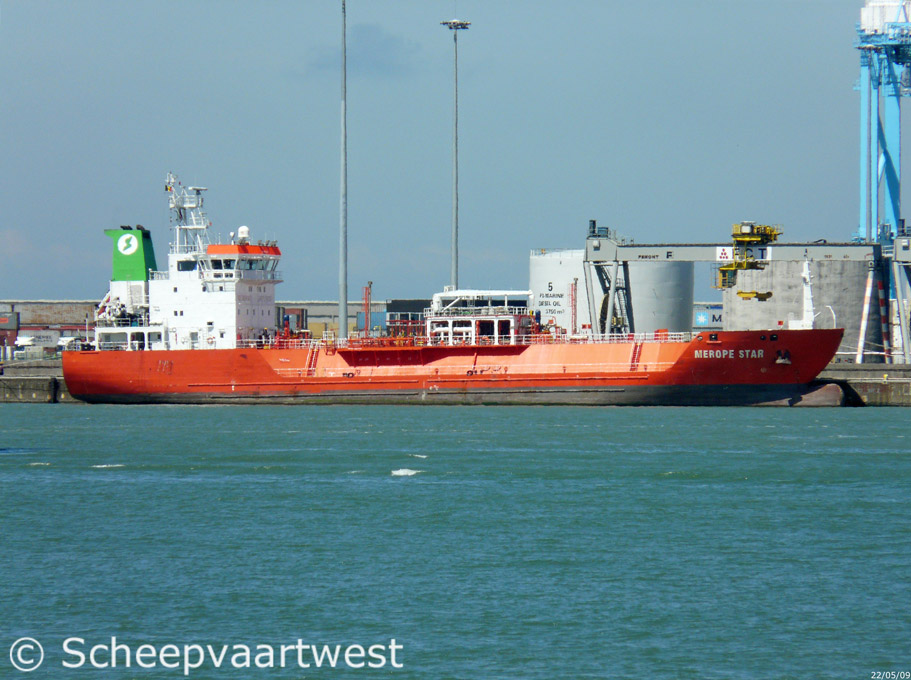

| Zeebrugge 22 May 2009 |
|
Name |
MEROPE STAR |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9356919 |
|
Call sign |
IBYX |
|
Flag |
Italy |
|
Port of registry |
Venice |
|
GT |
3.430 t registered |
|
DWT |
Summer: 3.811 t |
|
NT |
1.029 t registered |
|
Length |
87,50 m overall 82,50 m between perpendiculars 82,60 m registered |
|
Breadth |
15,00 m moulded |
|
Draught |
Summer: 6,50 m |
|
Freeboard |
1.300 mm |
|
Depth |
7,80 m moulded |
|
Speed |
14,0 knots |
|
Built |
2006 |
|
Keel laid |
26/07/2005 |
|
Launch date |
11/02/2006 |
|
Date of completion |
10/07/2006 |
|
Builder |
Madenci Shipyard Gemi San Ltd. Sti. Eregli Turkey |
|
Yard number |
30 |
|
Hull material |
Steel |
|
Hull type |
Double ull |
|
Bulkheads |
Non tight: 6 Water tight: 31 Gas tight: 1 Oil tight: 2 |
|
Main engine |
1x MAN-B&W ALPHA 6L27/38 - 4 stroke 6 cylinder 270 x 380 mm combustion engine maximum continuous rating 2.040 kW at 800 rpm Manufacturer: MAN B&W Alpha Diesel A/S |
|
Propeller |
Fixed pitch propeller Manufacturer: MAN B&W Alpha Diesel A/S |
|
Steam piping system |
1x Exhaust gas steam generator GMT EG650 - 12,0 bar |
|
Shaft generator |
1x Newage HC.M634H2 - 690,4 kW Manufacturer: Newage International Ltd. |
|
Generators |
3x Yanmar 6L165L-EN/ Leroy Somer LSA 52.2 VS40/8p diesel generatorsets each 360 kW each Manufacturer: Leroy Somer |
|
Emergency generator |
1x Volvo Penta diesel generatorset 124 kW |
|
Bow thruster |
1x 368 kW |
|
Number of cargo tanks |
2 |
|
Cargo tank capacity 98% |
98%: 3.294,07 m³ 100%: 3.361,3 m³ |
|
Pumps |
2x cargo pumps each 300 m³/h |
|
Min. cargo temperature |
-48°C |
|
Max. cargo pressure |
9,97 bar |
|
Number of tanks |
Ballast: 17 Fuel oil: 7 Lubricating oil: 4 Diesel oil: 4 Fresh water: 3 Chain: 2 Sludge: 2 Sea water: 1 Waste water: 1 |
|
Tank capacities |
Diesel oil: 96,52 m³ Fresh water: 99,83 m³ Fuel oil: 339,64 m³ Lube oil: 27,78 m³ Ballast: 1.671,65 m³ |
|
Crew |
14 |
|
Manager |
Pianura Armatori Venezia Italy |
|
Owner |
Pianura Armatori S.P.A. Via G. Felisati, 61 30171 Mestre Venezia Italy |
|
Owner as completed |
G.& H.Sg Venice Italy |
|
Registered owner |
Pianura Armatori S.P.A. |
|
Renamed |
2011 Luke Portugal, Madeira - Call sign: CQOU Operator: Lumaship S.r.l.- Italy Reg. Owner: Tower Bridge Ltd. |
|
Latest data adjustment |
29 October 2020 |
