| Zeebrugge 25 August 2010 |
|
Name |

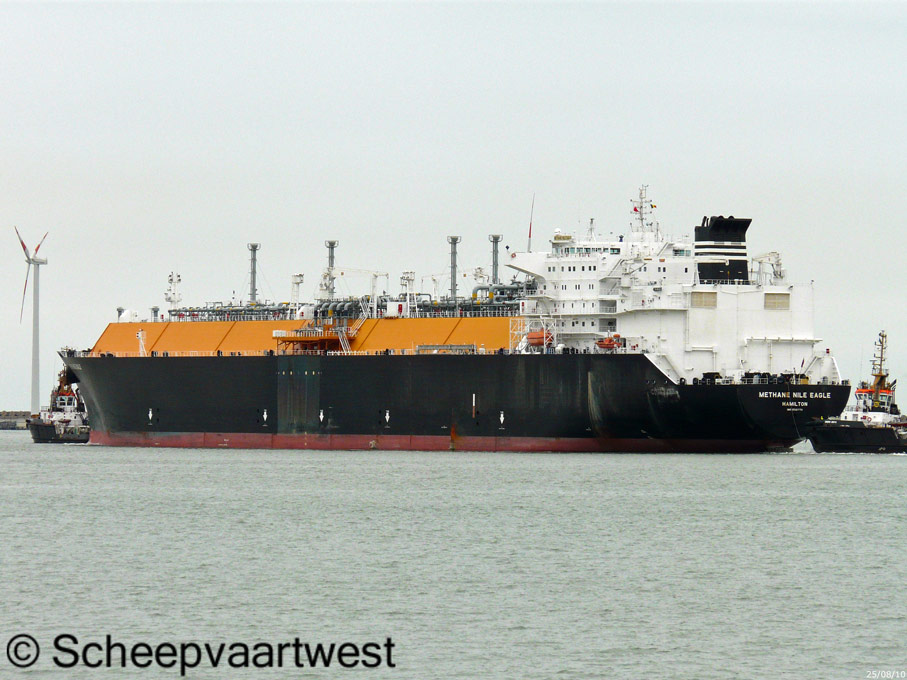

METHANE NILE EAGLE |
|
Type |
Gas carrier Membrane tank liquefied natural gas carrier |
|
IMO-number |
9321770 |
|
Call sign |
ZCDX2 |
|
Flag |
Bermuda |
|
Port of registry |
Hamilton |
|
GT |
95.753 t registered |
|
DWT |
79.006 t |
|
NT |
28.726 t registered |
|
Length |
283,062 m overall 270,00 m between perpendiculars |
|
Breadth |
43,40 m moulded |
|
Draught |
Summer: 12,03 m |
|
Air draft |
Maximum: 50,00 m above baseline with radar mast in lowered position and approximately 56,00 m with radar mast in raised position |
|
Freeboard |
14.013 mm |
|
Depth to upperdeck |
26,00 m moulded |
|
Speed |
Guaranteed speed: 20,2 knots at a draft of 11,40 m and at main steam turbine output of 22.734 kW |
|
Built |
2007 |
|
Steel cutting |
26.07.2006 |
|
Keel laid |
15.01.2007 |
|
Launch date |
17.03.2007 |
|
Delivery date |
05.12.2007 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Limited |
|
Yard number |
1588 |
|
Hull material |
High strength steel & Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 24 Gas tight: 2 Oil tight: 4 |
|
Propulsion system |
1x Steam turbine UA-400 - 14.305 kW at 5.075 rpm 1x Steam turbine UA-400 - 14.747 kW at 3.350 rpm Type: Reversible geared, cross compound, steam driven Manufacturer: Kawasaki Heavy Industries Co. Ltd. Horsepower at Maximum Continuous Rating (MCR): 29.052 kW at 90,0 rpm Horsepower at Nominal Continuous Rating (NCR): 26.147 kW at 86,9 rpm |
|
Propeller |
1x Nakashima - Bronze-ABS-Type 4 Ni-Al bronze |
|
Steam piping system |
2x KHI UME65/52 - 75,5 bar Heating Surface: 3.061 m² each |
|
Generators |
3x NTAKL-RC - each 3.450 kW Manufacturer: Nishishba Elec. |
|
Minimum cargo temperature |
-163°C |
|
Maximum cargo pressure |
0,25 bar |
|
Cargo capacity |
Total cargo capacity at 100% full: 145.597m³ |
|
Number of tanks |
Ballast: 15 Lubricating oil: 9 Fuel oil: 8 Fresh water: 6 Sludge: 4 Diesel oil: 2 Chain: 1 |
|
Tank capacities |
Diesel oil: 346 m³ / 311,4 t Fresh water: 1.064,2 m³ Fuel oil: 8.014,6 m³ / 7.274,252 t Lube oil: 314,7 m³ / 283,23 t Tank ballast: 55.708,4 m³ |
|
Lifting equipment |
1x Machine room crane MacGregor GP100-0610 - SWL 6,0 t 1x Elevator LUTZ SPFA13 - SWL 1,0 t 2x Hose handling crane Dong Woo Mach. HH250-0525 - SWL 5,0 t each 1x Provision crane Dong Woo Mach. GP160-0518 - SWL 5,0 t 1x Provision crane Dong Woo Mach. GP 250-1018 - SWL 10, t |
|
Crew |
32 |
|
Operator |
Ceres LNG Services Ltd. |
|
Registered owner |
Egypt LNG Shipping Limited |
