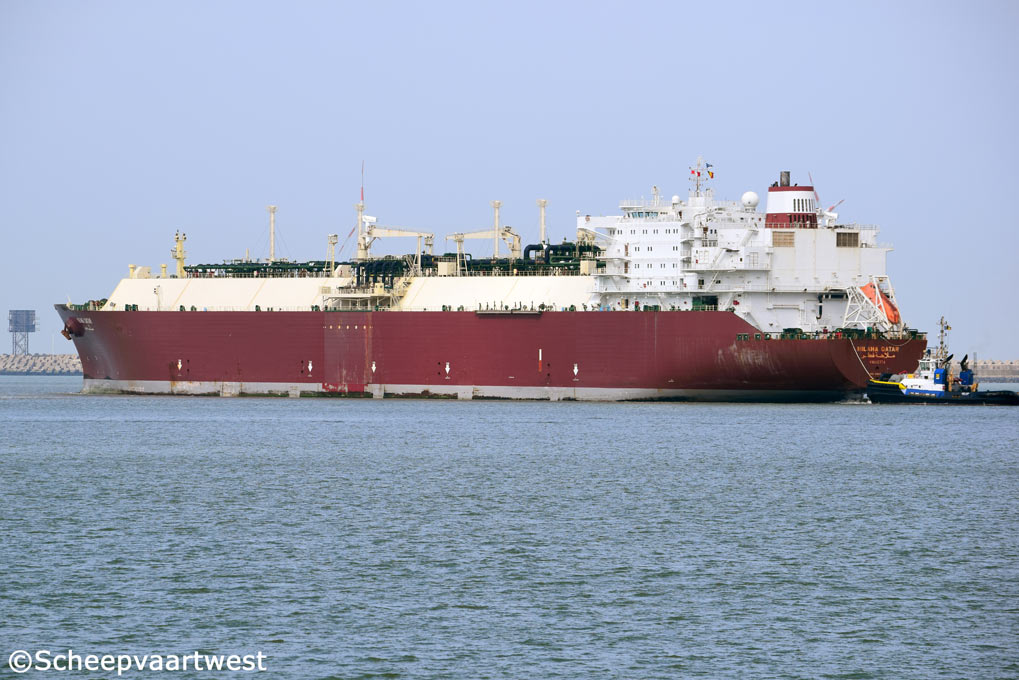

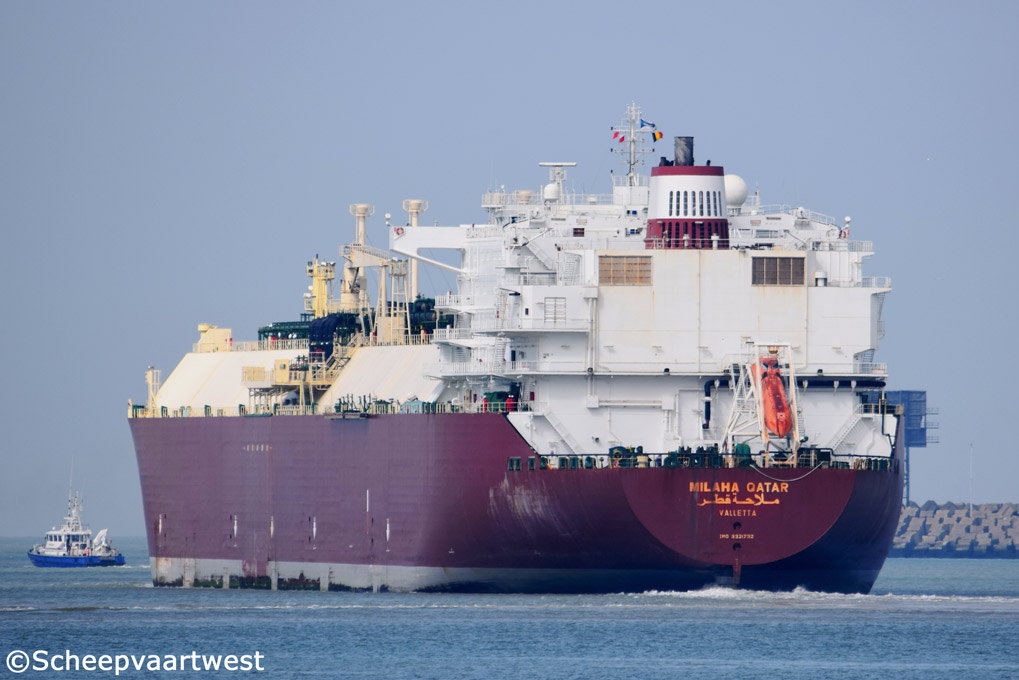

| Zeebrugge 10 April 2014 |
 |
| Zeebrugge 10/04/14 |
|
Name |
MILAHA QATAR |
|
Previous names |
2006 - 06.2012 Maersk Qatar - Flag: Denmark call sign: OYGU2 - A. P. Møller - Mærsk A/S |
|
Type |
Membrane tank liquefied natural gas carrier |
|
IMO-number |
9321732 |
|
Call sign |
9HA3092 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
96.508 t Suez: 98.144,96 t |
|
DWT |
77.803 t |
|
NT |
28.952 t Suez: 87.471,05 t |
|
Length |
283,06 m overall 270,00 m between perpendiculars |
|
Breadth |
43,40 m |
|
Draught |
Summer: 12,00 m |
|
Freeboard |
14.013 mm |
|
Depth |
26,00 m moulded |
|
Speed |
19,5 knots |
|
Built |
2006 |
|
Keel laid |
09.05.2005 |
|
Launch date |
09.07.2005 |
|
Date of completion |
15.04.2006 |
|
Builder |
Samsung Shipbuilding & Heavy Industries |
|
Yard number |
1562 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
Water tight: 23 Oil tight: 1 |
|
Main engine power |
1x Steam turbine UA-400 - 14.500 kW at 5.075 rpm 1x Steam turbine UA-400 - 14.950 kW at 3.350 rpm Manufacturer: Kawasaki Heavy Industries |
|
Propellers |
1 |
|
Boilers |
2x Type UME 66/51 main boilers each -66,0 bar Each 240.0000 mm heating surface |
|
Generators |
2x Steam turbine NTAKL-RC each 3.450 kW 1x Diesel driven NTAKL-RC 3.450 kW Manufacturer: Nishishiba Electric Co |
|
Number of tanks |
4 |
|
Liquid cargo capacity |
145.500 m³ |
|
Minimum cargo temp |
-163°C |
|
Maximum cargo pressure |
0,25 bar |
|
Number of tanks |
Ballast: 23 Lub oil: 9 Fuel oil: 8 Fresh water: 7 Diesel oil: 4 Waste water: 4 Sludge: 3 Chain:2 |
|
Tank capacities |
Diesel oil: 465,10 m³ / 418,59 t Fresh water: 1.032,8 m³ Fuel oil: 7.601,00 m³ / 7.448,98 t Lub oil: 301,50 m³ / 271,35 t Tank ballast: 57.181,20 m³ / 58.610,73 t |
|
Lifting equipment |
1x Cargo machinery room crane GP100-0610 - SWL 6,0 t 2x Hose handling crane HH400-1025 - SWL 10,0 t each 2x Provision crane GP160-0518 - SWL 5,0 t each Manufacturer: Dong Woo Machinery & Engineering Co., Ltd. |
|
Crew |
30 |
|
Manager |
Pronav Shipmanagement |
|
Operator |
Pronav Ship Management GmbH & Co.KG |
|
Owner |
K/S Membrane 2 |
|
Latest date adjustment |
18 April 2014 |
