Westerschelde 24 July 2014 |
|
Name |

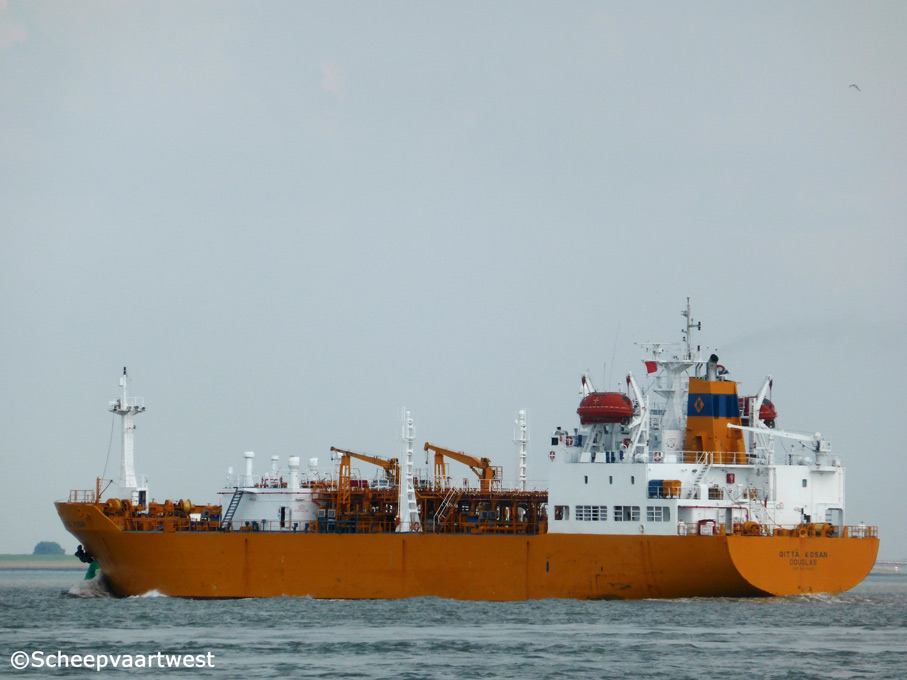

GITTA KOSAN |
|
Type |
Liquefied gas tanker |
|
Main products |
Ammoniac - Chemicals - Liquefied petroleum gases - Propylene oxide - Vinyl-Chloride monomer |
|
IMO-number |
8817693 |
|
Call sign |
MAWB9 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
4.086 t |
|
DWT |
Summer: 4.828,60 t |
|
NT |
1.225 t |
|
Length |
98,30 m overall 90,00 m between perpendiculars |
|
Breadth |
16,34 m |
|
Draught |
6,71 m |
|
Depth |
10,30 m |
|
Speed |
14,5 knots |
|
Built |
1990 |
|
Launch date |
10.06.1990 |
|
Date of completion |
10.07.1990 |
|
Builder |
Hyundai Heavy Industries |
|
Yard number |
658 |
|
Hull material |
Steel |
|
Hull type |
Double side |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp MaK 6M551AK - 4 stroke 6 cylinder 450 x 550 mm diesel engine - 3.310 kW / 4.497 hp at 450 rpm |
|
Propellers |
1x Screw propeller controllable pitch - aft at 185 rpm |
|
Boilers |
1x CHM 40,00 m² - 7,85 bar |
|
Electric installations |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x 375 kVA - 300 kW |
|
Generators |
3x Diesel generatorsets each 567 kVA - 453 kW |
|
Bow thruster |
1x 260 kW |
|
Number of cargo tanks |
3 |
|
Total capacity of tanks |
4.415 m³ |
|
Cargo handling |
3x pumps each 125 m³/h |
|
Max. pressure |
7,5 bar |
|
Minimum temperature |
-48°C |
|
Fuel capacity |
609 m³ |
|
Manager |
Lauritzen Kosan |
|
Operator |
Lauritzen Kosan A/S |
|
Registered owner |
Viken Marine AS Denmark |
|
Latest data adjustment |
09 February 2015 |
