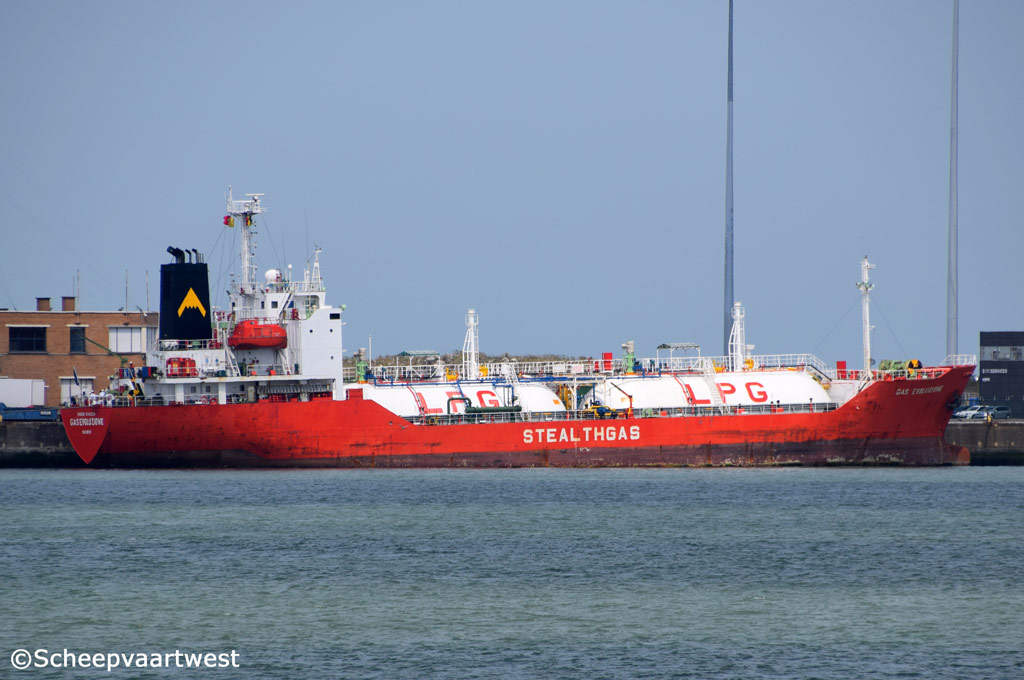

Zeebrugge 03 July 2015 |
 |
|

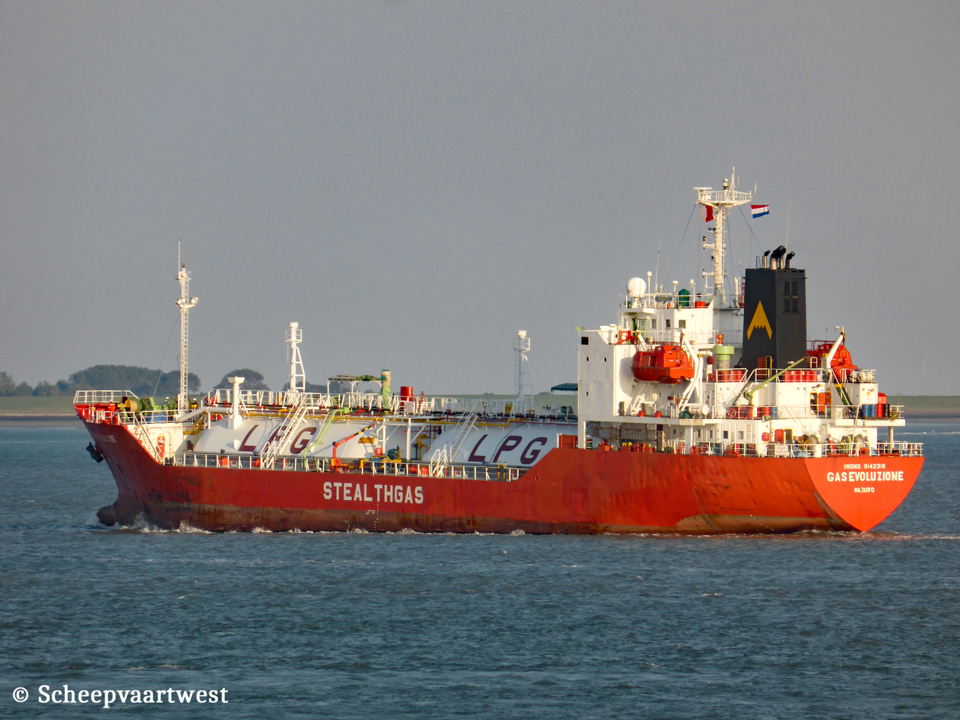

| Westerschelde 09/09/15 | |
|
Name |
GAS EVOLUZIONE |
|
Previous names |
1996 - 10/2004 Gas Sriracha 10/2004 - 07/2007 Grampian |
|
Type |
Liquefied gas tanker Full pressurized LPG carrier |
|
IMO-number |
9142318 |
|
Call sign |
3EPI |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
Marshall Islands, Majuro - Call sign: V7NF5 |
|
GT |
3.504 t registered Suez: 3.821,42 t |
|
DWT |
2.981,38 t |
|
NT |
1.052 t registered Suez: 2.902,97 t |
|
Light ship |
2.124,23 t |
|
Loaded displacement |
Summer: 5.105,61 t |
|
Length |
94,50 m overall 88,50 m between perpendiculars |
|
Breadth |
16,60 m registered 16,80 m overall |
|
Draught |
Summer: 4,51 m |
|
Keel to highest point |
30,06 m |
|
Air draft |
26,62 m with normal ballast |
|
Freeboard |
2.616 mm |
|
Depth |
7,10 m |
|
Speed |
12,0 knots laden 12,5 knots ballast |
|
Built |
1996 |
|
Date of completion |
28/06/1996 |
|
Builder |
Usuki Zosensho Shipyard Co. Ltd. Usuki Japan |
|
Yard number |
1638 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Kawasaki/MAN-B&W 6S26MC Mark 5 - 2 stroke 6 cylinder 260 x 980 mm combustion engine 2.165 kW / 3.268 hp at 250 rpm Built: 1996 Builder: Hanshin Diesel Works Ltd., Kobe - Japan |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Oil Fixed / MK SC -13 600 / 600 - 7,00 bar Evaporation: 600 kg/h 1x Exhaust Economiser, composite type vertical boiler Evaporation: 300 kg/h |
|
Generators |
3x Yanmar 6 LAAL-UTN main diesel generatorsets each 300 kVA - 240 kW - 360 hp |
|
Emergency generator |
1x Diesel generatorset 24 kW - 450 Volt 60 Hz |
|
Numbers of tanks |
2 |
|
Cargo tank capacity |
3.517,267 m³ |
|
Cargo pumps |
2x Electric motor 120 kW driven deepwell cargo pump - 300 m³/h each Builder: Niigata Worthington |
|
Tank capacities |
HFO: 399 m³ Diesel oil: 45,17 t Fresh water: 158,36 t |
|
Lifting equipment |
1x Crane - SWL 0,9 t |
|
Crew |
16 |
|
Manager |
Nhat Viet Transportation Corp. 151, Nguyen Van Thu, District 1 Ho Chi Minh City Vietnam |
|
Previous manager |
Stealth Maritime Kifisias Ave 331 Kifisia 145 61 Greece |
|
Registered owner |
Venus Gas Company Limited Floor 15, Mipec Tower Ha Noi Vietnam |
|
Latest data adjustment |
31 May 2024 |
