Westerschelde 05 April 2016 |
 |
 |
|
| Westerschelde 05/04/16 | Vlissingen 15/10/16 | |
|
Name |

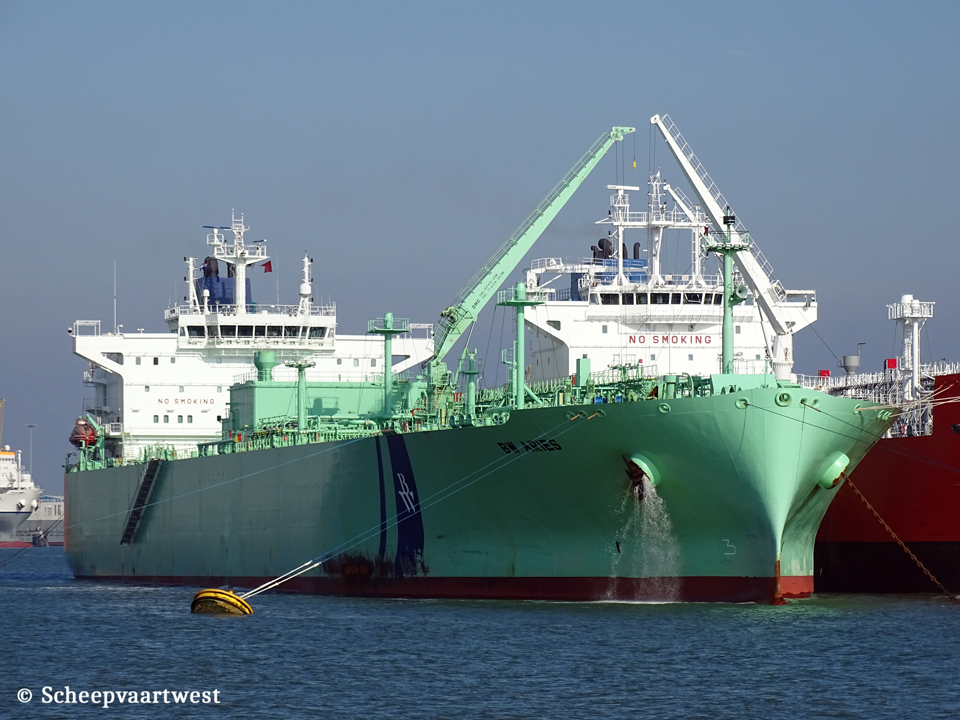

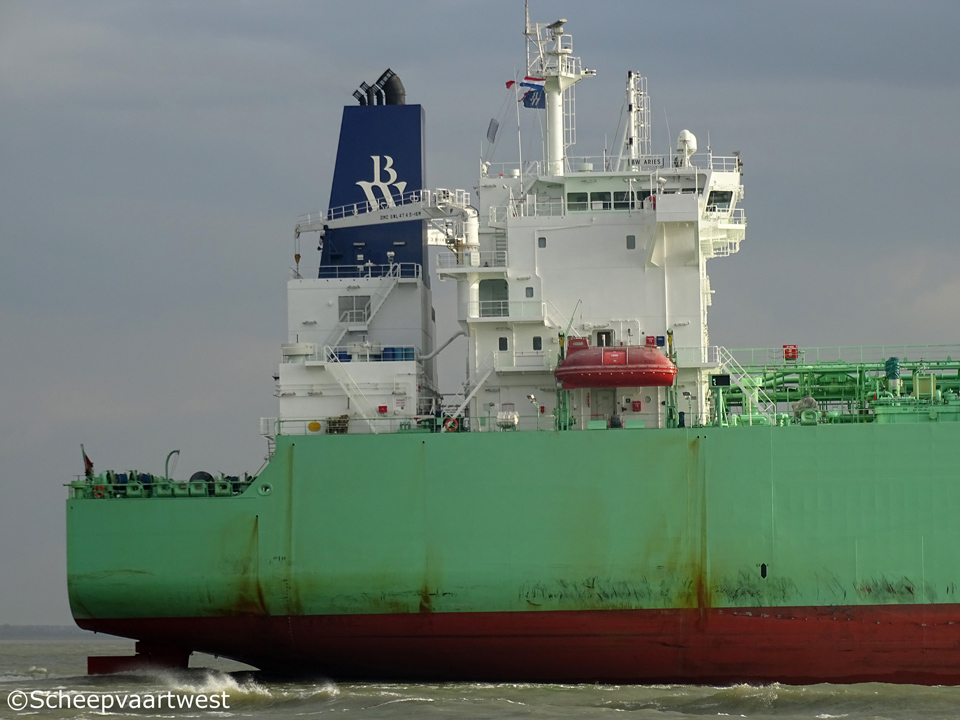

BW ARIES |
|
Type |
LPG / NH3 / Light oil product tanker |
|
IMO-number |
9701786 |
|
Call sign |
2HSO5 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
47.342 t |
|
DWT |
Summer: 54.561 t |
|
NT |
18.644 t |
|
Length |
225,00 m overall 220,00 m between perpendiculars |
|
Breadth |
36,63 m extreme |
|
Draught |
12,02 m |
|
Keel to mast end |
49,73 m |
|
Depth |
22,20 m |
|
Speed |
16,8 knots |
|
Built |
2014 |
|
Keel laid |
07/04/2014 |
|
Launch date |
29/08/2014 |
|
Date of completion |
17/11/2014 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
2705 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x MAN-B&W/HHI 6G60ME-C9 - 2 stroke 6 cylinder 600 x 2.790 mm combustion engine 12.400 kW / 16.859 hp at 94,0 rpm |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Hyundai Heavy Industries |
|
Boilers |
Auxiliary boiler, oil/gas fired Auxiliary boiler, exhaust gas heated (exhaust gas economizer) Manufacturer: Alfa Laval Aalborg A/S |
|
Generators |
3x Hyundai 6H21/32 main diesel generatorsets each 1.080 kW Manufacturer: Hyundai Heavy Industries |
|
Emergency generator |
1x Doosan AD/L 086 diesel generatorset 151 kW |
|
Number of cargo tanks |
4 |
|
Tank capacity |
84.195 m³ |
|
Number of pumps |
8x Cargo pumps each 600 m³/h |
|
Tank capacities |
Ballast: 20.205 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 84 mm |
|
Crew size |
27 |
|
ISM & commercial manager |
BW Fleet Management AS Professor Kohts vei 5 1366 Lysaker Norway |
|
Operator |
BW Group Professor Kohts vei 5 1366 Lysaker Norway |
|
Registered owner |
BW Constellation I Pte Limited c/o BW Gas AS Professor Kohts vei 5 1366 Lysaker Norway |
|
Latest data adjustment |
10 October 2023 |
