Name |

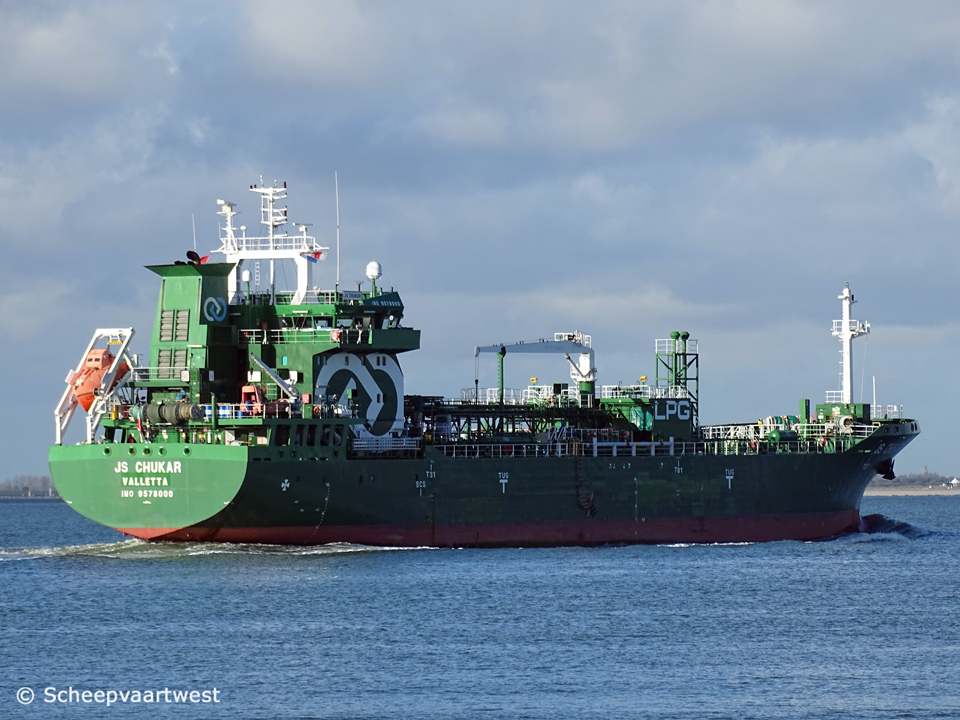

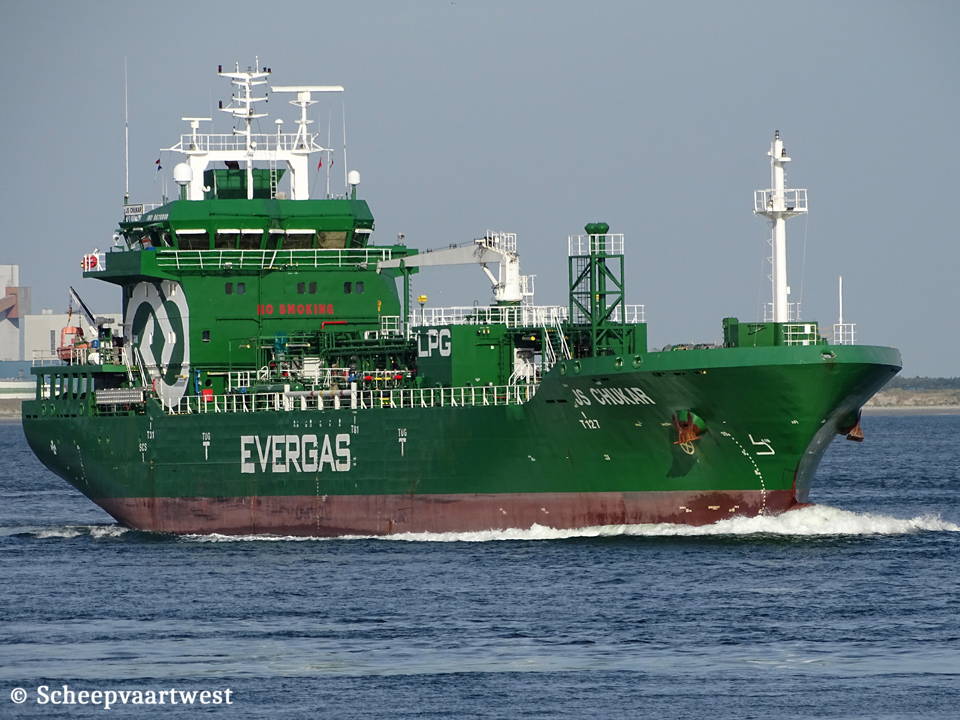

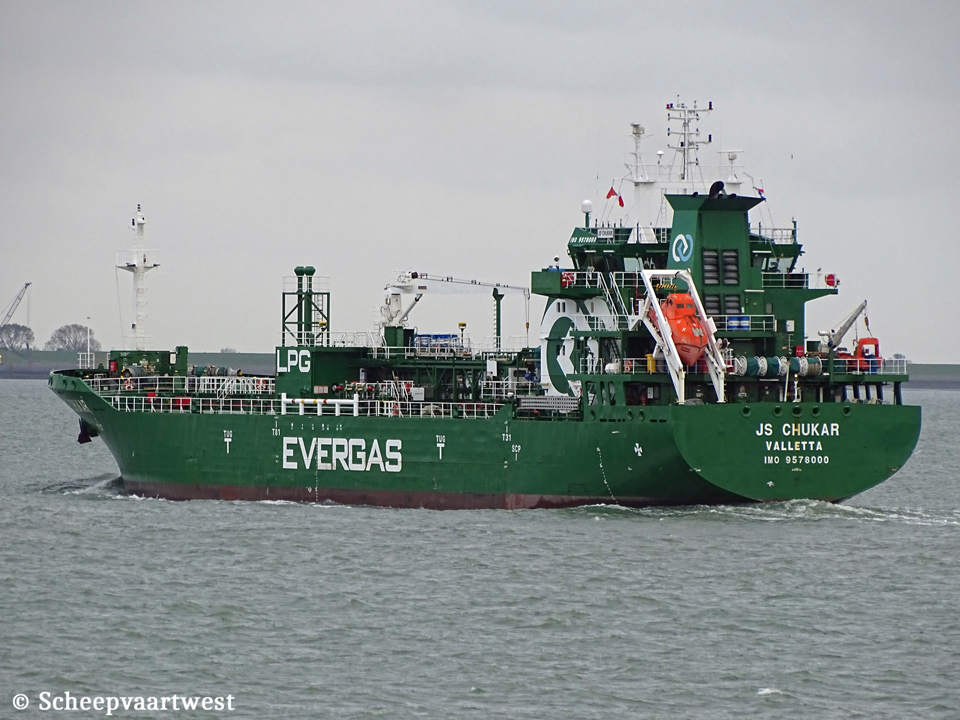

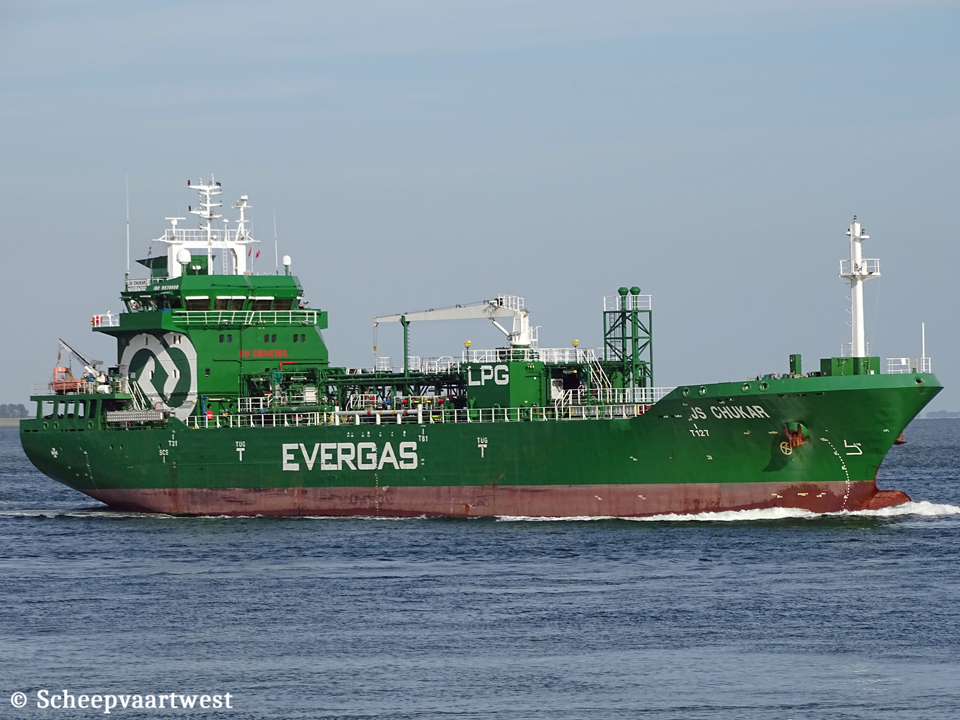

JS CHUKAR |
|
Type |
Liquefied gas tanker |
|
Transport type |
Fully pressurized |
|
Main products |
Butane - Liquefied petroleum gases - Propylene oxide - Vinyl-Chloride monomer |
|
IMO-number |
9578000 |
|
Call sign |
9HA4214 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
5.036 t Suez: 5.036 t Panama: 6.054 t |
|
DWT |
Summer: 4.994 t |
|
NT |
1.511 t Suez: 4.447 t Panama: 4.319 t |
|
Light displacement |
3.426 t |
|
Length |
99,85 m overall 92,43 m between perpendiculars |
|
Breadth |
17,40 m |
|
Draught |
Summer: 7,06 m |
|
Keel to mast end |
32,45 m |
|
Air draft |
27,50 m normal ballast condition |
|
Distance bow to bridge |
80,00 m |
|
Freeboard |
4.652 mm |
|
Depth |
11,70 m |
|
Speed |
13,5 knots |
|
Built |
2012 |
|
Keel laid |
22/06/2011 |
|
Launch date |
12/11/2011 |
|
Date of completion |
20/07/2012 |
|
Builder |
Nantong CIMC Sinopacific Offshore & Engineering Co. Qidong China |
|
Yard number |
DJ1002 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 6L2/40CD (dual-fuel) - 4 stroke single acting 6 cylinder 320 x 400 mm combustion engine 3.000 kW / 4.076 hp at 750 rpm |
|
Propellers |
1x Screw propeller controllable pitch - aft at 147 rpm |
|
Boilers |
1x Composite boiler 64,00 m² - 13,0 bar |
|
Shaft generator |
1x 500 kVA - 400 kW |
|
Generators |
2x Volvo Penta D16 diesel generator 564 kVA - 451 kW - 679 hp at 1.800 rpm |
|
Emergency generator |
1x Diesel generatorset 385 kW at 1.800 rpm |
|
Bow thruster |
1x Schottel tunnel thruster 250 kW |
|
Number of cargo tanks |
2 1x Independent C Type, cylindrial 1x Independent C Type, bilobe |
|
Total capacity of tanks |
100% Tank 1: 1.788 m³ Tank 2: 3.221 Total 5.010 m³ 98% Tank 1: 1.752 m³ Tank 2: 3.157 m³ Total: 4.909 m³ |
|
Pumps |
3x Svanehoj deepwell cargo pump 200 m³/h |
|
Manifolds |
Distance bridge front - mid point manifold: 27,60 m Distance bow to mid-point manifold: 44,90 m Centre of manifold to bow: 49,87 m Centre of manifold to stern: 50,03 m |
|
Tank capacities |
HFO: 570 m³ (98%) MDO: 138 m³ (98%) Fresh water: 218,6 m³ Water ballast: 1.929 m³ |
|
Lifting capacity |
1x Crane - SWL 4,0 y - Outreach: 16,50 m |
|
Commercial manager |
Evergas Management AS Amerika Plads 38 2100 Copenhagen Denmark |
|
ISM manager |
Hartmann Gas Carriers GmbH & Co. KG Koenigstrasse 23 26789 Leer Germany |
|
Registered owner |
Marina Apollo Shipping Ltd. Care of Evergas Management AS Amerika Plads 38 2100 Copenhagen Denmark |
|
Previous owner |
Greenship Gas & Jaccar Holdings |
|
Renamed |
2023 Chukar Malta, Valletta - Call sign: 9HA4214 Owner: Dragon Chukar Ltd. - Care of Evergas Management AS, Copenhagen - Denmark Manager: Hartmann Gas Carriers Germany GmbH & Co. Kg, Leer - Germany |
|
Latest data adjustment |
09 January 2021 |
