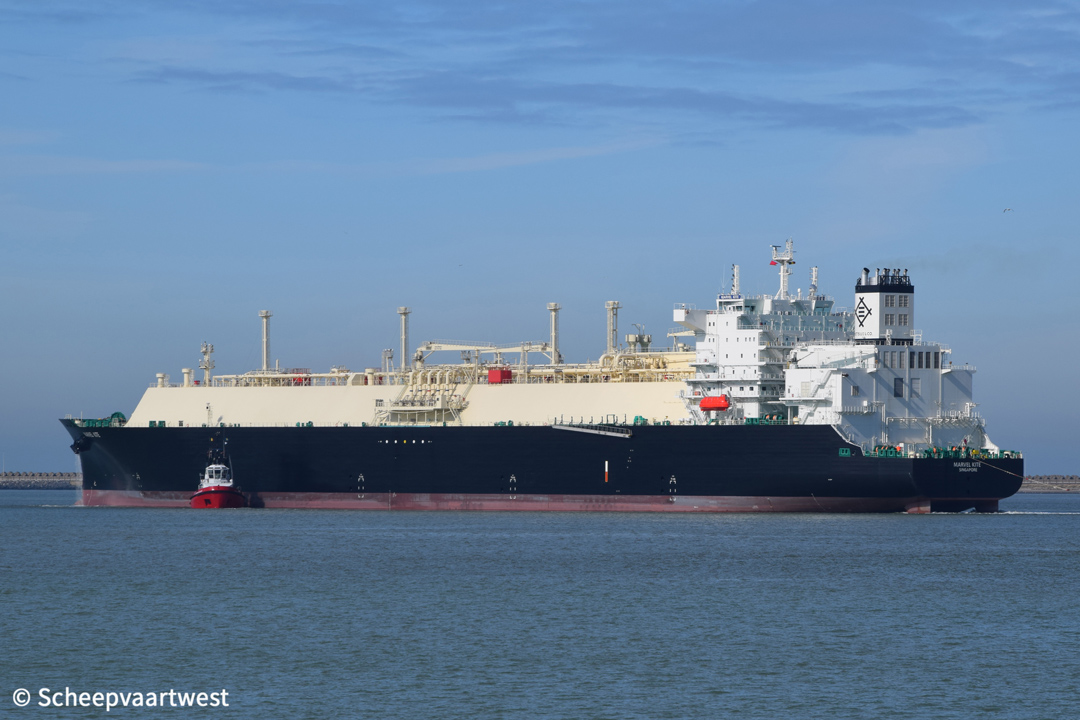

Marvel Kite 01

Zeebrugge 19 March 2019

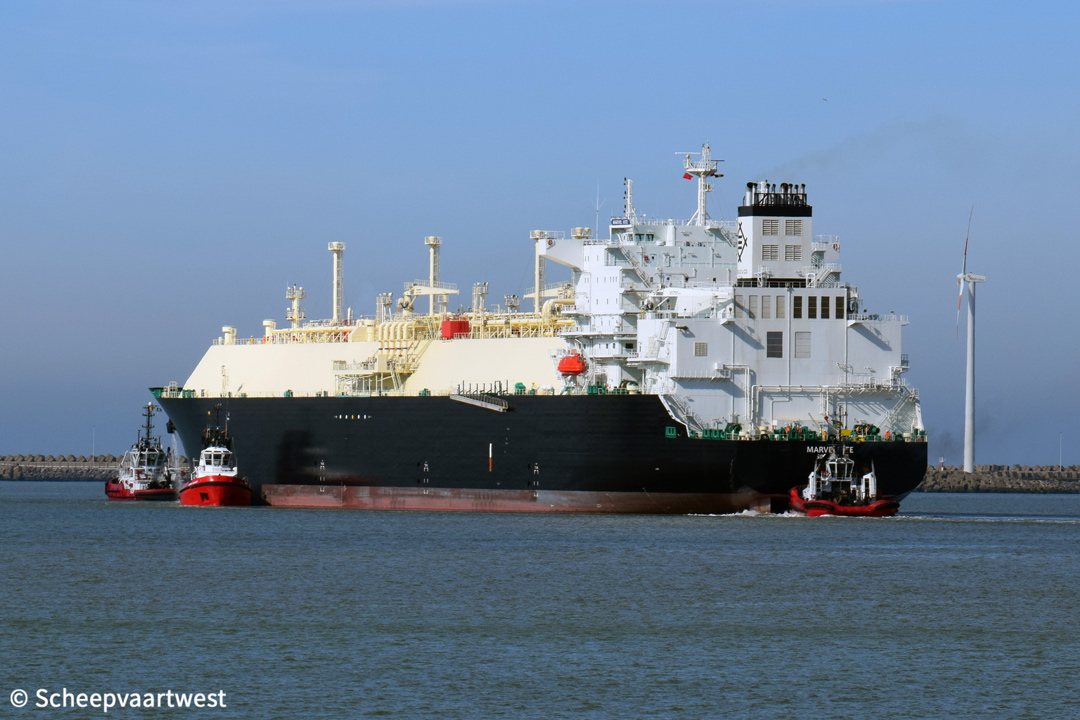

Marvel Kite 05
Zeebrugge 19/03/19



Name

MARVEL KITE

Type

Membrane tank liquefied gas carrier - Liquefied natural gas

IMO-number

9760782

Call sign

9V5099

Flag

Republic of Singapore

Port of registry

Singapore City

GT

114.084 t registered

Suez: 116.241,56 t

DWT

89.266 t

NT

37.925 t registered

panama: 112.057 t

Suez: 99.483,08 t

Length

293,30 m

Breadth

45,80 m

Draught

Summer: 12,02 m

Freeboard

7.831 mm

Built

2019

Keel laid

23/12/2015

Launch date

27/03/2018

Delivery date

31/01/2019

Builder

Samsung Heavy Industries Co., Ltd.
South Korea

Yard number

SN2150

Hull material

Ordinary strength steel

High strength steel

Hull type

Double hull

Watertight bulkheads

10

Main engine

2x Doosan W6X62DF - 6 cylinder 620 x 2.658 mm combustion engines each 12.540 kW at 90,3 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

2x Fixed pitch propellers

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

2x Auxiliary Boiler - 9,0 bar

2x Economizer - 12,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

4x main diesel generatorsets each 2.750 kW

Manufacturer: HHI Electro Electric System

Cargo tank capacity

174.000 m³

Min temperature

1163°C

Max cargo pressure

0,25 bar

Number of tanks

Lubricating oil :18

Ballast: 15

Sludge: 7

Fuel oil: 7

Diesel oil:6

Fresh water: 6

Waste water: 3

Chain: 2

Sewage :1

Tank capacities 100%

Diesel oil: 1.668 m³

Freshwater: 751,4 m³

Fuel Oil: 5.654;3 m³

Lube Oil: 379,4 m³

Tank Ballast: 62.840,7 m³

Lifting equipment

1x Cargo machinery room crane - SWL 6,0 t

1x Hose handling crane port - SWL 5,0 t

1x Hose handling crane starboard - SWL 5,0 t

1x Provision crane port - SWL 8,0 t

1x Provision crane starboard - SWL 8,0 t

Manufacture: Tech Flower Co., Ltd.

1x Engine room crane port - SWL 5,0 t

1x Engine room crane starboard - SWL 5,0 t

Manufacture: Oriental Precision Machinery Co., Ltd.

Crew

29

Manager

Mitsui & Co Ltd.

Operator

MMS Co., Ltd.
Surfeel Nakameguro Bldg
18-12, Kamimeguro
1-chome Meguro-ku
Tokyo, 153-0051
Japan

Registered owner

Comet Gyro Gas Transport Pte. Ltd.
22 Malacca Street
04 Singapore
Republic of Singapore

Latest data adjustment

31 March 2019
