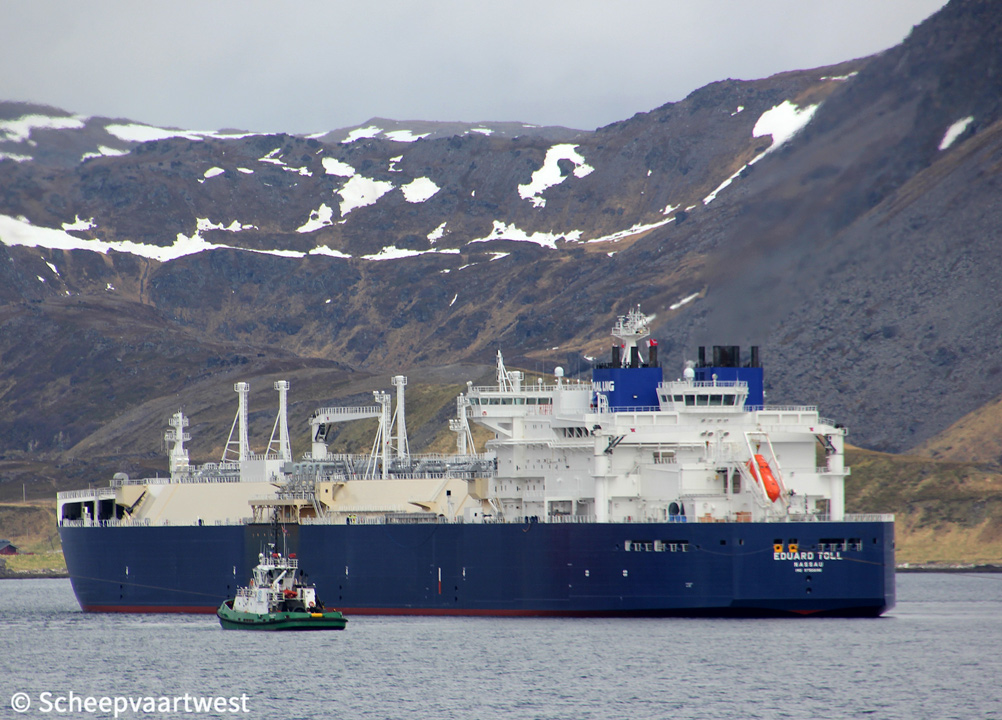

Eduard Toll 01

Havøysund, Norway 06 June 2019



Eduard Toll 02
Havøysund 06/06/2019



Name

EDUARD TOLL

Type

Liquefied natural gas carrier - LNG tanker

Panamax

Transport type

Refrigerated

Main products

Liquefied natural gas

IMO-number

9750696

Call sign

C6CD2

Flag

Bahamas

Port of registry

Nassau

GT

128.975 t

DWT

96.839 t

NT

38.692 t

Length

299,00 m overall

283,10 m between perpendiculars

Breadth

50,05 m

Draught

Max: 13,00 m

Freeboard

9.309 mm

Depth

26,50 m

Speed

19,5 knots

Built

2017

Keel laid

28/06/2016

Launch date

21/01/2017

Date of completion

09/12/2017

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.
Okpo
South Korea

Yard number

2423

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engines

1x Wärtsilä 12V50DF - 4 Stroke 12 cylinder 500 x 580 mm combustion engines 11.400 kW / 15,499 hp at 500 rpm

3x Wärtsilä 12V50DF - 4 Stroke single acting 12 cylinder 500 x 580 mm combustion engines 11.400 kW / 15,499 hp at 500 rpm

2x Wärtsilä 9L50DF - 4 Stroke single acting 9 cylinder 500 x580 mm combustion engines 8.550 kW / 11.625 hp at 500 rpm
Builder: Wärtsilä-Hyundai Engine Co., Ltd. - South Korea

Engines

6x Diesel electric oil engines driving 4 generators each 11,250 kW 6.600 Volt

Electrical propulsion engine

3x Engines 15.000 kW at 150,0 rpm

Build: 17/11/2017

Builder: ABB Oy Marine & Ports, Helsinki - Finland

Total power

MCR: 62.700 kW / 85.246 hp

CSR: 53.294 kW / 72.460 hp

Propellers

3x Azimuth electric drive units - aft at 150,0 rpm

Propelling type

Electrical

Boilers

2x CHR Aalborg 173,00 m² - 12,5 bar
4x CHR Aalborg 291,00 m² - 12,5 bar
2x CHF Aalborg 217,00 m² - 9,0 bar

Diesel generators

2x Diesel generatorsets each 10.563 kVA - 8.450 kW - 11.923 hp

4x Diesel generatorsets each 14.063 kVA - 11.250 kW - 15.897 hp

Emergency generator

1x Diesel generatorset 1.375 kVA - 1.100 kW - 1.563 hp

Number of cargo tanks

4

Cargo tank capacity

172.651,6 m³

Cargo handling gear

8x cargo pumps each 2.050 m³/h

Min temp

-163°C

Tank capacities

Fuel: 6.633,4 m³

Crew size

21

Operator

Teekay Shipping Limited
4th Floor, Belvedere Building
69, Pitts Bay Road
Hamilton, HM 08
Bermuda

Registered owner

TC LNG Explorer I LLC

Latest data adjustment

29 August 2019
