Westerschelde 20 August 2019 |
|
Name |

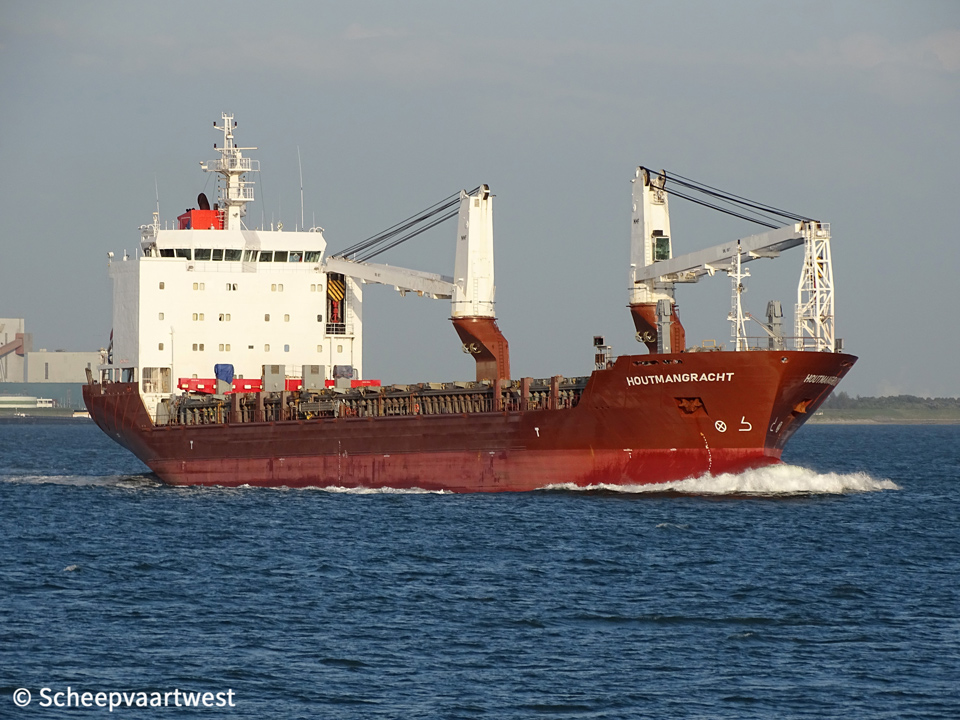

HOUTMANGRACHT |
|
Previous names |
08/2009 - 05/2011 Beluga Fantasy 05/2011 - 07/2011 OXL Fantasy 07/2011 - 01/2019 HHL Mississippi |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9435765 |
|
Call sign |
PCFN |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
Previous flags |
08/2009 - 07/2011 Germany, Bremen 07/2011 - 01/2019 Liberia, Monrovia - Call sign: A8SX5 |
|
GT |
9.611 t |
|
DWT |
Summer: 12.669,4 t |
|
NT |
4.260 t |
|
Number of 20ft containers |
On deck: 331 In hold: 334 Total: 665 |
|
Container capacity 14t |
542 |
|
Reefer capacity |
25 |
|
Length |
138,04 m overall 129,96 m between perpendiculars |
|
Breadth |
21,36 m extreme 21,00 m moulded |
|
Draught |
Max: 8,00 m |
|
Depth |
11,00 m |
|
Speed |
Service: 14,0 knots Max: 15,0 knots |
|
Built |
2009 |
|
Keel laid |
12/11/2007 |
|
Launch date |
23/01/2009 |
|
Date of completion |
18/08/2009 |
|
Builder |
Jiangzhou Union Shipbuilding Company Ltd. Ruichang China |
|
Yard number |
JZ1006 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Number of decks |
2 |
|
Main engine |
1x MaK 6M43 C - 4 stroke single acting 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.342 hp at 514 rpm Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 132,0 rpm |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Generators |
3x MAN D2840 LE301 main diesel engines each 450 kW connected with generators each 395 ekW / 400/203 Volt 50 Hz |
|
Emergency generator |
1x MAN D2866E diesel generatorset |
|
Bow thruster |
1x Fixed pitch thruster 500 kW / 680 bhp, forward |
|
Number of cargo holds |
3 |
|
Caro hold capacity |
Grain: 15.952 m³ Bale: 14.856 m³ |
|
Hold ventilation |
Hold 1: 6x p/h Hold 2&3: 12x p/h |
|
Hatches |
Weather deck: Hold 1: 18,75 x 15,00 m Hold 2: 42,00 x 17,50 m Hold 3: 25,50 x 17,50 m Tween deck: Hold 1: 18,75 x 15,01 m Hold 2: 42,00 x 17,50 m Hold 3: 25,50 x 17,50 m Consisting: 14 steel pontoons |
|
Hatch type |
Steel, end folding/trailing pairs type |
|
Floor space |
Tanktop: 1.425 m² Tween deck: 1.432 m² Weather deck: 1.531 m² |
|
Max permitted loads |
Weather deck hatch covers: 1,75 m²/h Tweendeck hatch covers: 4,00 t/m² Tanktop: 16,00 t/m² |
|
Tank capacities |
Ballast: 5.001 m³ |
|
Anchor equipment |
Length: 545,00 m Diameter: 52 mm |
|
Cargo gear |
2x Deck cranes portside - SWL 180 t each Combinable up to 360 t |
|
Crew size |
14 |
|
Manager |
Spliethoff's Bevrachtingskantoor N.V. Radarweg 36 1042 AA Amsterdam The Netherlands |
|
Previous managers |
08/2009 - 07/2011 Beluga Fleet Management GmbH & Co. KG., Bremen - Germany 07/2011 - 01/2019 Hansa Heavy Lift GmbH., Hamburg - Germany 01/2019 - 02/2020 Spliethoff's Bevrachtingskantoor B.V., Amsterdam - The Netherlands |
|
Registered owner |
Rederij Houtmangracht BV Amsterdam The Netherlands |
|
Previous names & owners |
08/2009 - 05/2011 Beluga Fantasy - Beluga Shipping JZ1006 GmbH & Co. KG., Bremen - Germany 05/2011 - 07/2011 OXL Fantasy- Beluga Shipping JZ1006 GmbH & Co. KG., Bremen - Germany 07/2011 - 01/2019 HHL Mississippi- Hansa Heavy Lift Zweite Schiffs UG (haftungsbeschränkt) Co. K.G., Hamburg - Germany 01/2019 - 02/2020 Houtmangracht - B.V. Firmanten Houtmangracht, Amsterdam - The Netherlands |
|
Latest data adjustment |
18 May 2020 |
