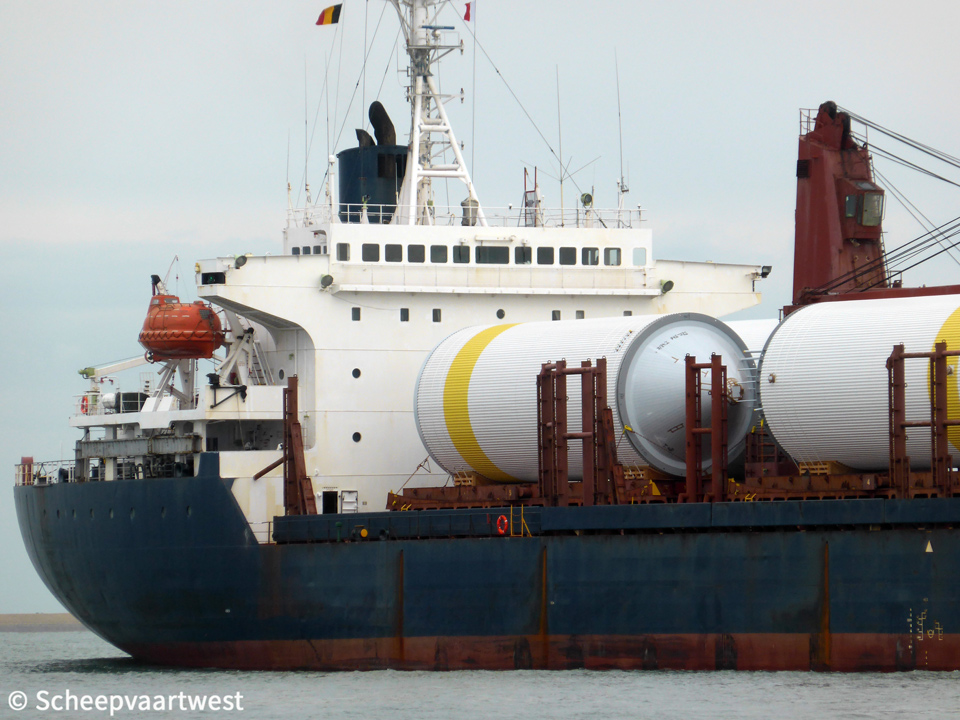

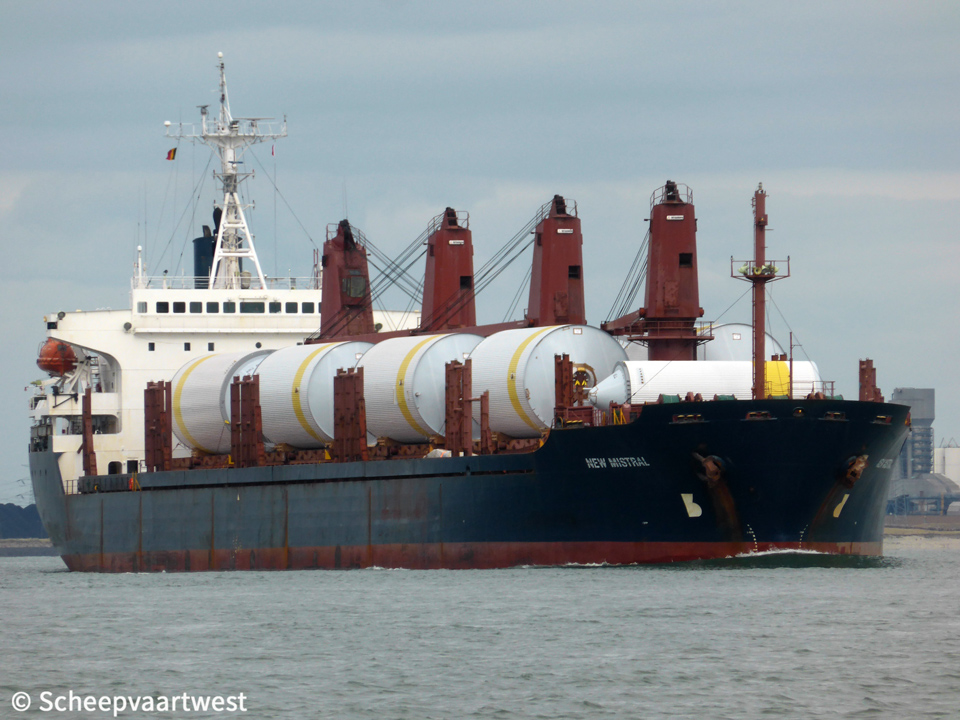

Westerschelde 20 June 2015 |
 |
| Westerschelde 20/06/15 |
|
Name |
NEW MISTRAL |
|
Previous names |
1995 - 05/2006 Glorious Sun 05/2006 - 12/2007 Addu Shan 12/2007 - 2015 CN Jumbos |
|
Type |
Bulk/lumber carrier |
|
IMO-number |
9111371 |
|
Call sign |
9HAG9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
16.418 t registered |
|
DWT |
Summer: 27.321 t |
|
NT |
9.409 t registered |
|
Length |
165,50 m overall |
|
Breadth |
27,00 m moulded |
|
Draught |
Summer: 9,52 m |
|
Moulded L x B x D |
158,00 x 27,00 x 13,00 m |
|
Registered L x B xD |
158,60 x 27,00 x 13,30 m |
|
Freeboard |
Summer: 9.525 mm |
|
Depth |
13,00 m moulded |
|
Speed |
Max: 15,7 knots |
|
Built |
1995 |
|
Keel laid |
14/04/1995 |
|
Launch date |
24/06/1995 |
|
Date of completion |
29/08/1995 |
|
Builder |
Mitsubishi Heavy Industries Ltd. Shimonoseki Shipyard & Machinery Works Shimonoseki Japan |
|
Yard number |
1008 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W 5L50MC - 2 stroke single acting 5 cylinder 500 x 1.620 mm combustion engine 5.369 kW at 125,0 rpm. Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 630 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,08 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Generatorsets total 1.200 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 34.182 m³ Grain: 34.811 m³ |
|
Tank capacities |
Fuel oil: 1.451 m³ Fresh water: 227 m³ |
|
Cargo gear |
4x Cranes - SWL 30,5 t each |
|
Renamed |
06/2016 New Levant Belize, Belize City - Call sign: V3VU9 Reg. Owner: Levant Shipping Ltd. Manager: G.M.Z. Ship Management Co. S.A. |
|
Latest data adjustment |
25 May 2020 |
