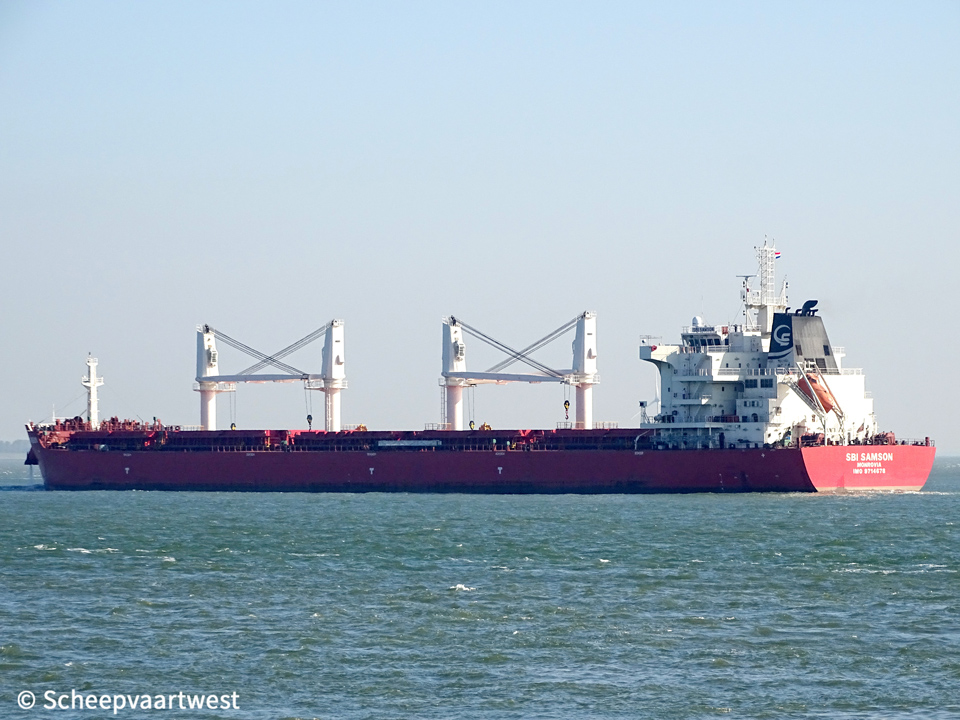

Westerschelde 10 October 2018 |
|
Name |
SBI SAMSON |
|
Type |
Bulk carrier- Ultramax |
|
IMO-number |
9714678 |
|
Call sign |
D5LB8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
36.421 t |
|
DWT |
Summer: 63.310 t |
|
NT |
21.303 t |
|
Length |
199,86 m overall 194,45 m between perpendiculars |
|
Breadth |
32,31 m extreme 32,25 m moulded |
|
Draught |
Max: 13,32 m |
|
Forecastle |
13,14 m |
|
Deckhouse |
22,28 m |
|
Depth |
18.50 m |
|
Speed |
14,0 knots |
|
Built |
2017 |
|
Keel laid |
18/07/2015 |
|
Launch date |
25/01/2016 |
|
Date of completion |
03/01/2017 |
|
Builder |
Chengxi Shipyard Co., Ltd. Jiangyin China |
|
Yard number |
CX0655 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
6 |
|
Number of decks |
1 |
|
Main engine |
1x MAN-B&W/Hudong Heavy Machinery 5G60ME-C9.2 - 2 stroke 5 cylinder 600 x 2.790 mm combustion engine 8.500 kW at 77,0 rpm Build: 25/04/2016 Builder: Hu Dong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Fixed mono-block propeller |
|
Boilers |
Auxiliary boiler, composite Builder: Saacke VKK Marine Boilers GmbH |
|
Generators |
3x MAN 6L23/30H main diesel generatorsets each 650 kW |
|
Number of cargo holds |
5 |
|
Caro hold capacity |
Grain: Hold 1: 3.960,53 m³ Hold 2: 17.682,44 m³ Hold 3: 15.350,47 m³ Hold 4: 15.850,41 m³ Hold 5: 14.944,45 m³ Total: 77.786 m³ |
|
Number of hatches |
4x 22,96 x 18,26 m 1x 19,68 x 18,26 m |
|
Tank capacities |
Ballast: 33.412,6 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
Optimum Marine Management Ltd. |
|
Operator |
Scorpio Bulkers Inc. Le Millenium, 9, boulevard Charles III 98000 Monaco-Ville Monaco |
|
Registered owner |
SBI Samson Shipping Co Ltd. |
|
Latest data adjustment |
04 June 2020 |
