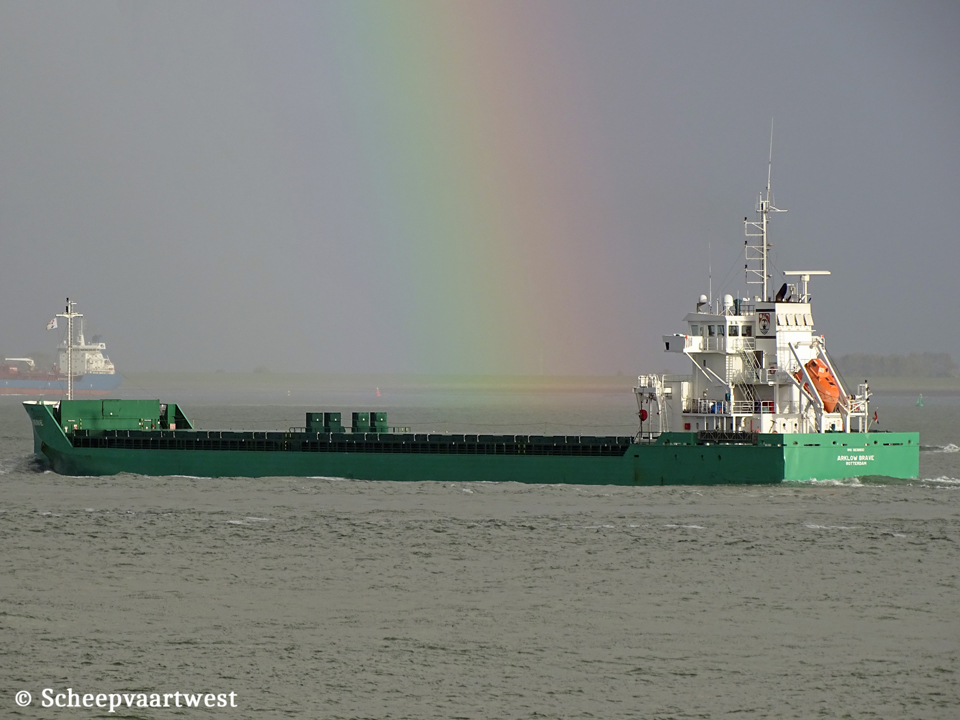

Westerschelde 08 October 2019 |
 |

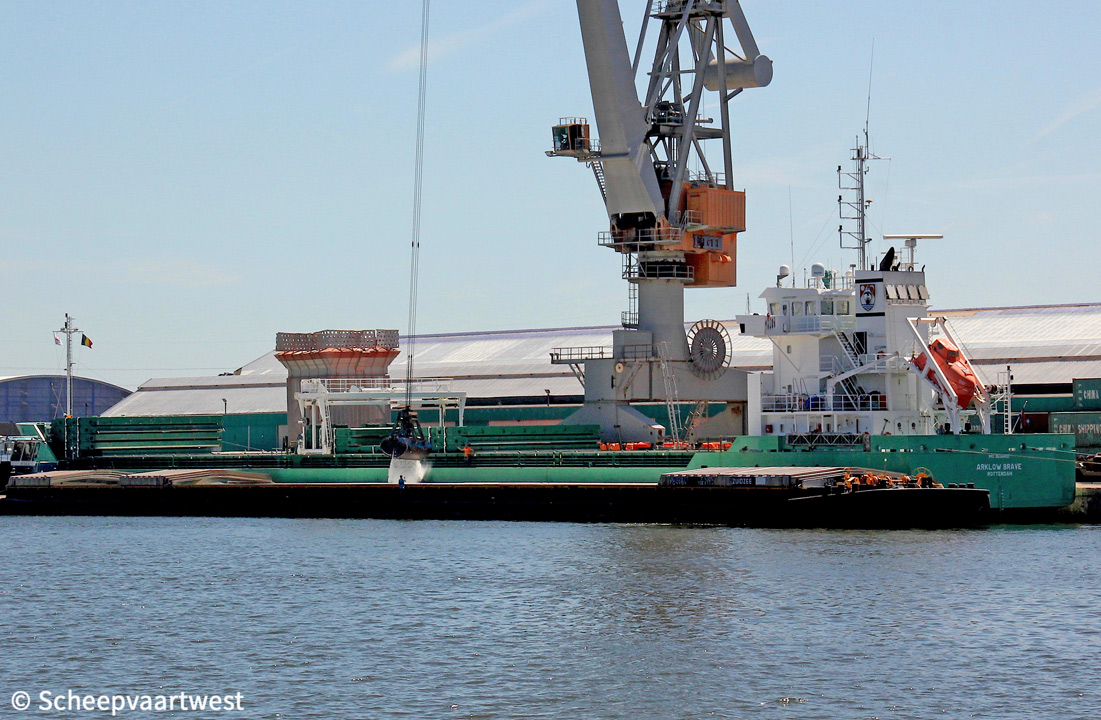

| Antwerpen 23/07/19 |
|
Name |
AKLOW BRAVE |
|
Type |
General cargo ship - Heavycargo - Occasional dry bulk cargo |
|
IMO-number |
9638800 |
|
Call sign |
PBPR |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
5.065 t |
|
DWT |
Summer: 8.660 t Winter: 8.407 t |
|
NT |
2.655 |
|
Length |
119,49 m overall 116,89 m between perpendiculars |
|
Breadth |
14,99 m |
|
Draught |
Summer: 7,19 m Winter: 7.05 m Ballast: 4,30 m |
|
Air draft |
Min: 23,28 m |
|
Freeboard |
2.524 mm |
|
Depth |
9,70 m |
|
Speed |
13,0 knots |
|
Built |
2015 |
|
Launch date |
12/12/2014 |
|
Date of completion |
29/01/2015 |
|
Builder |
Scheepswerf Ferus Smit B.V. Westerbroek The Netherlands |
|
Yard number |
413 |
|
Hull material |
Steel |
|
Movable bulkheads |
1x Portable (6positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M26C - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.665 kW / 3.621 hp at 750 rpm Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 143 rpm |
|
Generators |
2x Sisu main diesel generatorsets 295 kVA - 236 kW - 340 hp at 1.500 rpm |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 158 hp |
|
Bow thruster |
Electric Bow thruster 380 kW |
|
Number of holds |
2 Hold 1: 37,20 x 12,33 x 9,65 m Hold 2: 49,50 x 12,33 x 9,65 m |
|
Total Capacity of Holds |
Hold 1: 4.034,9 m³ / 142.484 ft³ Hold 2: 5.867,5 m³ / 207.222 ft³ Total: 9.902,4 m³ / 349.706 ft³ |
|
Hold ventilation |
6x Changes per hour in empty holds |
|
Max permitted loads |
On hatches: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel: 325,34 m³ |
|
ISM & commercial manager |
Arklow Shipping Nederland B.V. Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Registered owner |
Glenthorne Shipping Ltd. Care of Arklow Shipping Unlimited Co (Arklow Shipping ULC) North Quay, Arklow, Co Wicklow Ireland |
|
Latest data adjustment |
29 October 2021 |
