Antwerpen 31 December 2019 |
|
Name |

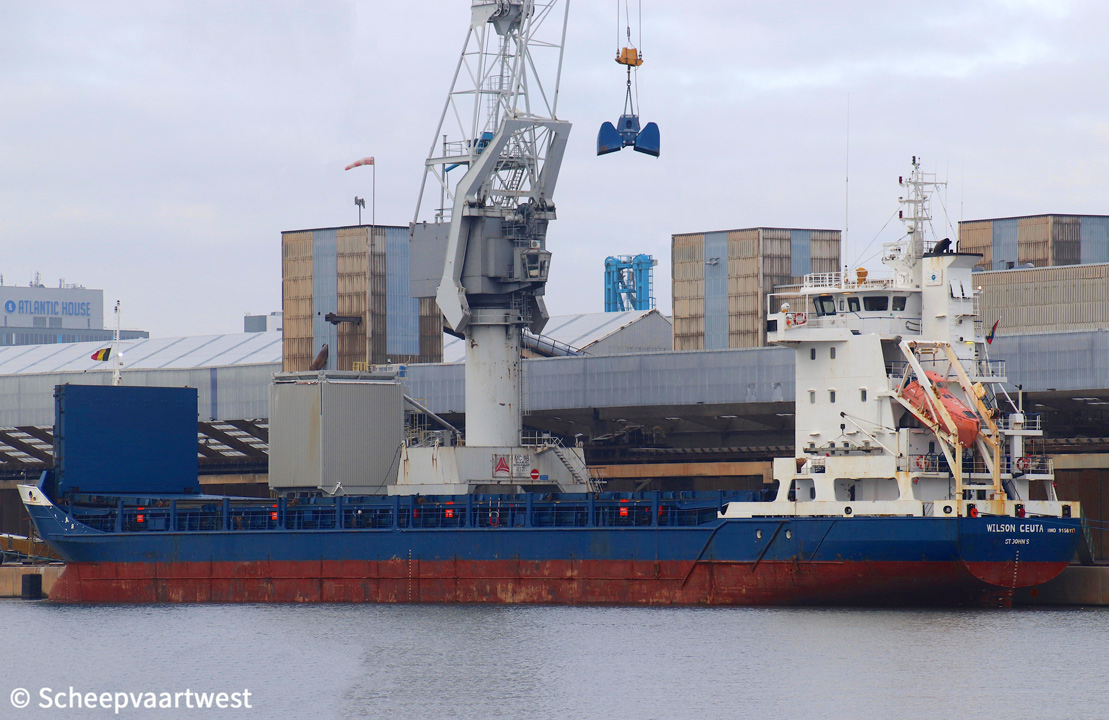

WILSON CEUTA |
|
Previous names |
2002 - 12/2003 Kathrin 12/2003 - 2017 Ulrike G |
|
Type |
General dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9156113 |
|
Call sign |
V2BY9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.994 t |
|
DWT |
Summer: 4.419 t Winter: 4.280 t |
|
NT |
1.733 t |
|
Number of 20ft containers |
In hold: 129 On deck: 168 Total: 297 |
|
Container capacity 14t |
185 |
|
Reefer capacity |
30 on deck |
|
Length |
99,80 m overall 95,80 m registered |
|
Breadth |
13,04 m overall 12,80 m moulded |
|
Draught |
Summer: 5,68 m Winter: 4,56 m |
|
Keel to antenna |
23,80 m, forward 30,00 m, aft |
|
Air draft |
26,50 m |
|
Depth |
7,55 m |
|
Speed |
13,0 knots |
|
Built |
2002 |
|
Keel laid |
05/11/1996 |
|
Launch date |
16/05/2002 |
|
Date of completion |
01/08/2002 |
|
Builder |
Brodogradiliste "SAVA" D.D. 77 Marsala Tito 22202 Macvanska Mitrovica Serbia |
|
Yard number |
320 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Movable bulkheads |
2x Movable bulkheads, 5 positions each hatch |
|
Number of decks |
1 |
|
Main engine |
1x Deutz TBD645L6 - 4 stroke single acting 6 cylinder 330 x 450 mm combustion engine 2.550 kW at 600 rpm Year of manufacture: 1996 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG Mannheim Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft 304 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Year of Manufacture: 1996 |
|
Electric installations |
1x Plant 380/220 V - 210 kVA 1x Plant 380/220 V - 210 kVA 1x Plant 380 V - 800 kVA 1x Plant 380 V - 49 kVA |
|
Shaft generator |
1x 675 kW /800 kVA |
|
Generators |
2x Deutz MWM TBD 234 V 8 main diesel generatorsets each 190 kW - 210 kVA |
|
Emergency generator |
1x F6L912 Diesel generatorset 49 kVA |
|
Compressed air receivers |
2x Receivers each 355 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster Jastram BU 40 F - 220 kW, forward |
|
Number of cargo holds |
1x Box type 70,85 x 10,20 x 8,17 m |
|
Cargo hold capacity |
Bale/Grain: 5.735 m³ / 204.296 ft³ |
|
Hold ventilation |
6 |
|
Number of hatches |
2 Hatch 1: 37,95 x 10,20 m Hatch 2: 31,20 x 10,20 m |
|
Hatch type |
Kvaerner multifold, crocodile |
|
Max permitted loads |
Deck/hatch covers: 1,70 t/m² Tank top: 15,0 t/m² |
|
Tank capacities |
Gas oil: 229,47 m³ Ballast water: 1.705 m³ |
|
Anchor equipment |
3x Anchors weight each 2.280 kg Chain length: 467,50 m Diameter: 36 mm |
|
Crew size |
15 |
|
Manager |
Gerdes Bereederungs- und Verwaltungs GmbH Hermannstr. 1A 49733 Haren/Ems Federal Republic of Germany |
|
Operator |
Wilson EuroCarriers AS Bradbenken 1 Bergen Norway |
|
Registered owner |
Gerems Schiffahrts GmbH & Co. KG MS "ULRIKE G" Hermannstr. 1A 49733 Haren/Ems Federal Republic of Germany |
|
Previous owners |
2002 - 2003 WESCO SH GmbH & Co. KG 2003 - 2004 Frank Hagenah 2004 - 2006 Hein Shipping Co. Ltd. |
|
Renamed |
03/2021 Breb Baltiysk Antigua & Barbuda, St. John’s - Call sign: V2BY9 Manager: Gerdes Bereederungs- und Verwaltungs GmbH Owner: Gerems Schiffahrts GmbH & Co. KG MS Ulrike G |
|
Latest data adjustment |
07 April 2021 |
