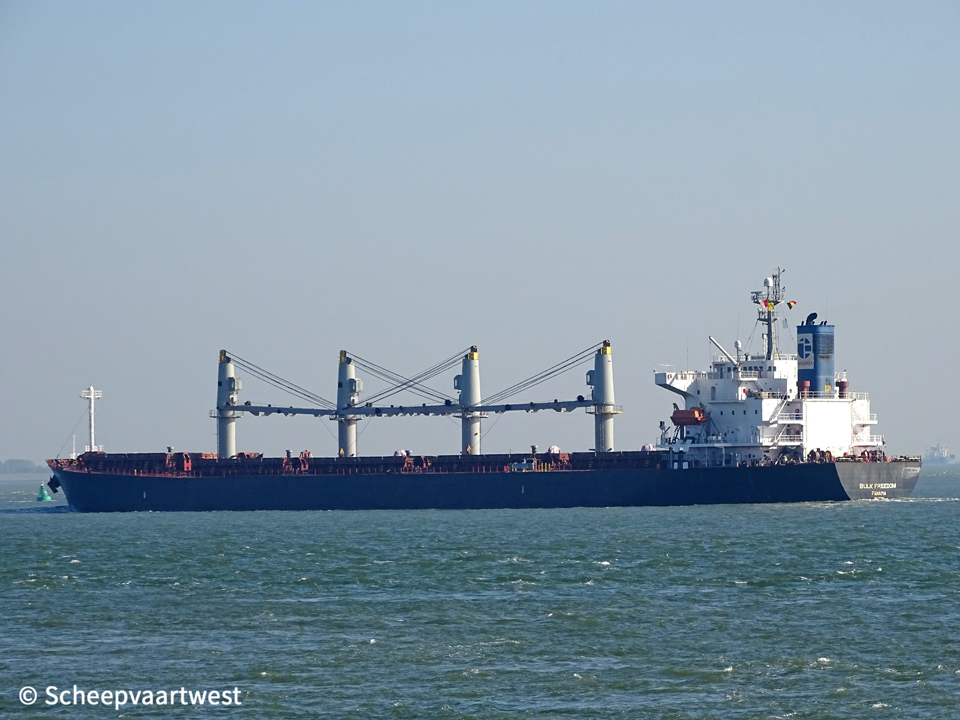

Westerschelde 10 October 2018 |
|
Name |
BULK FREEDOM |
|
Previous names |
2005 - 2017 Fujisuka |
|
Type |
Bulk tanker -Strengthened for heavy cargo loading Handysize |
|
IMO-number |
9317092 |
|
Call sign |
3FGP9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
30.057 t registered |
|
DWT |
Summer: 52.454 t |
|
NT |
18.207 t registered |
|
Displacement |
60.772 t |
|
Length |
189,99 m overall 182,00 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
Max: 12,02 m |
|
Moulded L x B x D |
182,00 x 32,26 x 17,00 m |
|
Registered L x B x D |
182,87 x 32,26 x 17,00 m |
|
Air draft |
46,00 m |
|
Deckhouse |
16,00 m |
|
Freeboard |
Summer: 5.024 mm |
|
Depth |
17,00 m |
|
Speed |
Service: 14,0 knots Max: 15,0 knots |
|
Built |
2005 |
|
Keel laid |
04/09/2004 |
|
Launch date |
21/12/2004 |
|
Date of completion |
30/01/2005 |
|
Builder |
Tsuneishi Corporation Fukuyama Japan |
|
Yard number |
1333 |
|
Hull material |
Steel |
|
Bulkheads |
7 |
|
Continuous decks |
1x Upper deck |
|
Main engine |
1x MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 1.910 mm combustion engine 7.800 kW / 10.605 hp at 116,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 520 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 116,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite- 7,0 bar Heating Area: 11,6 m² Heating Area: 151,1 m² Builder: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Daihatsu 5DK-20 main diesel generatorsets each 430 kW - 450 Volt Builder: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division |
|
Emergency generator |
1x Deutz BF6L913 diesel generatorset |
|
Number of cargo holds |
5 |
|
Cargo hold capacity |
Grain / Bale: Hold 1: 12.663,80 / 12.418,60 m³ Hold 2: 14.635,80 / 14.204,80 m³ Hold 3: 13.471,10 / 13.043,90 m³ Hold 4: 14.532,10 / 13.940,50 m³ Hold 5: 12.453,50 / 11.992,70 m³ Total: 67.756,30 / 65.600,5 m³ |
|
Number of hatches |
5 1x 20,40 x 18,40 m 4x 21,25 x 18,40 m |
|
Tank capacities |
Fuel oil: 2.570,8 m³ Fresh water: 409,4 m³ Water ballast: 15.407 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew size |
25 |
|
Manager |
Seamar Management S.A. Leof. Kifisias 90 Marousi 151 25 Greece |
|
Operator |
Pangaea Logistics Solutions Ltd. |
|
Registered owner |
Bulk Freedom Corporation |
|
Previous names & owners |
2005 - 2017 Fujisuka - Kambara Kisen Co Ltd. - Japan |
|
Latest data adjustment |
08 July 2020 |
