Antwerpen 06 May 2020 |
 |
| Antwerpen 06/05/20 |
|
Name |

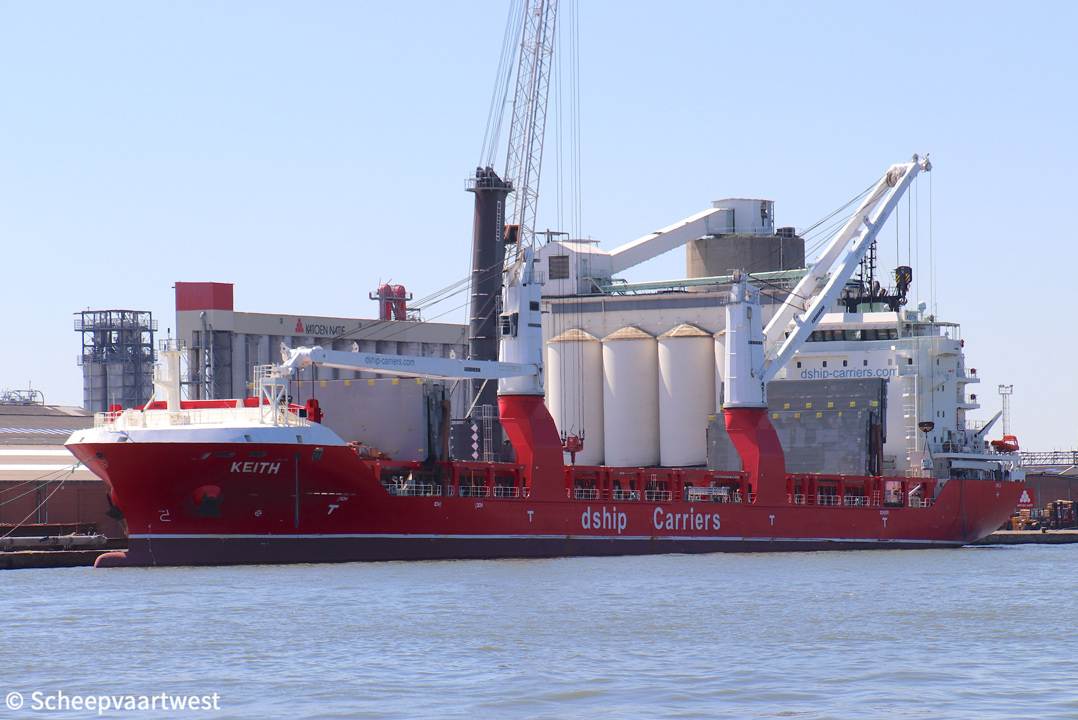

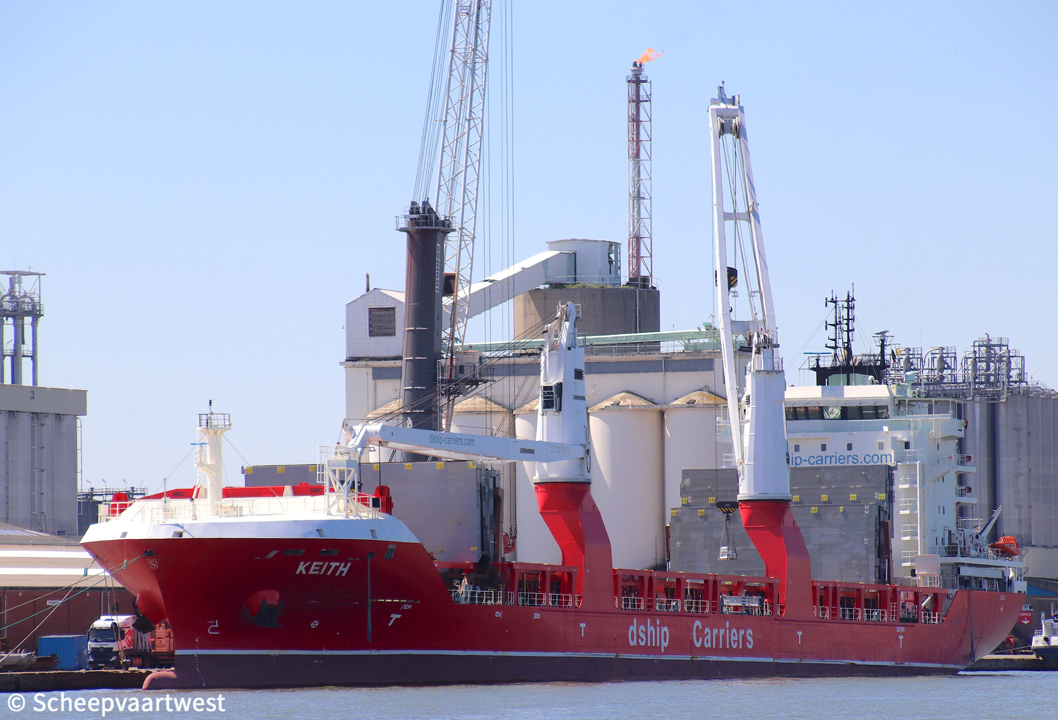

KEITH |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Heavy lift vessel |
|
Main products |
Grain, coils, metal concentrates, salt, sugar, cement, scrab metal and ore General cargo incl. cotton and agricultural products, steel, forest products, project cargo, heavy cargo, containers |
|
IMO-number |
9736195 |
|
Call sign |
V2HD5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
11.494 t |
|
DWT |
12.248 t |
|
NT |
4.387 t |
|
Number of 20ft containers |
On deck: 320 under deck: 552 Total: 872 |
|
Length |
147,00 m overall 140,55 m between perpendiculars |
|
Breadth |
23,05 m extreme 22,80 m moulded |
|
Draught |
Max: 8,10 m |
|
Depth |
11,55 m |
|
Speed |
Max: 17,5 knots |
|
Built |
2019 |
|
Keel laid |
18/08/2015 |
|
Launch date |
02/12/2016 |
|
Date of completion |
16/09/2019 |
|
Builder |
Taizhou Sanfu Ship Engineering Co., Ltd. China |
|
Yard number |
SF130202 |
|
Hull material |
Steel |
|
Main engine |
1X MAN 5G45ME C9.5 T II - 5 cylinder combustion engine 4.800 kW |
|
Propellers |
1x Wärtsilä mono-block propeller |
|
Boilers |
1x Thermal oil heater, oil fired 1x Thermal oil heater, exhaust heated |
|
Shaft generator |
1x 685 kW |
|
Generators |
3x MAN D2842 LE301 main diesel generatorsets each 590 kW - 230 Volt 50 Hz |
|
Emergency generator |
1x Scania DI9 M diesel generatorset 268 kW |
|
Bow thruster |
600 kW |
|
Number of cargo holds & hatches |
2 Hold 1: 12,75 x 12,56 m aft to 8,80 m fwd Tweendeck position 5,50 m Hydraulic folding covers opening fwd and aft Hold 2: 76,50 x 17,60 m Tweendeck positions 5,40/7,10 m Hydraulic folding covers opening fwd and aft middle pontoon type roll and lifted away |
|
Cargo hold capacity |
Bale: 17.612 m³ / 621.961 ft³ |
|
Max permitted loads |
Tanktop: 20,0 t/m² Tweendeck hold: 4,0 t/m² Hatchcovers: 4,0 t/m² on folding covers 8,0 t/m² on pontoon covers |
|
Tank capacities |
IFO: 559 m³ MDO: 118 m³ Fresh water: 198,66 m³ Ballast: 5.824,6 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Cargo gear |
2x Liebherr cranes - SWL 250 t located port side, combinable to SWL 500 t Outreach SWL : 250 t - 18,00 m 200 t - 20,00 m 160 t - 25,00 m 120 t - 33,00 m 45 t - 36,00 m Aux. Hook: 45 t - 36,00 m |
|
Manager |
HS Bereederungs GmbH & Co. KG |
|
Operator |
Dship Carriers GmbH & Co. KG Pickhuben 5 20457 Hamburg Germany |
|
Registered owner |
Schiffahrts UG (haftungsbeschränkt) & Co. KG MS "Marga" |
|
Sister ships |
Mick |
|
Latest data adjustment |
14 July 2020 |
