Westerschelde 26 July 2020 |
 |
|
| Westerschelde 05/10/15 | |
|
Name |

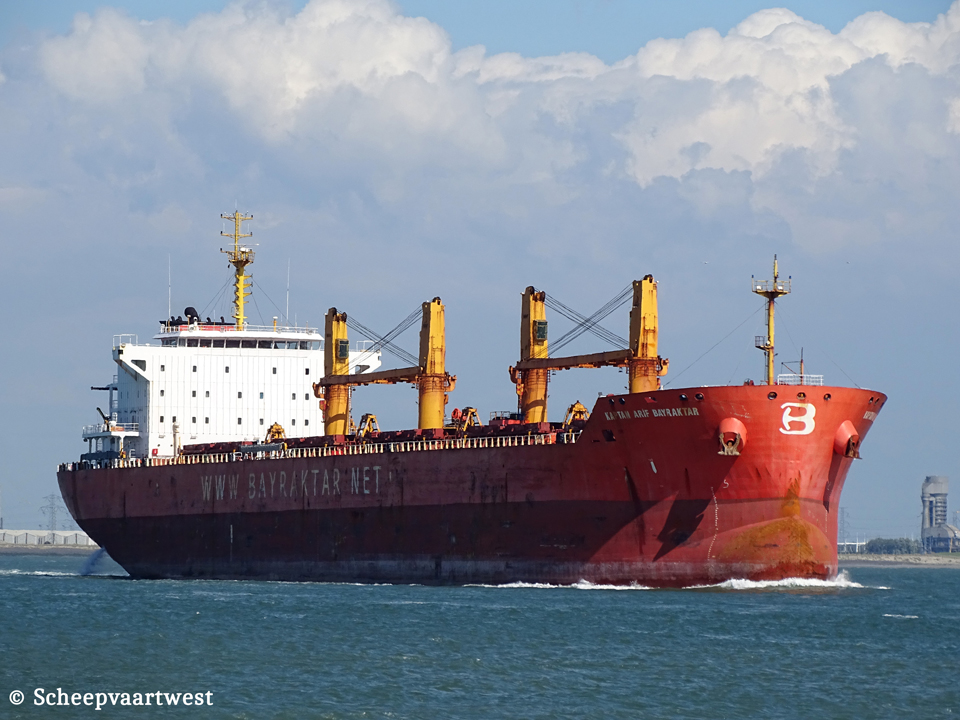

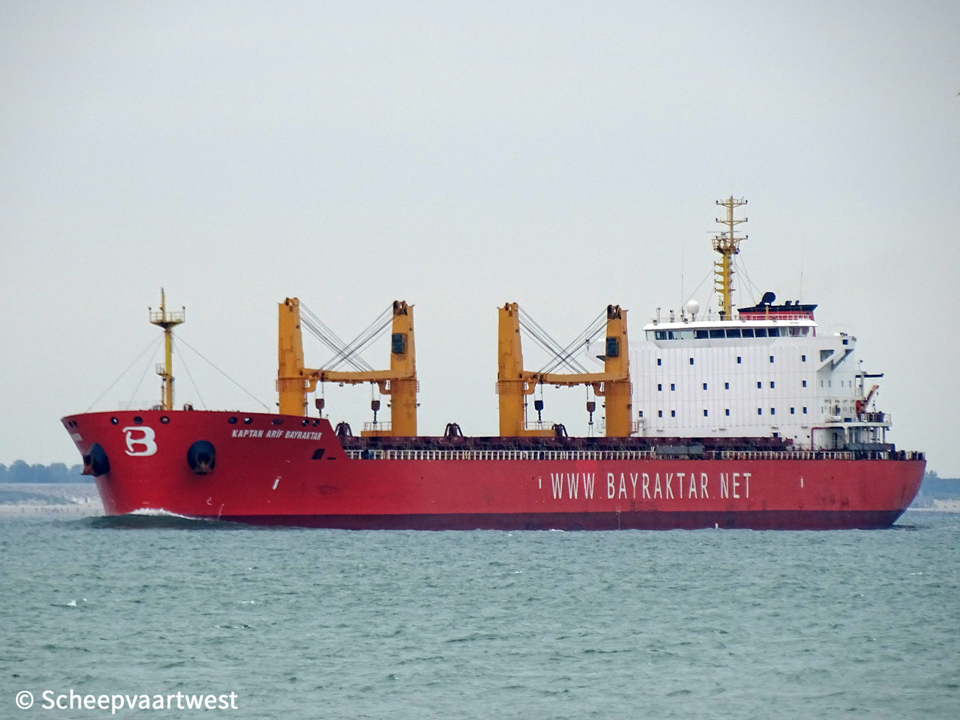

KAPTAN ARIF BAYRAKTAR |
|
Type |
Bulk carrier |
|
IMO-number |
9449560 |
|
Call sign |
9HA2644 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2010 - 2010 Turkey - Call sign: TCZE5 |
|
GT |
34.509 t Suez: 34.980 t |
|
DWT |
Summer: 59.054 t |
|
NT |
18.900 t Suez: 31.680 t |
|
Length |
195,00 m overall 189,98 m between perpendiculars |
|
Breadth |
32,24 m |
|
Draught |
Max: 13,20 m |
|
Freeboard |
5.563 mm |
|
Depth |
18,50 m moulded |
|
Speed |
14,0 knots |
|
Built |
2010 |
|
Date of completion |
18/10/2010 |
|
Builder |
Cicek Tersanesi (Shipyard Marine Industry) Tuzla Turkey |
|
Yard number |
50 |
|
Hull material |
Steel |
|
Main engine |
1x MAN 7S50MC-C - 2 stroke 7 cylinder 500 x 2.000 mm combustion engine 11.060 kW / 15.037 hp at 110,0 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHO Heatmaster BV 28,42 m² - 10,0 bar 1x CHR Heatmaster BV 260,00 m² - 10,0 bar |
|
Shaft generator |
805 kW |
|
Generators |
3x Main diesel generatorsets each 806 kVA - 645 kW - 938 hp |
|
Emergency generator |
1x Diesel generatorset 288 kVA - 230 kW - 360 hp |
|
Bow thruster |
700 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale / Grain: Hold 1: 11.838 / 12.030 m³ Hold 2: 15.003 / 15.672 m³ Hold 3: 15.003 / 15.672 m³ Hold 4: 15.003 / 15.672 m³ Hold 5: 23.564 / 13.762 m³ Total: 70.411 / 72.808 m³ |
|
Number of hatches |
5 Hatch 1: 18,71 x 18,57 m Hatch 2-5: 21,16 x 18,57 m |
|
Hatch type |
MacGregor hydraulic cylinders, folding type |
|
Max permitted loads |
Tanktop: 25,0 t/m² |
|
Tank capacities |
IFO: 2.297,41 m³ DO: 165,93 m³ Fresh water: 269,82 m³ Ballast: 17.769, 10 m³ (excluding hold 3) |
|
Cargo gear |
4x Electro hydraulic cranes - SWL 30,0 t each |
|
Crew |
18 |
|
ISM a commercial manager |
Bayraktar Shipping Group of companies c/o Bayraktar Gemi Isletmecili, (Bayraktar Shipmanagement &, Chartering SA) Daires 78-83, Kat 3, Sadikoglu Plaza 5, Kasap Ismail Sokak Istanbul Turkey |
|
Registered owner |
Kab Bulk Shipping Co., Ltd. Care of Bayraktar Gemi Isletmeciligi ve Kiralama AS (Bayraktar Shipmanagement & Chartering SA) Daires 78-83, Kat 3, Sadikoglu Plaza 5, Kasap Ismail Sokak Egitim Mah, Kadikoy 34722 Istanbul Turkey |
|
Latest data adjustment |
05 January 2023 |
