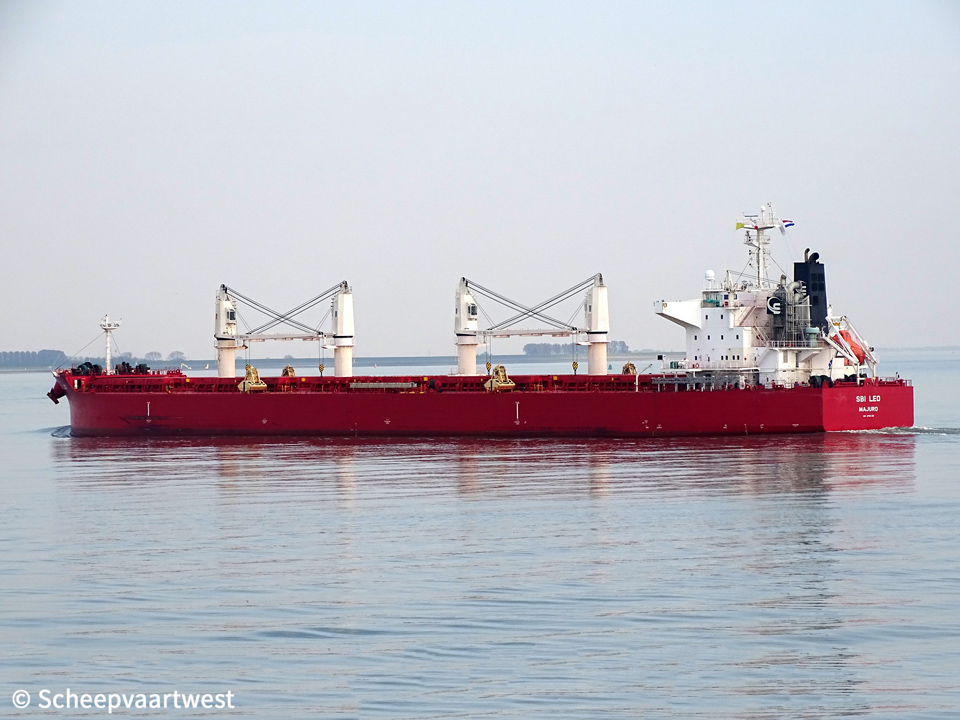

SBI Leo 01

Westerschelde 16 April 2020



Name

SBI LEO

Type

Bulk carrier

IMO-number

9705146

Call sign

V7IV6

Flag

Marshall Islands

Port of registry

Majuro

GT

34.586 t t

DWT

Summer: 61.614 t

NT

20.211 t

Length

199,91 m overall

197,01 m between perpendiculars

Breadth

32,30 m extreme

32,24 m moulded

Draught

Summer: 13,03 m

Forecastle

13,92 m

Deckhouse

18,48 m

Freeboard

5.626 mm

Depth

18,60 m moulded

Speed

15,0 knots

Built

2015

Keel laid

14/08/2014

Launch date

07/11/2014

Date of completion

16/02/2015

Builder

Dalian COSCO KHI Ship Engineering Co., Ltd.

China

Yard number

DE018

Hull material

Steel

Hull type

Double bottom

Bulkheads

6

Continuous decks

1x Upper deck

Main engine

1X HHM/MAN-B&W 6S50ME-B - 6 cylinder 500 x 2.214 mm combustion engine 8.130 kW at 108,0 rpm

Build: 22/08/2014

Builder: Hudong Heavy Machinery

Propellers

1

Boilers

1x Auxiliary boiler, composite Aalborg OC

Builder: Alfa Laval Qingdao Ltd.

Generators

3x Yanmar 6EY18AL - 4 stroke 6 cylinder 180 x 280 mm diesel engine each 800 kW connected with generators each 720 kW

Designer: Yanmar Power Technology Co., Ltd.

Emergency generator

1x Doosan AD/L 136 diesel generatorset

Designer: Doosan Infracore Co., Ltd.

Number of hold

5

Cargo hold capacity

Grain

Hold 1: 14.270,30

Hold 2: 16.805,60

Hold 3: 15.631,30

Hold 4: 16.805,60

Hold 5: 14.033,40

Total: 77.546,2 m³

Number of hatches

5

4x 21,36×18,60 m

1x 18,69×18 60 m

Tank capacities

Ballast: 33.960,3 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manager

Optimum Marine Management Ltd.

110, Vouliagmenis Ave. & Zamanou Str.

Glyfada

16674 Athens

Greece

Commerical manager

Scorpio Commercial Management SAM

Le Millenium - 9 Boulevard Charles III

MC 98000 Monaco

Registered owner

Star Leo Shipping Limited

Latest data adjustment

20 August 2020
