Name |

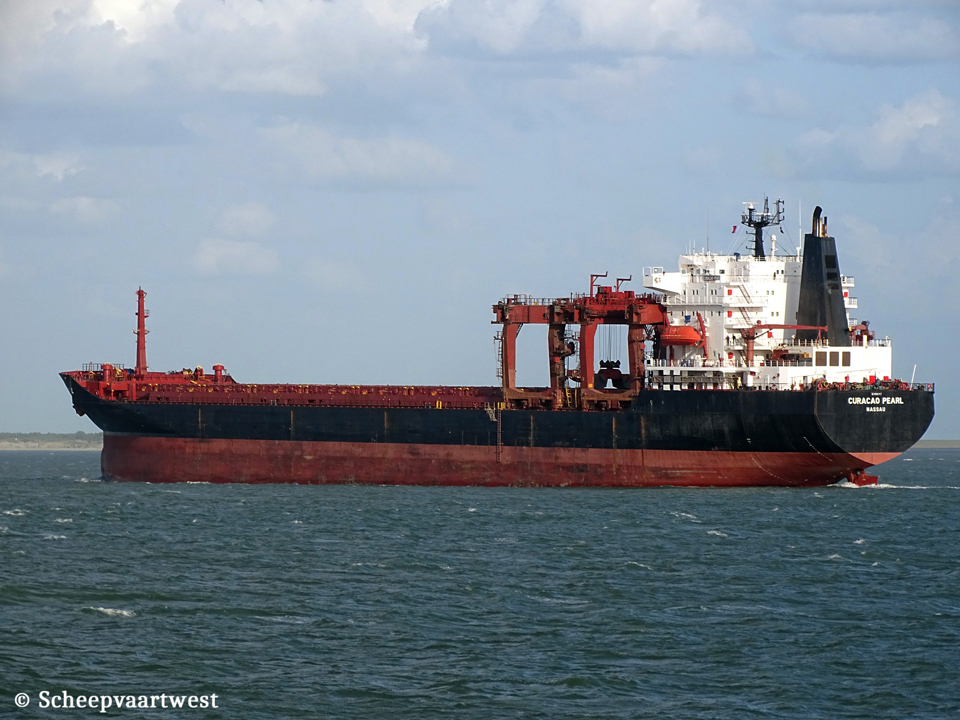

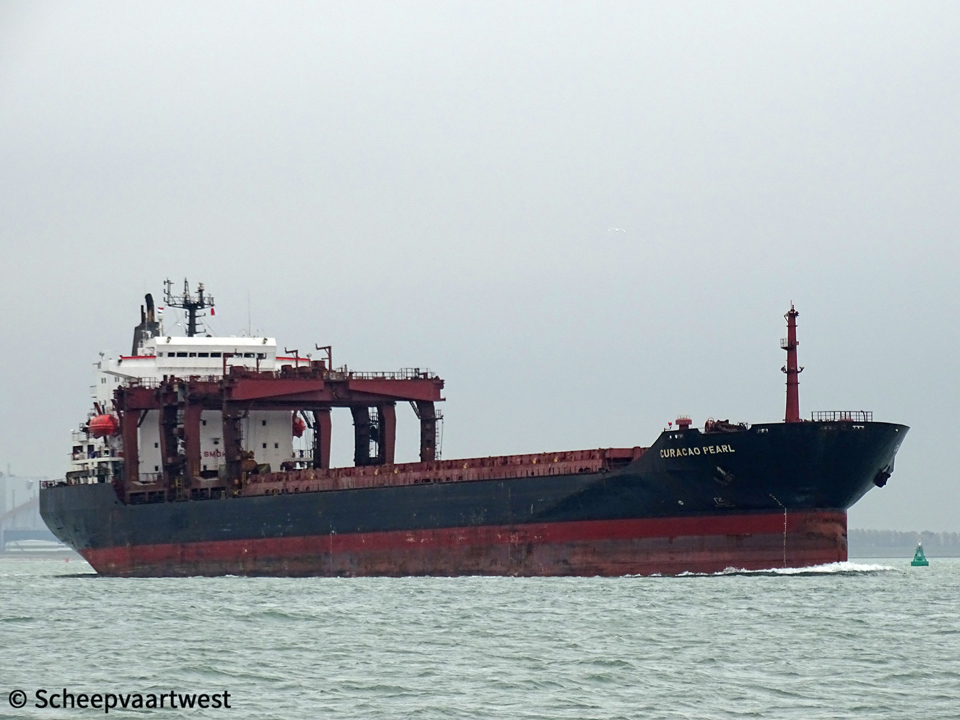

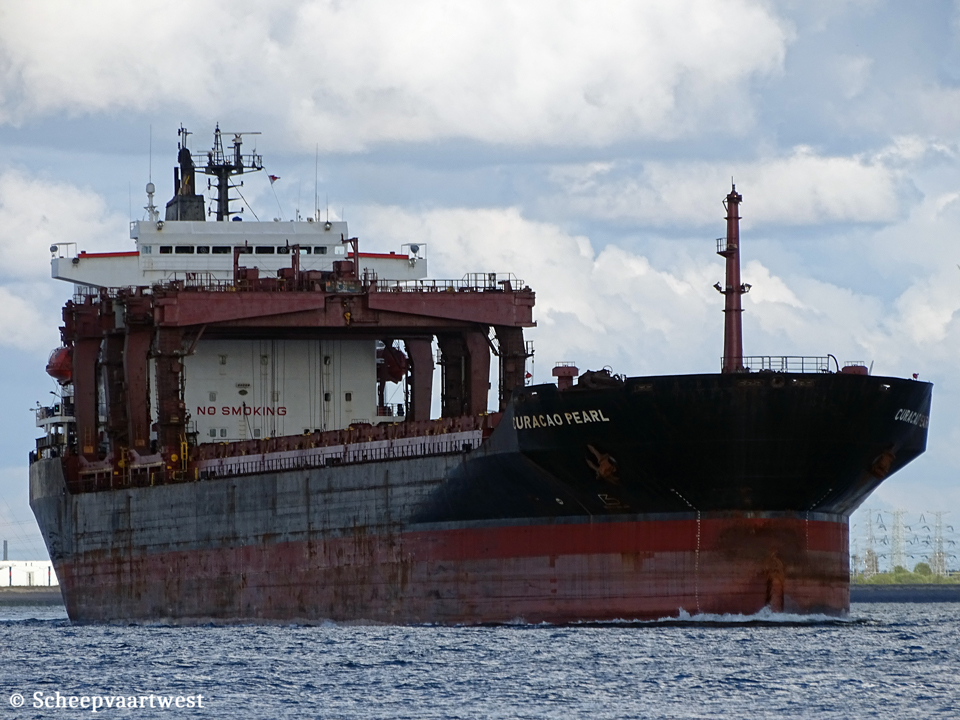

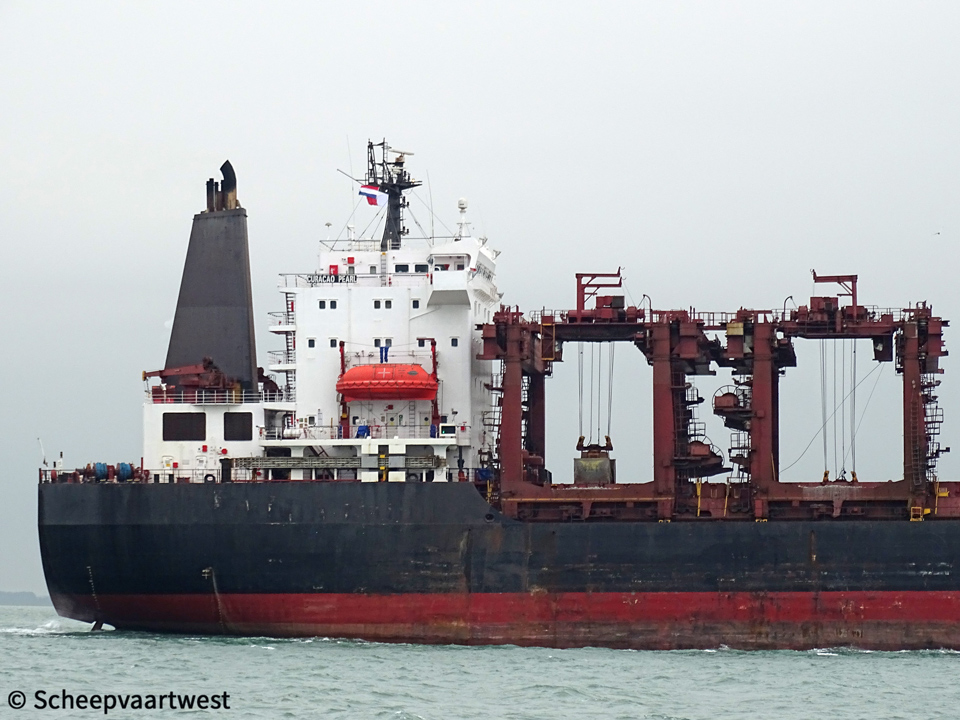

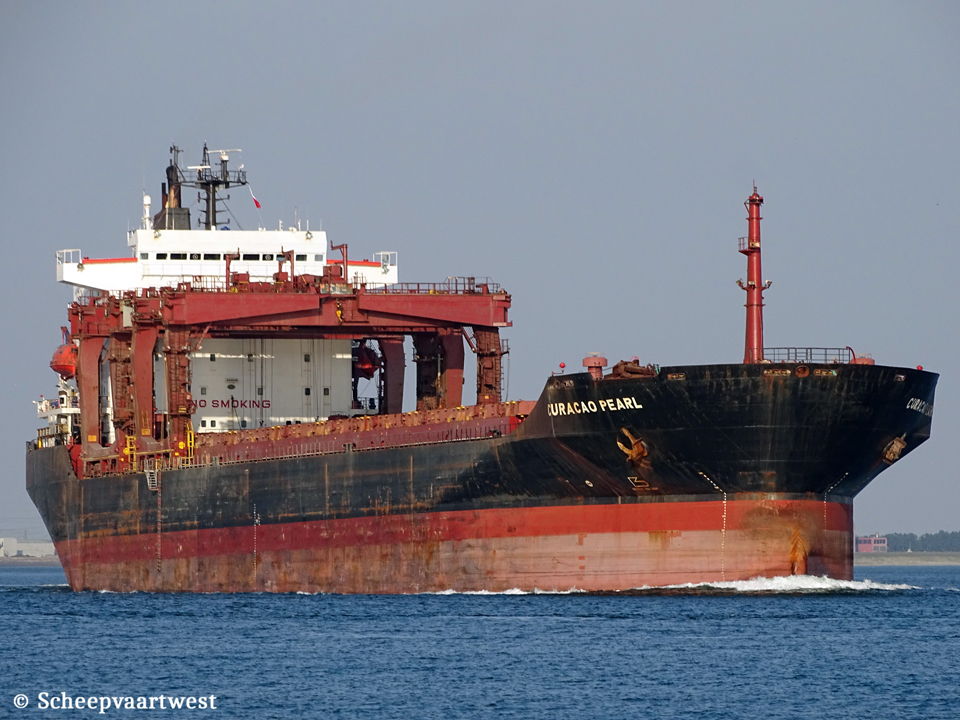

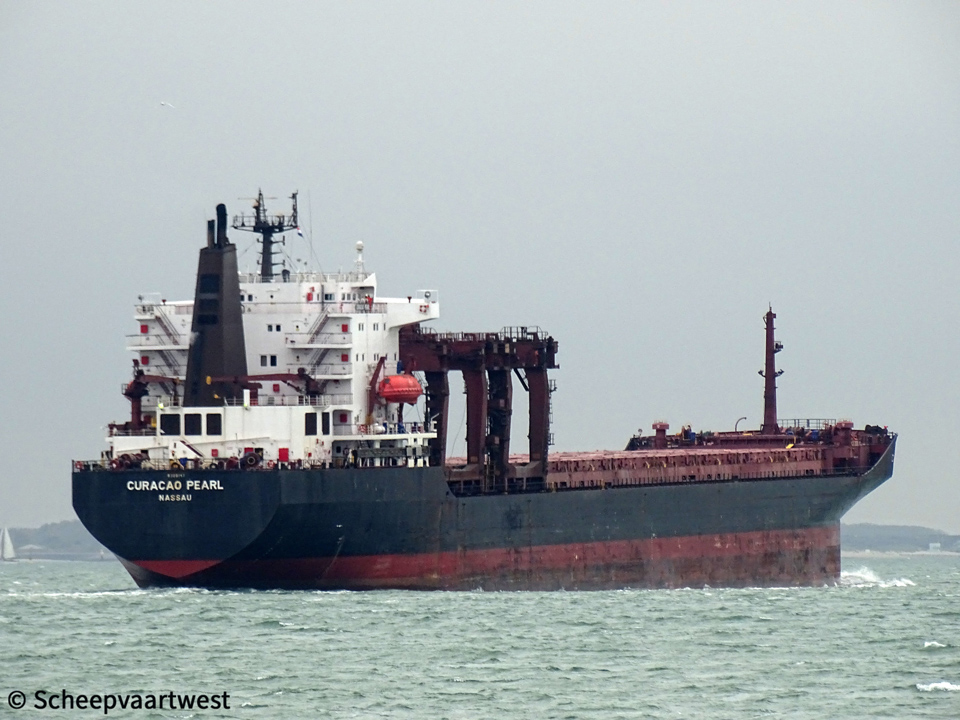

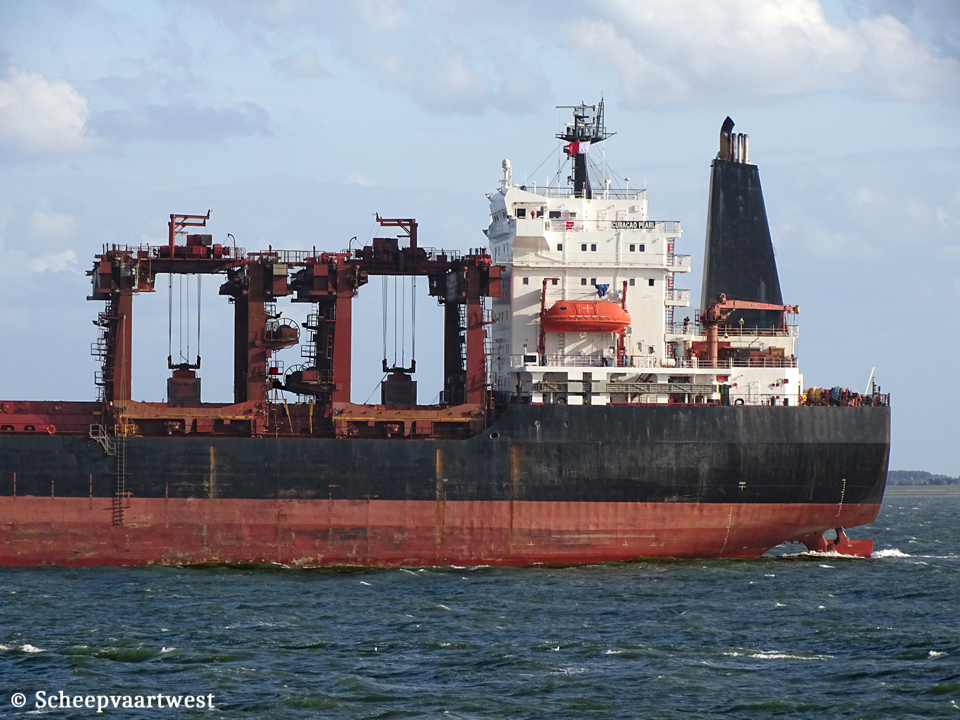

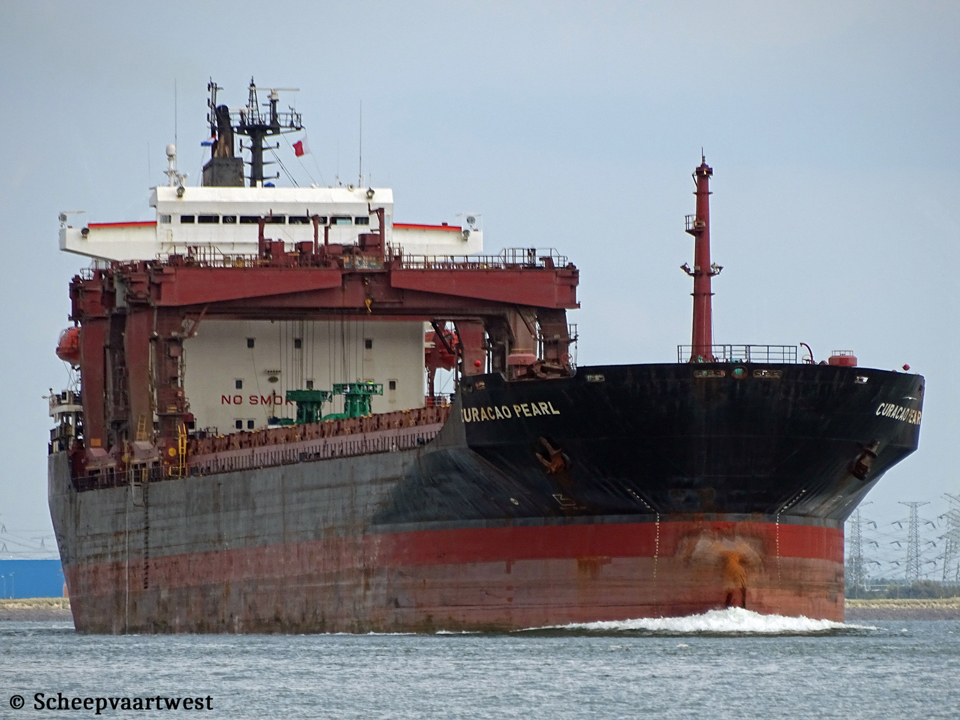

CURACAO PEARL |
|
Previous names |
1984 - 1989 Chelsfield 1989 - 03/2013 Crane Arrow |
|
Type |
General cargo carrier - Forest product carrier - Box shaped |
|
IMO-number |
8308147 |
|
Call sign |
C6JG6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
27.818 t |
|
DWT |
42.913 t |
|
NT |
12.649 t |
|
Number of 20ft containers |
1.584 |
|
Length |
187,50 m overall 178,90 m between perpendiculars |
|
Breadth |
29,47 m extreme |
|
Draught |
12,34 m |
|
Depth |
16,92 m |
|
Speed |
15,0 knots |
|
Built |
1984 |
|
Keel laid |
02/04/1984 |
|
Date of completion |
16/11/1984 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. #1, Jeonha-Dong, Dong-Gu 82-792 Ulsan Republic of Korea |
|
Yard number |
315 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse bulkheads: 9 Longitudinal bulkheads: 2 |
|
Main engine |
1x MAN-B&W/Hyundai 6L60MCE - 2 stroke 6 cylinder 600 x 1.944 mm combustion engine 6.055 kW / 8.232 hp at 110,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite - Osaka OEVC/150/105/22 |
|
Generators |
3x Wärtsilä 6R22HF - 4 stroke 6 cylinder 220x 240 mm diesel engines each 795 kW connected with generatorsets each 750 kW |
|
Bow thruster |
1x 880 kW |
|
Number of holds |
7x Box shaped Hold 1: 12,40 x 17,00 x 15,93 m Hold 2: 24,60 x 23,00 x 16,93 m Hold 3: 12,40 x 23,00 x 16,93 m Hold 4: 24,60 x 23,00 x 16,93 m Hold 5: 12,40 x 23,00 x 16,93 m Hold 6: 24,60 x 23,00 x 16,93 m Hold 7: 12,40 x 23,00 x 15,88 m |
|
Cargo capacity |
Grain: 47.671 m³ Bale: 46.280 m³ |
|
Number of hatches |
7 1x Hatch with dimension: 12,40 x 15,93 m 5x Hatches with dimension: 24,60 x 16,93 m 12,40 x 16,93 m 24,60 x 16,93 m 12,40 x 16,93 m 24,60 x 16,93 m 1x Hatches with dimension: 12,40 x 15,88 m |
|
Tank capacities |
Ballast: 16.778,2 m³ Fuel oil: 2.230 t Fresh water: 360 t |
|
Cargo gear |
2x Mitsui-Paceco gantry cranes - SWL 35,0 t each |
|
Commercial manager |
SMT Shipping Cyprus Ltd. 33, Michalis Zavos Street, Agios Athanasios 4107 Limassol Cyprus |
|
ISM manager |
SMT Shipping Poland SP z.o.o. Parkowa 46 81-727 Sopot Poland |
|
Registered owner |
Curacao Pearl Shipping Co., Ltd. Care of SMT Shipping (Cyprus) Ltd. 33, Michalis Zavos Street, Agios Athanasios 4107 Limassol Cyprus |
|
Renamed |
2022 Bontrup Maldives Bahamas, Nassau - call sign: C6JG6 Owner: Bontrup Maldives Shipping Co., Limassol - Cyprus Manager: SMT Shipping (Cyprus) Ltd., Sopot - Poland. |
|
Scrapped |
26/11/23 Beached at Alang - India |
|
Latest data adjustment |
02 January 2024 |
