Westerschelde 27 October 2016 |
|
Name |

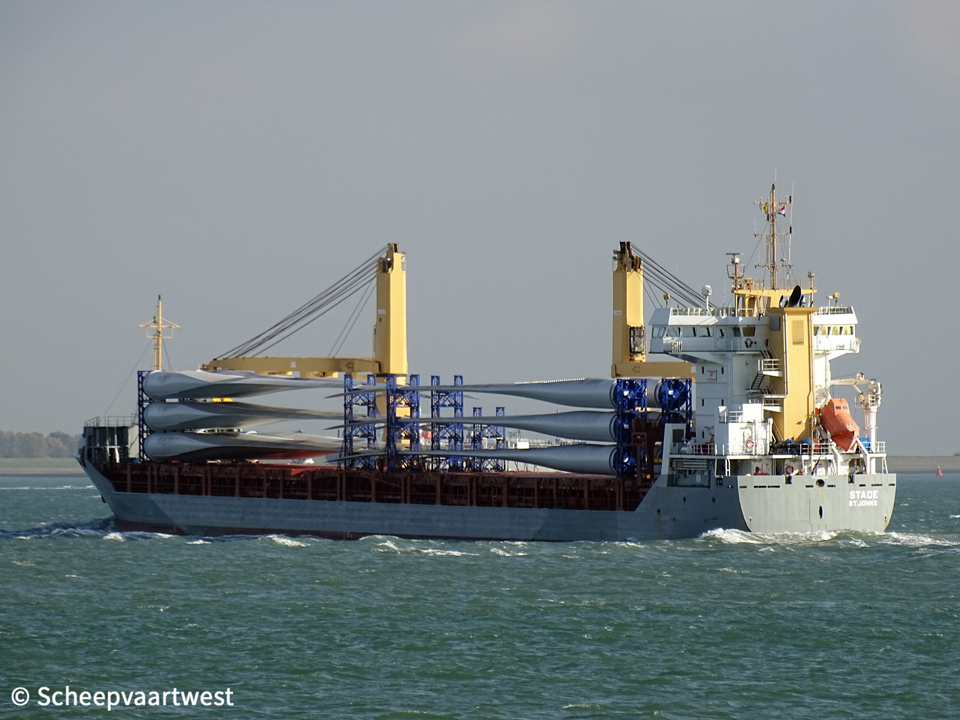

STADE |
|
Type |
General cargo ship - Heavy load carrier - Tween decker - Strengthened for heavy cargoes |
|
IMO-number |
9535620 |
|
Call sign |
V2QH3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
8.059 t |
|
DWT |
Summer: 10.872 t |
|
Number of 20ft containers |
663 |
|
Container capacity 14t |
426 |
|
Reefer capacity |
60 |
|
Length |
146,23 m overall |
|
Breadth |
18,25 m |
|
Draught |
Summer: 7,40 m |
|
Depth |
10,30 m |
|
Speed |
Max: 14,8 knots Service: 14,2 knots |
|
Built |
2011 |
|
Date of completion |
07/2011 |
|
Builder Casco |
Damen Shipyards Yichang Yichang China |
|
Builder completion |
Scheepswerf Damen B.V. Gorinchem The Netherlands |
|
Yard number |
567312 |
|
Hull material |
Higher tensile steel |
|
Main engine |
1x MaK 9M32C - 4 stroke single acting 9 cylinder 320 x 480 mm combustion engine 4.320 kW / 5.873 hp at 600 rpm |
|
Propellers |
1x Controllable pitch propeller- aft at 159,0 rpm |
|
Boilers |
2x Thermal oil heaters |
|
Shaft generator |
1x 760 kW - 50 Hz |
|
Generators |
3x Caterpillar 3412 - 4 stroke 12 cylinder 137 x 152 diesel engines each 382 kW connected with generators each 350 kW - 400 Volt 50 Hz |
|
Emergency generator |
1x Sisu/Valmet 620DSRG - 4 stroke 6 cylinder 108 x 120 diesel engine 110 kW |
|
Bow thruster |
1x Tunnel thruster 650 kW / 884 bhp, forward |
|
Number of holds |
2 |
|
Cargo hold capacity |
Grain: 14.878 m³ |
|
Cargo gear |
2x Cranes - SWL 80,0 t each |
|
Crew size |
12 |
|
Manager |
Heinz Corleis Reederei KG Freiburher Strasse 3 Stade Niederelbe Germany |
|
Registered owner |
Stade CV |
|
Latest data adjustment |
14 September 2020 |
