Westerschelde 25 June 2020 |
|
Name |

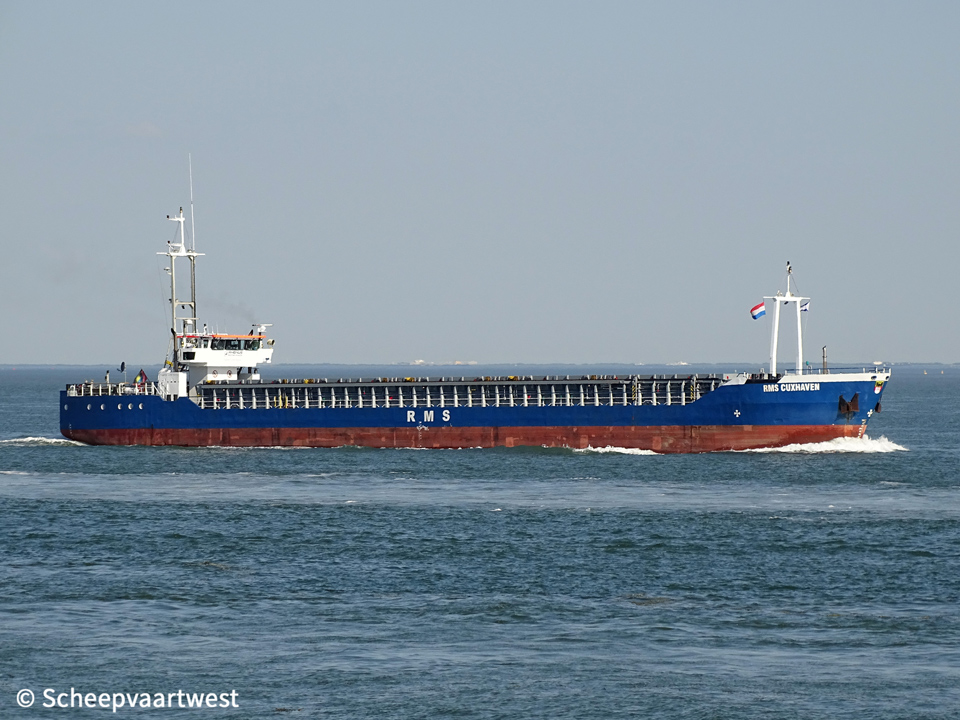

RMS CUXHAVEN |
|
Previous names |
2001 - 07/2014 Danio |
|
Type |
General cargo ship - Sea and river going vessel |
|
IMO-number |
9218533 |
|
Call sign |
V2OF8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
1.499 t |
|
DWT |
Summer: 1.797,4 t |
|
DWCC |
Summer: 1.800 t Winter: 1.750 t |
|
NT |
578 t |
|
Light ship |
821 t |
|
Length |
80,25 m overall 77,15 m between perpendiculars |
|
Breadth |
11,42 m extreme |
|
Draught |
Summer: 3,20 m |
|
Air draft |
25,00 m |
|
Freeboard |
1.805 mm |
|
Depth |
4,75 m |
|
Speed |
10,0 knots |
|
Built |
2001 |
|
Keel laid |
29/12/1999 |
|
Launch date |
27/10/2000 |
|
Date of completion |
10/05/2001 |
|
Builder casco |
Daewoo Mangalia Heavy Industries S.A. Mangalia Romania Yard number: 1026 |
|
Builder completion |
Pattje Scheepswerf Waterhuizen The Netherlands Yard number: 440 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
2x Volvo Penta TAMD 163 A-A - 6 cylinder 144 x 165 mm combustion engines each 540 hp total 1.080 hp at 1.800 rpm Builder: Volvo Penta AB, Gøteborg - Sweden |
|
Propellers |
2x Fixed propeller 5 blades - Diameter: 1.650 mm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x Sisu 320 DSG - 4 stroke 3 cylinder 108 120 mm main diesel engine each 80 kW connected with generators each 60 kVA |
|
Emergency generator |
1x Volvo TAMD 122 A diesel generatorset |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
1x Boxhold 52,50 x 9,12 m x 5,58 m |
|
Cargo hold capacity |
Grain & Bale: 93.800 ft³ |
|
Number of hatches |
1 52,50 x 9,12 m |
|
Hatch type |
Pontoon type hydraulic operation |
|
Max permitted loads |
Hatch covers: 1,5 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.309,2 m³ |
|
Anchor equipment |
Length: 298,00 m Diameter: 26 mm |
|
Crew |
5 |
|
Manager |
Rhenus Maritime Services GmbH Duisburg Germany |
|
Registered owner |
Rhenus Maritime Services GmbH & Co. KG Duisburg Germany |
|
Latest data adjustment |
19 September 2020 |
