Westerschelde 25 June 2020 |
 |
|
| Westerschelde 04/01/20 | |
|
Name |

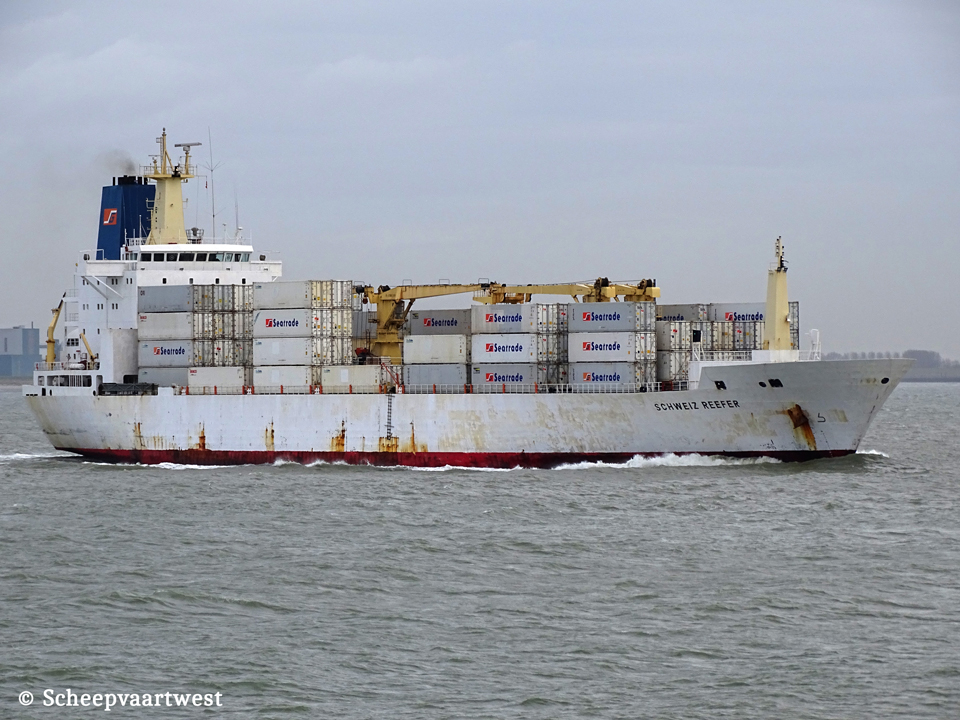

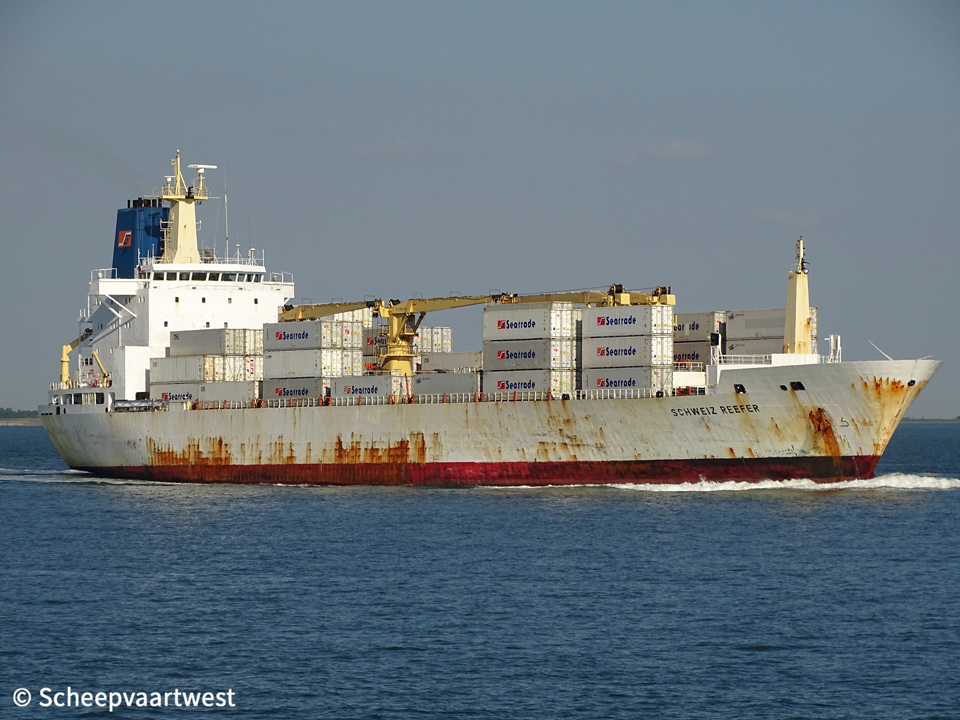

SCHWEIZ REEFER |
|
Previous names |
1992 - 2014 Chiquita Schweiz |
|
Type |
General and refrigerated cargo vessel |
|
IMO-number |
9015216 |
|
Call sign |
C6KD9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
13.049 t registered |
|
DWT |
13.930 t |
|
NT |
5.353 t registered Panama: 10.877 t Suez: 10.958,59 t |
|
Number of 20ft containers |
439 |
|
Reefer capacity |
147 |
|
Length |
158,12 m overall 144,99 m between perpendiculars |
|
Breadth |
24,40 m |
|
Draught |
Summer: 10,02 m Winter: 9,81 m |
|
Freeboard |
2.807 mm |
|
Depth |
15,70 m |
|
Speed |
Service: 21,8 knots |
|
Built |
1992 |
|
Keel laid |
12/08/1991 |
|
Launch date |
31/10/1992 |
|
Date of completion |
29/05/1992 |
|
Builder |
Danyard A/S Frederikshavn Denmark |
|
Yard number |
711 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
6 |
|
Main engine |
1x MAN-B&W 8S60MC - 2 stroke single acting 8 cylinder 600 x 2.292 mm combustion engine 15.218,4 kW / 20.401 hp at 102,0 rpm Build: 23/10/1991 Builder: Kawasaki Heavy Industries Co., Ltd. (B&W), Kobe - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 102 rpm |
|
Boilers |
1x CHR Aalborg 980,00 m² - 10,0 bar 1x CHM Aalborg 48,00 m² - 10,0 bar |
|
Generators |
2x Diesel generatorsets each 1.250 kVA - 1.000 kW - 1.359 hp 2x Diesel generatorsets each 2.000 kVA - 1.600 kW - 2.174 hp |
|
Emergency generator |
1x Diesel generatorsets 195 kVA - 156 kW - 235 hp |
|
Number of holds |
4 |
|
Cargo hold capacity |
645.586 ft³ / 18.281 m³ |
|
Pallets |
8.611 |
|
Number of hatches |
4 |
|
Compartments |
18 |
|
Number of tanks |
Fuel oil: 12 Ballast: 9 Lubricating oil: 8 Fresh water: 4 Diesel oil: 4 Slop: 2 Fixed ballast liquid: 2 Sludge: 2 Thermal oil: 1 Chain: 1 Wast water: 1 |
|
Tank capacities |
Fresh water: 352 m³ Fuel oil: 2.083 m³ Tank ballast: 2.598 m³ |
|
Cargo gear |
2x Cranes - SWL 36,5 t each 1x Crane - SWL 40,6 t |
|
Manager |
Chartworld Shipping Corporation 2, Zisimopoulou Street & Poseidonos Avenue Glyfada, 166 74 Athens Greece |
|
Registered owner |
Schweiz Stream Shipping Company Ltd. Athens Greece |
|
Renamed |
2020 Schweiz Stream Bahamas, Nassau - Call sign: C6KD9 Manager: Diamond Ship Management NV Owner: Schweiz Shipping Corporation |
|
Latest data adjustment |
20 September 2020 |
