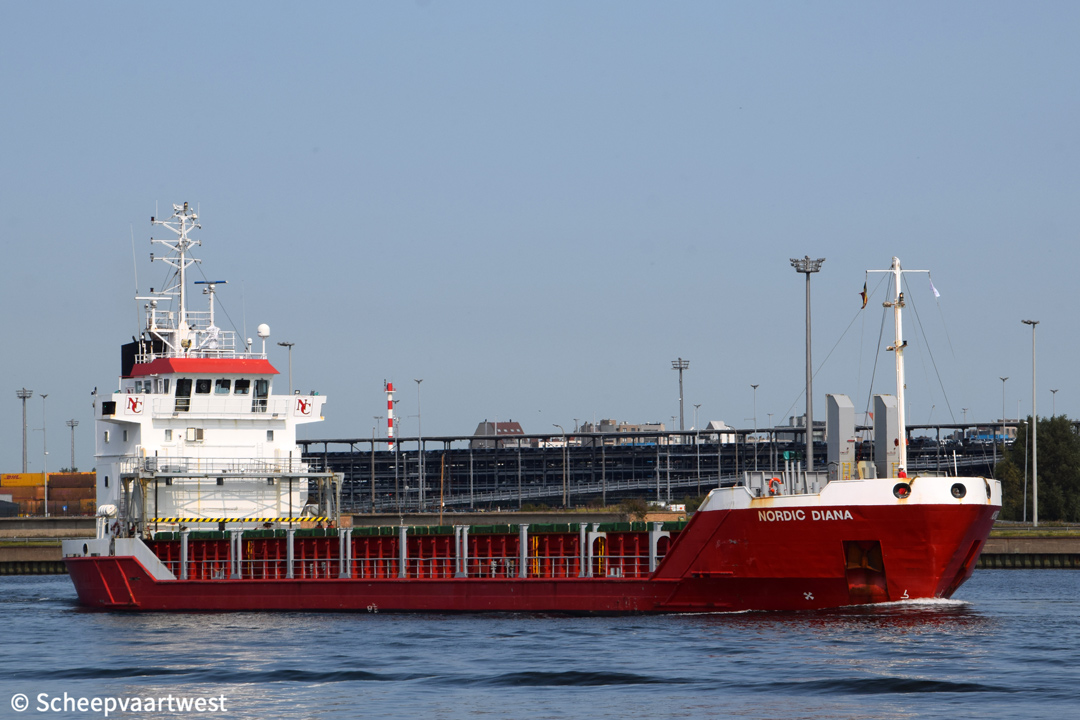

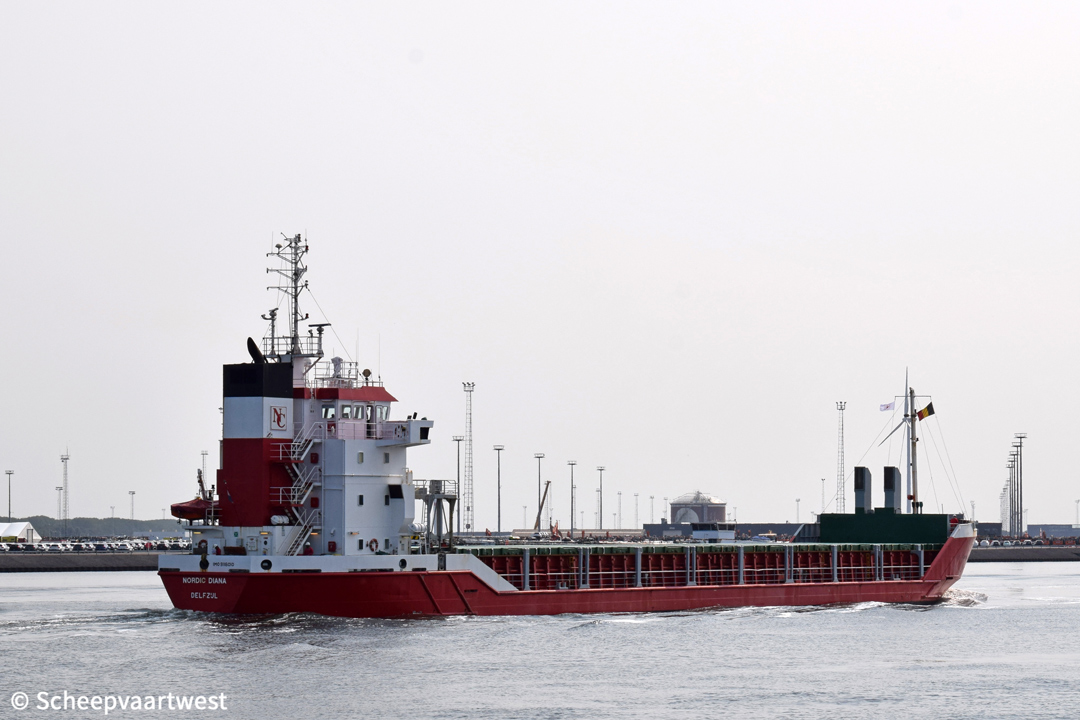

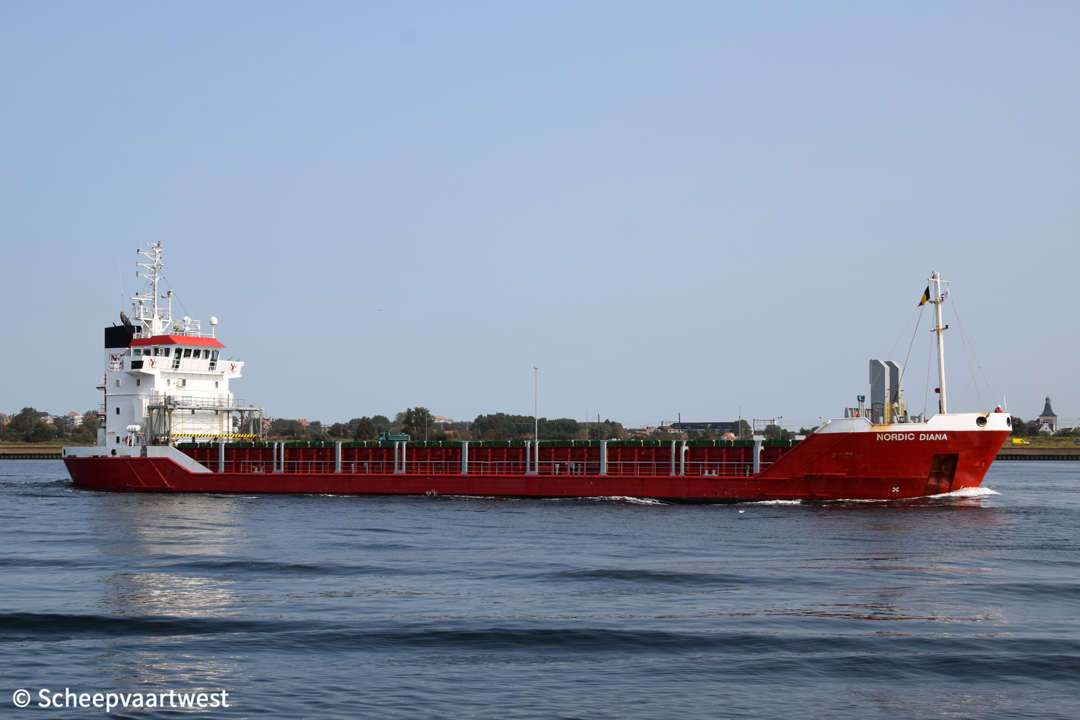

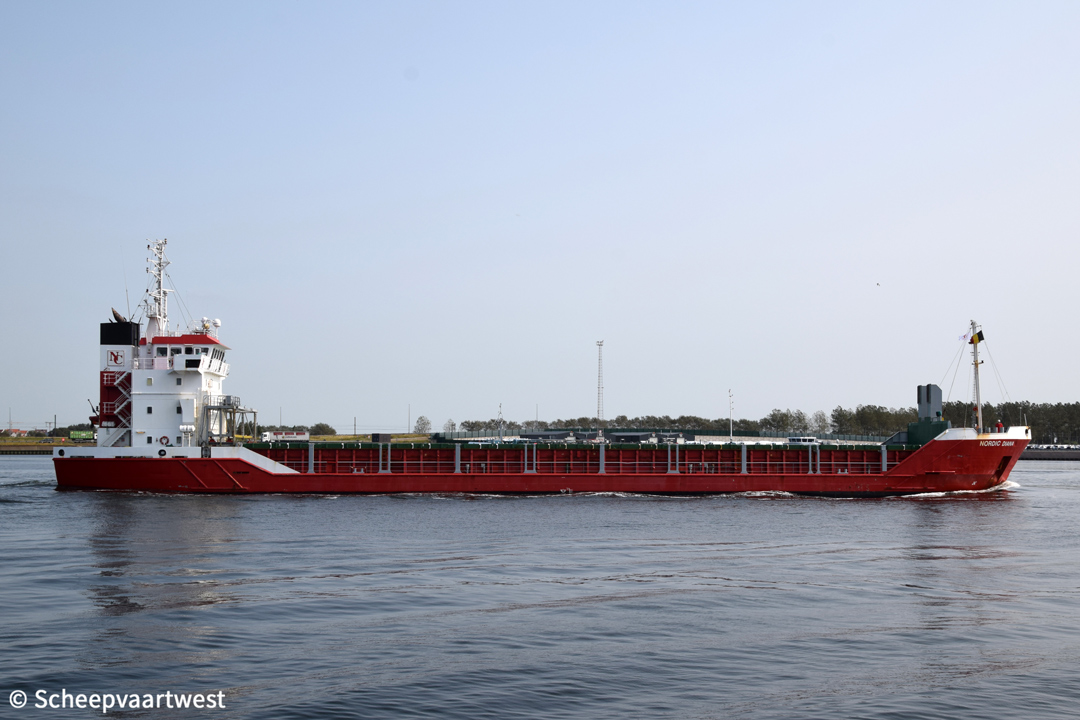

Zeebrugge 11 September 2020 |
 |
 |
 |
||
| Zeebrugge 11/09/20 | Zeebrugge 11/09/20 | Zeebrugge 11/09/20 |
|
Name |
NORDIC DIANA |
|
Previous names |
1996 - 2008 Doggersbank |
|
Type |
General cargo - Multi-purpose dry cargo carrier |
|
IMO-number |
9116010 |
|
Call sign |
PDRF |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.774 t |
|
DWT |
Summer: 4.149 t Winter: 3.950 t |
|
DWCC |
Summer/winter: 4.000 t |
|
NT |
1.548 t |
|
Number of 20ft containers |
On deck: 150 In hold: 111 Total: 261 |
|
Container capacity 14t |
211 |
|
Length |
89,72 m overall 84,98 m between perpendiculars |
|
Breadth |
13,60 m overall |
|
Draught |
Summer: 5,69 m |
|
Air draft |
Max: 28,40 m |
|
Freeboard |
1.215 mm |
|
Depth |
7,20 m |
|
Speed |
12,0 knots |
|
Built |
1996 |
|
Launch date |
25/11/1995 |
|
Date of completion |
05/01/1996 |
|
Builder |
Bodewes Scheepswerf Volharding B.V. Foxhol The Netherlands |
|
Yard number |
326 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull - Double bottom |
|
Movable bulkheads |
2x Traversable bulkheads can be placed in 5 positions |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp MaK 6M453C - 4 stroke single acting 6 cylinder 320 x 420 mm combustion engine 2.200 kW / 2.989 hp at 600 rpm Built: 1995 Manufacturer: Maschinenbau Kiel A.G., Kiel - German Federal Republic |
|
Propellers |
1x Screw propeller controllable pitch - aft at 175 rpm |
|
Electric installations |
2x Plant 380/220 V - 270 kVA 1x Plant 380 V - 365 kVA 1x Plant 380 V - 110 kVA |
|
Shaft generator |
1x 365 kVA / 292 kW at 1.500 rpm |
|
Generators |
2x Main diesel generatorsets each 270 kVA at 1.500 rpm |
|
Emergency generator |
1x Diesel generators 110 kVA at 1.500 rpm |
|
Bow thruster |
1x Transverse thruster fixed JASTRAM propeller - 200 kW, forward |
|
Number of hold |
1x Box shaped Length: 62,89 m Width: 11,00 m Height: 8,34 m |
|
Hold capacity |
Grain / bales: 198.762 ft³ / 5.625 m³ |
|
Timber capacity |
5.400 m³ (hold/deck) |
|
Hold ventilation |
12x Air-changes per hour |
|
Number of hatches |
1 Length: 62,89 m Width: 11,00 m |
|
Hatch type |
Pontoons moved by ship-owned Gantry cranes |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,7 t/m² |
|
Tank capacities |
Water ballast: 1.559,5 m³ Fresh water: 68,9 m³ Fuel oil: 331 m³ Diesel oil: 56,5 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Length: 440,00 m |
|
Lifting equipment |
1x Gantry crane |
|
Crew size |
10 |
|
Manager |
Flagship Management B.V. Farmsum The Netherlands |
|
Previous managers |
01/1996 - 01/2008 Wagenborg Shipping B.V., Delfzijl - The Netherlands 01/2008 - 11/2016 Flinter Management B.V., Barendrecht - The Netherlands |
|
Registered owner |
Nordic Diana B.V. Barendrecht The Netherlands |
|
Previous names & owners |
01/1996 - 01/2008 Doggersbank - C.V. Scheepvaartonderneming Doggersbank, Delfzijl - The Netherlands 01/2008 - 07/2014 Nordic Diana - B.V. Nordic General Partner D., Delfzijl - The Netherlands 07/2014 - 11/2016 Nordic Diana - Flinter Diana B.V., Barendrecht - The Netherlands |
|
Latest data adjustment |
17 October 2020 |
