Malaga, Spain 02 November 2020 |
|
Name |

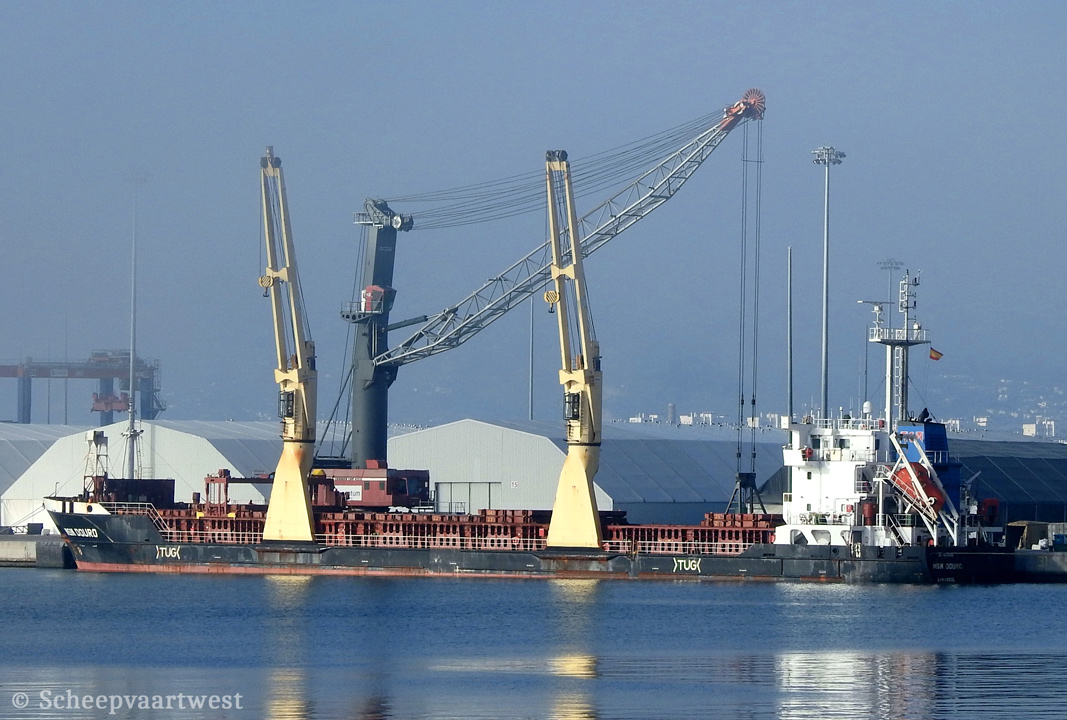

MSM DOURO |
|
Previous names |
2012 - 2012 Dourodiep |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9519028 |
|
Call sign |
5BNJ3 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
4.358 t |
|
DWT |
Summer: 5.732,6 t |
|
DWCC |
Summer: 5.400 t Winter: 5.300 t |
|
NT |
2.525 t |
|
Number of 20ft containers |
In hold: 159 On deck: 84 Total: 243 |
|
Length |
109,02 m overall 102,98 m between perpendiculars |
|
Breadth |
15,63 m extreme 15,20 m moulded |
|
Draught |
Summer: 5,88 m |
|
Air draft |
27,50 m |
|
Depth |
7,90 m to main deck |
|
Speed |
12,4 knots |
|
Built |
2012 |
|
Keel laid |
16/10/2008 |
|
Launch date |
16/11/2011 |
|
Date of completion |
27/02/2012 |
|
Builder |
Rong Cheng Shipbuilding Industry Co., Ltd. Rongcheng China |
|
Yard number |
RC24 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Movable bulkheads |
2x Moveable Bulkheads (2 panels each) |
|
Main engine |
1x Yanmar 6EY26 - 6 cylinder combustion engine 1.990 kW at 750 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
1x 350 kW at 1.500 rpm / 400V, 50Hz |
|
Generators |
3x Deutz/MWM TBD234V8 main diesel each 249 kW at 1.500 rpm connected with generators each 230 kW / 400 Volt 50 Hz |
|
Emergency generator |
1x Deutz/MWM TBD234V6 diesel generatorset |
|
Bow thruster |
1x Kawasaki 300 kW |
|
Number of holds |
2x Cargo holds with full tween deck positions in both holds A partial tween deck (movable bulkheads) of 18,40 m length is on board Hold 1: 29,25 x 12,65 /10,1 x 9,20 m Hold 2: 45,75 x 12,65 x 9,20 m |
|
Cargo hold capacity |
Hold 1: 118.000 ft³ Hold 2: 183.000 ft³ Total: 301.000 ft³ excluding bulk heads |
|
Hold ventilation |
All holds mechanically ventilated / 6 air changes per hour |
|
Tweendeck |
4x Bulkhead panels can be placed as tweedeck of 18,40 m length at any position in hold no. 1 or hold no. 2 |
|
Number of hatches |
2x - 5x Pontoon Moved by electric driven gantry crane from MacGREGOR |
|
Max permitted loads |
Tanktop: 15,0 t/m² Tween deck: 2,40 t/m² Weatherdeck hatchcover: 2,20 t/m² |
|
Tank capacities 100% |
Fuel oil: 257,02 m³ Diesel oil: 58,45 m³ Fresh water: 69,03 m³ Ballast: 2.046 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 40 mm |
|
Cargo gear |
2x Deck cranes - SWL 45,0 t |
|
Crew size |
11 |
|
Manager |
Mastermind Shipmanagement Ltd. MSM House Building Christaki Kranou Street 63 4042 Limassol Cyprus |
|
Registered owner |
Great Coast Shipping Co.: Ltd. c/oMastermind Shipmanagement Ltd. MSM House Building Christaki Kranou Street 63 4042 Limassol Cyprus |
|
Latest data adjustment |
04 November 2020 |
