Malaga, Spain 03 October 2020 |
|
Name |

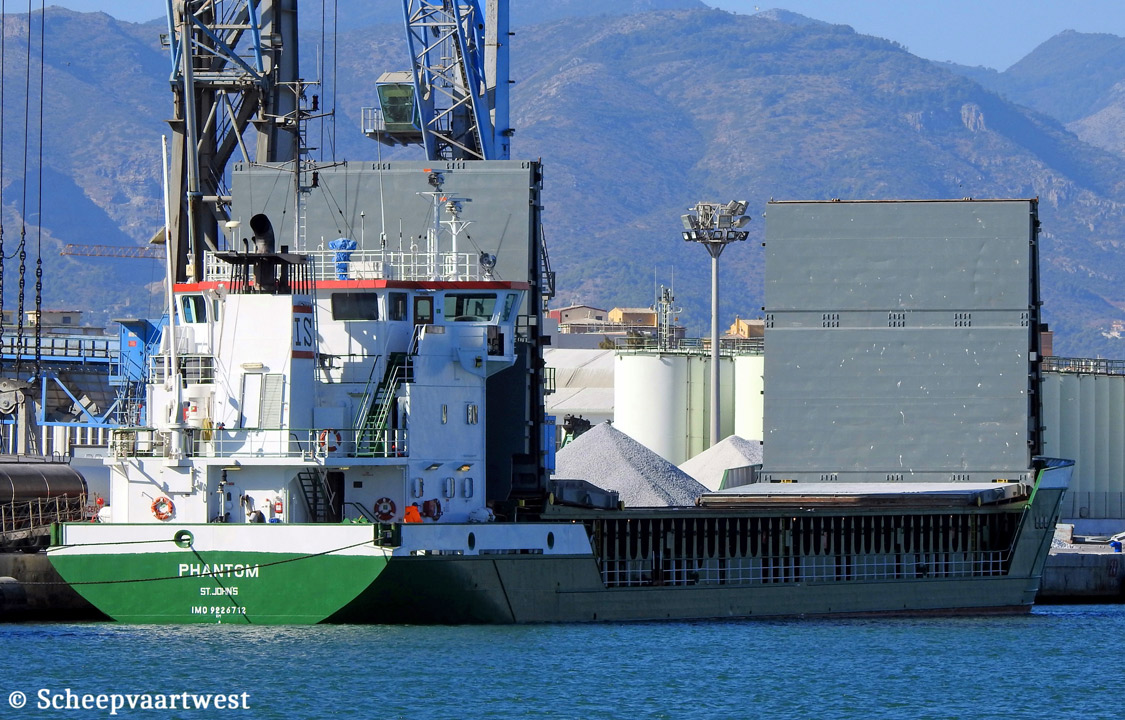

PHANTOM |
|
Type |
General cargo ship - Heavycargo - Equipped for carriage of containers Box Singledecker |
|
IMO-number |
9226712 |
|
Call sign |
V2GZ3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
Si. John’s |
|
Previous flags |
200 - 2017 Gibraltar - Call sign: ZDEH5 |
|
GT |
2.329 t |
|
DWT |
3.220 t |
|
DWCC |
Summer: 3.000 t Winter: 2.900 t |
|
NT |
1.349 t |
|
Number of 20ft containers |
152 |
|
Reefer capacity |
20 |
|
Length |
82,49 m overall 79,20 m between perpendiculars |
|
Breadth |
12,50 m |
|
Draught |
Summer: 5,44 m |
|
Freeboard |
1.272 mm |
|
Depth |
6,70 m |
|
Speed |
Max: 12,5 knots service: 11,5 knots |
|
Built |
2000 |
|
Keel laid |
08/06/1998 |
|
Launch date |
07/09/2000 |
|
Date of completion |
11/11/2000 |
|
Builder casco |
Duplicate Marine Projects Ltd. Gdansk Poland |
|
Builder completion |
Peters Schiffsbau GmbH Wewelsfleth Germany |
|
Yard number |
669 |
|
Hull material |
Steel |
|
Watertight compartments |
4 |
|
Main engine |
1x MAN-B&W-Alpha 6L27/38 - 4 stroke 6 cylinde 270 x 380 mm combustion engine 2.040 kW / 2.772 hp at 800 rpm Builder: MAN-B&W Diesel AS,(Alpha Diesel), Fredenikshavn - Denmark |
|
Propellers |
1x Screw propeller controllable pitch- aft at 224 rpm |
|
Shaft generator |
1x 790 kVA - 632 kW |
|
Generators |
1x Main diesel generatorset 225 kVA - 180 kW - 266 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 183 hp |
|
Bow thruster |
132 kW |
|
Number of holds |
1 55,80 x 10,20 x 8,24 m, last 6,00 m in front narrowing to 5,00 m |
|
Total Capacity of holds |
4.643 m³ |
|
Timber intake |
4.300 m³ |
|
Number of hatches |
1 55,80 x 10,20 m |
|
Max permitted loads |
Tanktop: 12,0 t/m² Hatches: 1,5 t/m² |
|
Tank capacities |
Fuel oil: 221,71 m³ |
|
Crew size |
6 |
|
Operator |
Interscan Schiffahrtsgesellschaft Mbh Raboisen 32 20095 Hamburg Germany |
|
Registered owner |
Phantom Interscan UG (haftungsbeschraenkt) & Co. KG Am Hafen 6 25599 Wewelsfleth Germany |
|
Latest data adjustment |
16 November 2020 |
