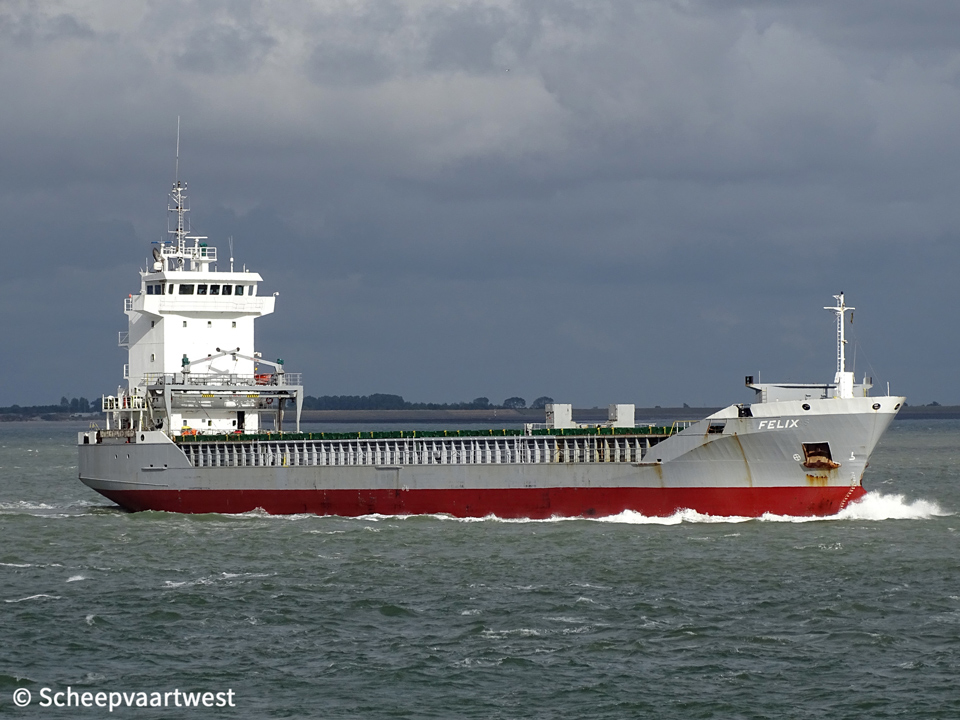

Felix 01

Westerschelde 04 June 2020



Name

FELIX

Previous names

05/1999 - 04/2016 Flintermaas

Type

General cargo, Multi-purpose - Singledecker

IMO-number

9180877

Call sign

V2GW6

Flag

Antigua & Barbuda

Port of registry

St. John’s

Previous flags

05/1999 - 06/2003 The Netherlands, Groningen - Call sign: PBRR

06/2003 - 2009 Netherlands Antilles,Willemstad - Call sign: PJEP

2009 - 2016 The Netherlands, Groningen - Call sign: PBRR

GT

4.503 t

DWT

Summer: 6.359 t

Winter: 6.159 t

NT

2.462 t

Number of 20ft containers

In hold: 163

On deck: 227

Total: 390

Reefer capacity

20

Length

111,75 m overall

105,34 m between perpendiculars

Breadth

14,95 m moulded

Draught

Summer: 6,38 m

Winter: 6,18 m

Air draft

24,80 m

Depth

8,25 m moulded to main deck

Speed

Max: 14,2 knots

Service: 9,5 knots

Built

1999

Keel laid

30/06/1998

Launch date

17/04/1999

Delivery date

21/05/1999

Builder

Scheepswerf Ferus Smit B.V.

Groningen

The Netherlands

Yard number

320

Hull material

shipbuilding steel (standard)

Hull type

Single hull partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

4

Watertight compartments

6

Continuous decks

1

Main engine

1x Wärtsilä 8R32E - 4 stroke single acting 8 cylinder 320 x 350 mm combustion engine 3.280 kW at 750 rpm

Rated power: 2.900 kW

Manufacturer: Wärtsilä Finland Oy, Vaasa/Vasa - Finland

Propellers

1x Screw propeller controllable pitch - aft at 153,0 rpm

Boilers

1x CHO Gekakonus 1,00 m² - 10,0 bar

1x CHR Gekakonus 1,00 m² - 10,0 bar

Electric installations

1x Plant 400 V - 187,5 kVA

1x Plant 400 V - 187,5 kVA

1x Plant 400 V - 565 kVA

1x Plant 400 V - 106,3 kVA

Shaft generator

1x 565 kVA

Generators

2x Caterpillar 3306 diesel generatorsets each 187,5 kVA

Emergency & harbour gen.

1x Valmet diesel generatorset 106,3 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x 250 kW

Number of hold

2

Hold 1: 27,30 x 12,60 x 9,44 m

Hold 2: 53,70 x 12,30 x 9,44 m

Cargo hold capacity

Grain: 9.052 m³

Bale: 8.620 m³

Holds ventilation

6x Air changes per hour

Number of hatches

1

Hatch 1: 27,30 x 12,65 m

Hatch 2: 53,70 x 12,65 m

Max permitted loads

Hatch covers: 1,75 t/m²

Tanktop: 10,0 t/m²

Tank capacities

Ballast: 2.527,50 m³

Fuel: 362,29 m³

Fresh water: 44,40 m³

Anchor equipment

3x Anchors weight each 3.060 kg

Chain length: 495,00 m

Accommodation

For captain and crew of a total 10 persons with heating, ventilation and air-conditioning

Manager

Hermann Lohmann Schifffahrt G.m.b.H. & Co. KG

Boschstrasse 15

D-49733Haren/Ems

Germany

ISM manager

BF Shipmanagement GmbH & Co. KG

An Der Werft 22

1680 Stade

Germany

Previous managers

05/1999 - 2002 Ancora AFS Shipping B.V., Rotterdam - The Netherlands

2002 - 08/2008 Flinter Groningen B.V., Groningen - The Netherlands

08/2008 - 04/2016 Flinter Shipping B.V., Paterswolde - The Netherlands

Registered owner

Hermann Lohmann Schifffahrt G.m.b.H. & Co. KG

Boschstrasse 15

D-49733Haren/Ems

Germany

Previous names & owners

05/1999 - 08/2008 Flintermaas - C.V. Scheepvaartonderneming Flintermaas, Groningen - The Netherlands

08/2008 - 04/2016 Flintermaas - BBS Bulk IV KS - Norway

Latest data adjustment

24 October 2020
