Malaga, Spain 07 September 2020 |
|
Name |

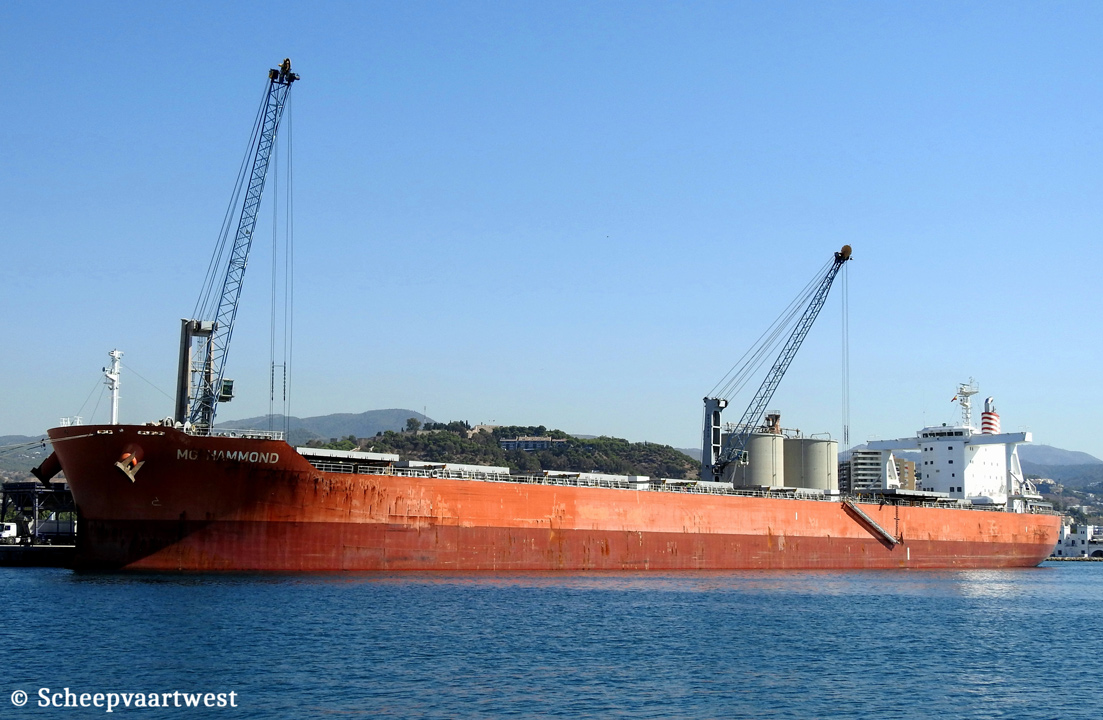

MG HAMMOND |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9748045 |
|
Call sign |
3FMJ5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
45.252 t registered |
|
DWT |
84.858 t |
|
NT |
28.894 t registered |
|
Length |
228,96 m overall |
|
Breadth |
35,00 m moulded |
|
Draught |
Summer: 14,47 m |
|
Moulded L x B x D |
223,00 x 35,00 x 19,90 m |
|
Registered L x B x D |
223,42 x 35,00 x 19,90 m |
|
Freeboard |
Summer: 5.480 mm |
|
Depth |
19,90 m moulded |
|
Speed |
Service: 14,5 knots Max: 15,9 knots |
|
Built |
2016 |
|
Keel laid |
28/04/2015 |
|
Launch date |
02/10/2015 |
|
Date of completion |
15/01/2016 |
|
Builder |
Imabari Shipbuilding Co., Ltd., Saijo Shipyard Japan |
|
Yard number |
8178 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Hitachi 6S60ME-C7 - 2 Stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 9.000 kW at 82,0 rpm Manufacturer: Hitachi Zosen Corporation Ariake Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 570 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 3,30 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 480 kW |
|
Number of cargo holds |
7 |
|
Cargo hold capacity |
Grain: 100.702,88 m³ |
|
Tank capacities |
Fuel oil: 3.141,72 m³ Fresh water: 384,38 m³ |
|
Manager |
World Marine Co., Ltd. Kanpai Building 9F 22-27, Higashi Gotanda 5-Chome, Shinagawa-ku Tokyo 141-0022 Japan |
|
Registered owner |
Taiei Naviera SA |
|
Latest data adjustment |
23 November 2020 |
