Westerschelde 19 June 2018 |
|
Name |

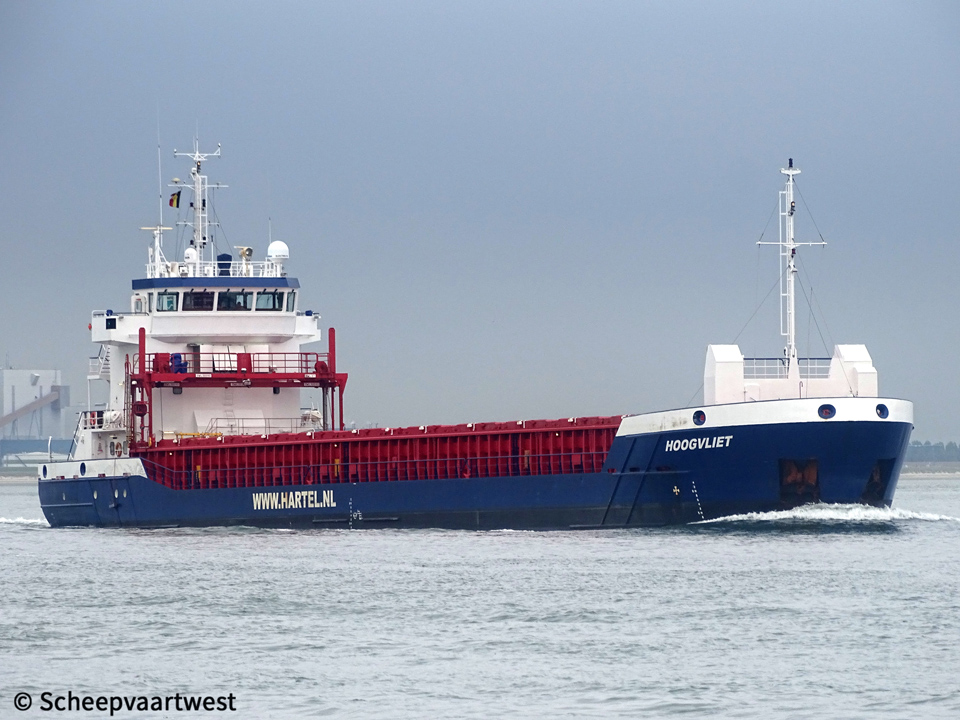

HOOGVLIET |
|
Type |
General cargo ship - Damen Combi Freighter 3850 - Tween/box |
|
Basic functions |
Transport of bulk, steel coils, containers, steel and forest products |
|
IMO-number |
9625231 |
|
Call sign |
PCRO |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.597 t |
|
DWT |
3.850 t |
|
DWCC |
3.300 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
In hold: 108 On deck: 68 total: 176 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,66 m moulded |
|
Draught |
Summer: 5,42 m Ballast: 3,20 m |
|
Air draft |
21,50 m |
|
Depth |
7,00 m |
|
Speed |
Max: 12,3 knots Service: 10,0 knots |
|
Built |
2013 |
|
Launch date |
30/11/2011 |
|
Date of completion |
02/02/2013 |
|
Builder casco |
Damen Shipyards Galati (Santierul Naval Damen Galati S.A.) Galatz Romania Yard number: 1217 |
|
Builder completion |
Damen Shipyards Bergum B.V. Bergum The Netherlands |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable grain bulkheads |
|
Main engine |
1x MaK 8M20C - 4 stroke 8 cylinder combustion engine output 1.520 kW / 2.038 bhp at 1.000 rpm |
|
Propellers |
1x Controllable pitch propeller Diameter: 2.350 mm with nozzle |
|
Shaft generator |
1x 330 kVA - 50 Hz |
|
Generators |
1x Sisu diesel generatorset 175 kVA - 50 Hz |
|
Emergency generator |
1x Sisu diesel generatorset 120 kVA - 50 Hz |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x Fixed pitch propeller 280 kW electrically driven |
|
Number of holds |
1x Boxshaped 62,50 x 10,12 m Height under tween / main deck: 3,95 m |
|
Cargo hold capacity |
185.400 ft³ / 5.250 m³ |
|
Hold ventilation |
Electrically driven hold ventilation for 6 air changes per hour |
|
Number of hatches |
1x Weather deck hatches 62,70 x 10,10 m Height under hatch: 8,43 m |
|
Hatch type |
Steel pontoon hatches with gantry crane |
|
Tank capacities |
HFO: 200 m³ Gas oil: 28 m³ Lub.oil clean :6.7 + 1.9 m³ Dirty oil: 4 m³ Sludge: 4 m³ Sewage: 12 m³ Potable water: 28 m³ Ballast water: 1.375 m³ |
|
Accommodation |
For captain and crew for a total of 8 persons with heating, ventilation and air-conditioning |
|
Manager |
Hartel Shipping & Chartering B.V. Goudhoekweg 14 3233 AM Oostvoorne The Netherlands |
|
Registered owner |
Hoogvliet Shipping B.V. Rotterdam The Netherlands |
|
Latest data adjustment |
28 October 2020 |
