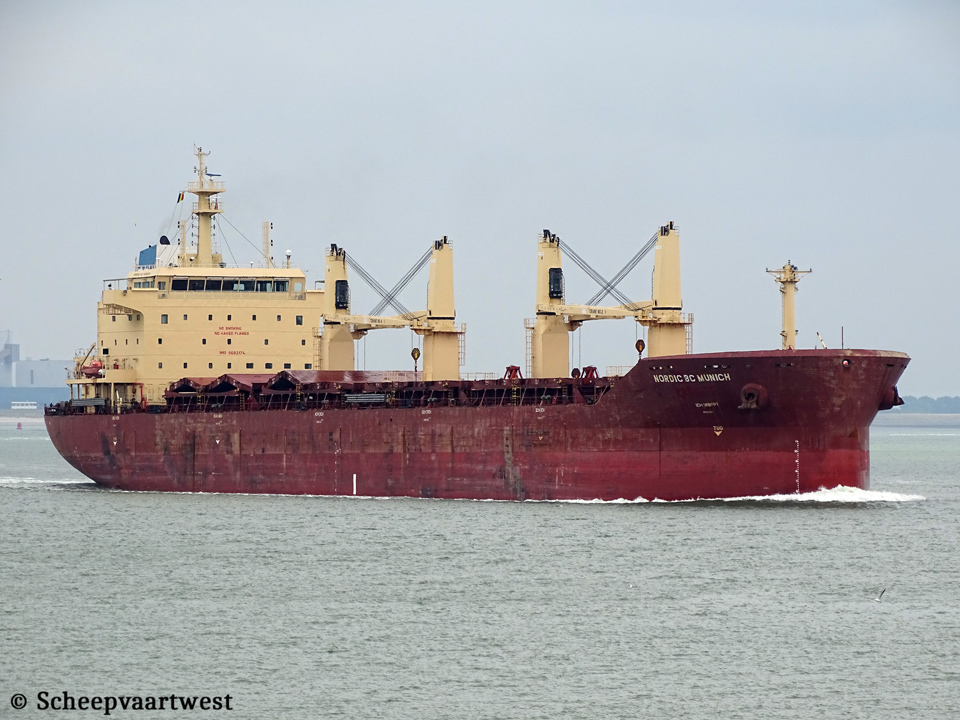

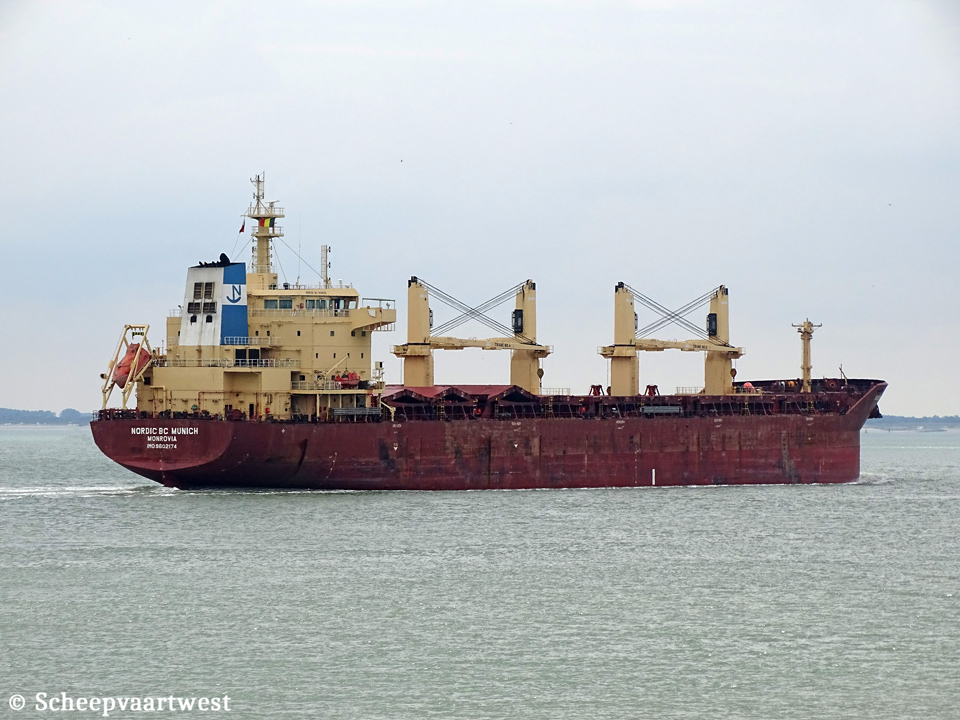

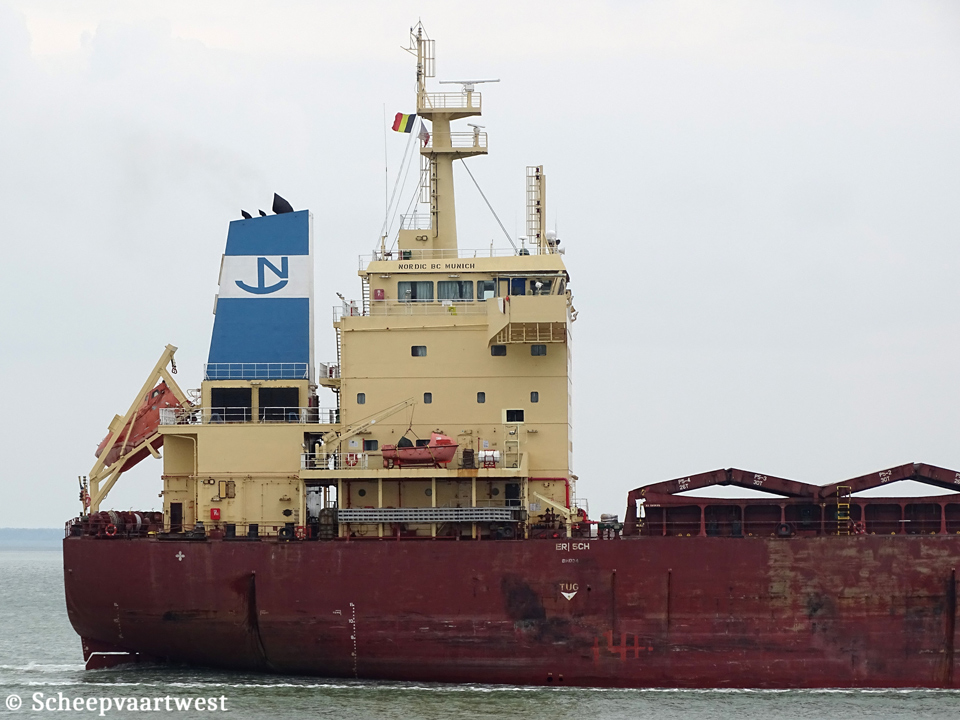

Westerschelde 11 June 2020 |
 |
 |
|
| Westerschelde 11/06/20 | Westerschelde 11/06/20 |
|
Name |
NORDIC BC MUNICH |
|
Previous names |
2012 - 12/2019 Graig Cardiff |
|
Type |
Bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9602174 |
|
Call sign |
D5VU8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2012 - 2012 Bahamas - Call sign: C6ZW2 2012 - 2019 United Kingdom, Cardiff - Call sign: 2FON6 |
|
GT |
24.187 t registered Suez: 25.420,96 t |
|
DWT |
Summer: 35.920,2 t |
|
NT |
12.064 t registered Suez: 22.268,11 t Panama: 21.221 t |
|
Displacement |
46.139,4 t |
|
Length |
180,00 m overall 176,75 m between perpendiculars |
|
Breadth |
29,94 m moulded |
|
Draught |
Summer: 10,10 m |
|
Forecastle |
4.417 mm |
|
Depth |
14.70 m |
|
Speed |
14,2 knots |
|
Built |
2012 |
|
Keel laid |
28/04/2011 |
|
Delivery date |
17/07/2012 |
|
Builder |
Jiang Dong Shipyard No. 9 Jiangdong Road Wuhu City, 241001 China |
|
Yard number |
JD35000-1 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x STX/MAN-B&W 5S50MC-C8 - 2 stroke 5 cylinder 500 x 2.000 mm combustion engine 6.900 kW at 110,0 rpm Manufacturer: STX Dalian Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler (Composite boiler) - 9,0 bar 1x Exhaust gas boiler - 9,0 bar Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x Daihatsu 5DK-20 - 5 cylinder diesel engines each 660 kW connected with generators 600 kW Manufacturer: CSIC Electrical Machinery Science & Technology Co. |
|
Number of holds |
5 |
|
Cargo hold capacity |
46.762 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fresh water: 288,10 m³ Lub oil: 139,79 m³ Ballast: 14.193,30 m³ Fuel oil: 1.548,30 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 2,0 t 1x Provision crane - SWL 3,0 t |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew size |
21 |
|
Manager |
Nordic Hamburg Shipmanagement GmbH & Co. KG Cremon 32 20457 Hamburg Germany |
|
Registered owner |
Condor 227 Schifffahrts-GmbH & Co. KG Ms "Erda" |
|
Latest data adjustment |
07 December 2020 |
