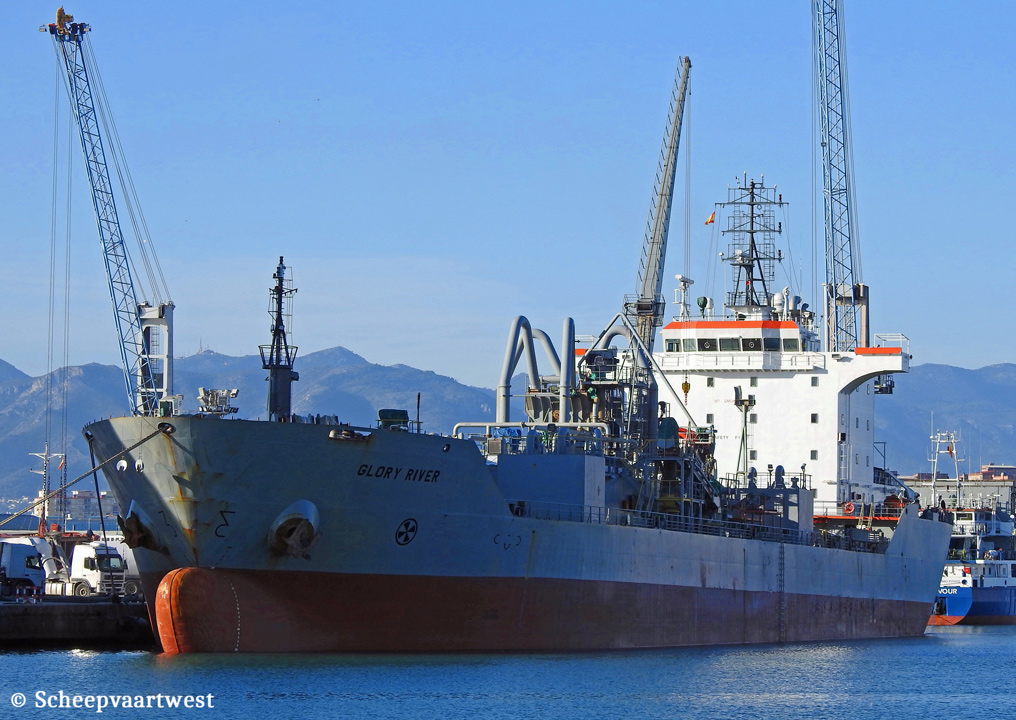

Malaga, Spain 17 January 2021 |
|
Name |
GLORY RIVER |
|
Type |
Pneumatic cement carrier |
|
IMO-number |
9373606 |
|
Call sign |
LADD8 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
2007 - 2017 Republic of Singapore, Singapore City - Call sign: 9VNT9 |
|
GT |
11.951 |
|
DWT |
19.633 |
|
NT |
5.159 t |
|
Length |
145,00 m overall 136,92 m between perpendiculars |
|
Breadth |
25,50 m |
|
Draught |
Summer: 9,05 m |
|
Air draft |
39,28 m from keel |
|
Depth |
12,00 m moulded |
|
Speed |
10,5 knots laden 11,5 knots ballast |
|
Built |
2007 |
|
Keel laid |
06/06/2006 |
|
Date of completion |
17/10/2007 |
|
Builder casco |
PT Nanindah Mutiara Shipyard Batam Indonesia |
|
Builder completion |
Labroy Shipbuilding & Engineering Pte Ltd. Indonesia |
|
Yard number |
T168 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
2x MaK 8M25 - 8 cylinder combustion engine each 2.640 kW total 5.280 kW at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, exhaust heated |
|
Generators |
1x Caterpillar 3412C - 4 stroke 12 cylinder 137 x 152 mm diesel engine 534 kW |
|
Bow thruster |
1x Electrical diver 695 kW / 931 bhp Builder: Kawasaki Heavy Industries |
|
Number of holds |
8 |
|
Cargo hold capacity |
Hold 1 Port: 2.203 m³ Hold 2 Port: 2.153 m³ Hold 3 Port: 2.017 m³ Hold 4 Port: 2.350 m³ Hold 1 STB: 2.203 m³ Hold 2 STB: 2.153 m³ Hold 4 STB: 2.350 m³ Hold 4 STB :2.350 m³ Total: 17.096 m³ |
|
Cargo equipment |
Mechanical loading: 1.000 t/h 2x Pneumatic loading: 800 t/h 1x Mechanical discharge: 400 t/h 4x Pneumatic discharge: 300 t/h total 1.200 t/h 4x Air compressor capacity: 150 t/h total: 600 t/h 4x Filter fan capacity: 240 t/h total: 960 t/h |
|
Tank capacities |
Ballast: 7.244 m³ Fuel (IFO): 760 m³ Fuel (MGO: 127 m³ Fresh water: 232 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Lifting equipment |
1x Crane - SWL 15,0 t |
|
Crew size |
20 |
|
Manager |
OSM Bergen Cement AS Sandsliåsen 46 5254 Sandsli Norway |
|
Registered owner |
KGJ Cement II AS Zander Kaaes Gate 7 5015 Bergen Norway |
|
Group |
Kristian Gerhard Jebsen Skipsrederi AS Zander Kaaes Gate 7 5015 Bergen Norway |
|
Latest data adjustment |
23 January 2021 |
